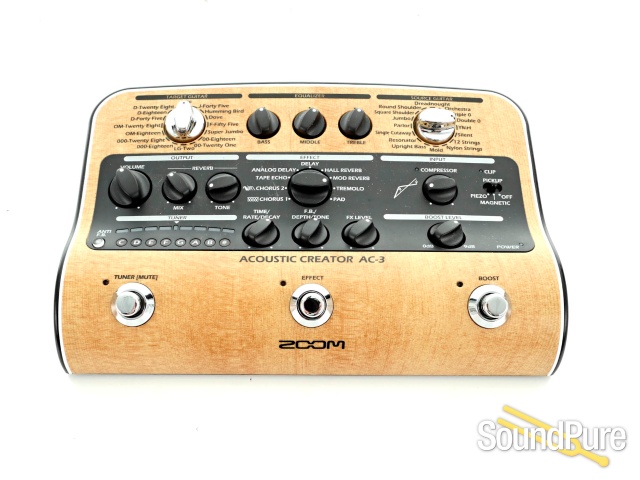

The AC-3 puts essential DI features right at your fingertips. Its high-quality preamp boosts your signal and helps restore your true acoustic sound. Plus, its 3-band EQ lets you quickly make the perfect adjustments to refine your tone.
To add depth and color to your tone, AC-3 also features the best effects we’ve ever designed for acoustics. Choose from 9 different effects such as delay, chorus, and reverb, each of which has with adjustable parameters for fine-tuning your sound.
General
- SOURCE GUITARS
- 16 Types
- TARGET GUITARS
- 15 Types
- EFFECT TYPES
- 9 Types
- SAMPLING FREQUENCY
- 44.1 kHz
- A/D CONVERSION
- 24-bit with 128x oversampling
- D/A CONVERSION
- 24-bit with 128x oversampling
- SIGNAL PROCESSING
- 32-bit
- FREQUENCY CHARACTERISTICS
- 20 Hz – 20 kHz (+1 dB/-3 dB) (10 kΩ load)
Inputs
- INPUT
- Standard mono phone jack Rated input level: -20 dBu Input impedance: 10 MΩ
Outputs
- L/MONO/PHONES
- Standard stereo phone jack (combined line/headphones)Maximum output level: Line +7 dBu (10 kΩ or more output impedance) Headphones 8 mW + 8 mW (32 Ω load)
- R
- Standard mono phone jack Maximum output level: Line +7 dBu (10 kΩ or more output impedance)
- BALANCED OUT-L
- XLR jack Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD) PRE/POST (switchable) GND LIFT (switchable)
- BALANCED OUT-R
- XLR jack Output impedance: 100 Ω (HOT-GND, COLD-GND), 200 Ω (HOT-COLD) GND LIFT (switchable)
Additional Specifications
- EQUIVALENT INPUT NOISE
- 120 dBu
- NOISE FLOOR (RESIDUAL NOISE)
- -100 dBu
- CONTROL INPUT
- FS01 Input
- POWER
- AC adapter: 9 V DC 500 mA center negative (ZOOM AD-16) Batteries: 2 AA (about 3 hrs continuous operation time using alkaline batteries)
- USB
- USB MIDI USB Micro-B
- DIMENSIONS
- 6.22 in (D) X 4.21 in (W) X 2.04 in (H)
- WEIGHT
- 2.5 lbs (Not including batteries)
- OPTIONS
- FS01 footswitch
- Note
- 0 dBu = 0.775 V
