From WesAudio
- 100% analog microphone/line preamp with +28dBu of headroom.
- Class A fully analog – inspired by famous British design based on dual amp topology.
- Microphone gain up to 75dB.

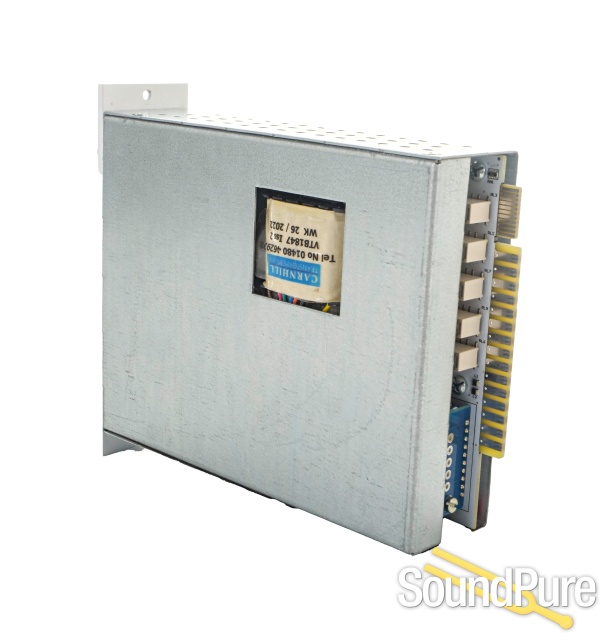

- Carnhill Transformers (input and output).

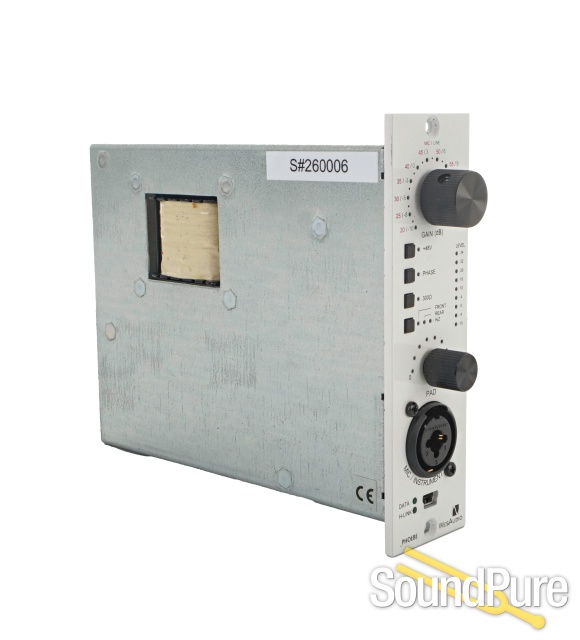

- Output signal metering on the front panel with clip detection.
- Phantom power and phase invert control.
- Switchable impedance input (1200/300Ohm).
- All controls/analog settings are fully manageable via the WesAudio GCon DAW plug-in.
- 15dB OUTPUT PAD – passive output attenuation circuit with 1 dB step. (after the output transformer).
- Front panel XLR/TS socket which supports – HiZ instrument input (TS), line input (XLR), microphone input (XLR).
- Recallable signal source to be either back XLR Socket, or front panel XLR/TS socket.
Frequency response +/- 0.5dB 20Hz-20kHz; -3dB at 50kHz
Distortion 0.005% at 1kHz at +20dBu output
Line input impedance 5.5k ohm bridging
Microphone input impedance 300/1200 ohm
Noise unity gain (better than -100dbU) Max gain +75dB (better than -70dbU)
EIN better than -120dB
Max power consumption 170mA(+16V); 100mA(-16V)
Dimensions 38x133x145mm
