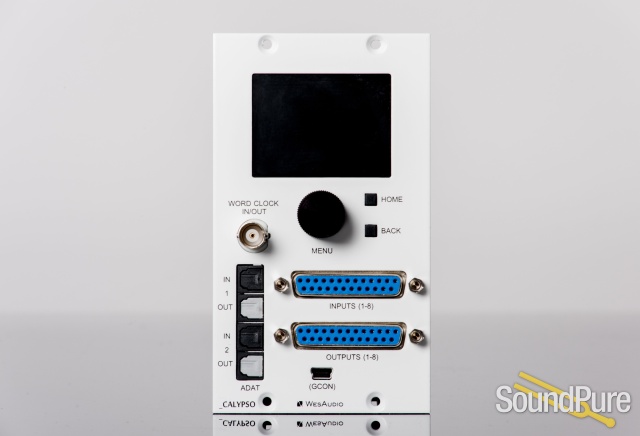

WesAudio _CALYPSO NG500/500-Series AD/DA Converter  From WesAudio

Innovative 500 Series Converter designed to seamlessly bridge the gap between your DAW and your 500-Series Outboard gear!

WesAudio

$999.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $22/mo.

Manufacturer's Description from WesAudio

Standard 500 chassis support!



_CALYPSO is designed to work with standard 500 series enclosures, in that case DB-25 connectors on the front panel can be used to route audio signal to and from chassis.

DB-25 connectors can be also used to route audio signal from and to outboard gear!



Convinient Plug-in for I.A.C. recall and more!



_CALYPSO as all ng500 units is integrated with VST2/VST3/AAX/AU plug-ins. While using with a _TITAN it allows to manage I.A.C. connector in other words it manages input source to each module to be either back XLR “IN” socket, or I.A.C. direct connection to _CALYPSO. This gives You totally recallable solution to route your signal differently based on DAW session. For more information please refer to examples section below! Plug-in supports:



Features

 ♦ Convinient metering,

 ♦ Full unit control,

 ♦ I.A.C. recall and management!

 ♦ Sample rate selection based on DAW session

 ♦ 24bit conversion

 ♦ Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)

 ♦ Ultra low jitter clock

 ♦ Word clock IN/OUT

 ♦ Full integration with _TITAN via IAC connector (Just ADAT cables are need to route all signal to and from chassis)

 ♦ Two DB25 connectors allows integration with any 500 series chassis

 ♦ Two converter reference levels +8dBu/-10dBV

 ♦ LCD screen with channel metering

For more information please refer to manual!



LCD screen with metering!



Calypso LCD screen will allow You to see all configuration options and manage the unit.

1) Channel numbers

2) Metering – _CALYPSO supports very fast and accurate PPM metering

3) Clip indicator.

4) Currently active Sample Rate.

5) Source of Sample Rate configuration

6) Clock Source

7) Clock sync status

8) H-LINK – indication if DAW plug-in is connected to this particular hardware instance.

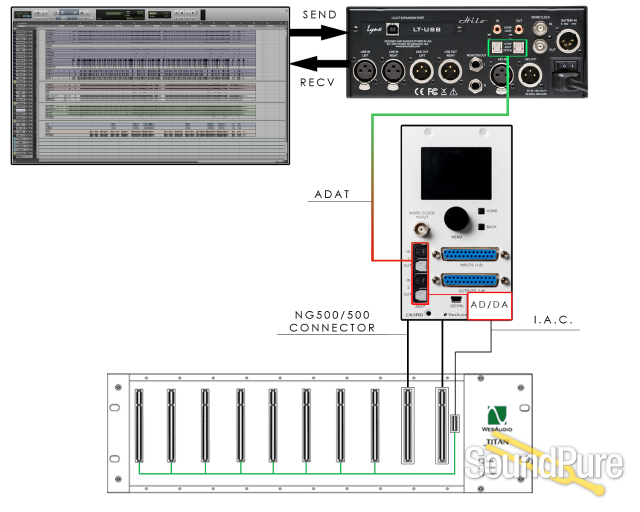

_CALYPSO used with _TITAN chassis features extremely convinient connectivity!

WesAudio

About Manufacturer

WesAudio is a manufacturer of professional audio equipment. By utilizing the latest technology, introducing unique design solutions as well as using measuring devices such as Audio Precision, Agilent, Tektronix, Fluke, we are proud to present the first devices available in the sales offer of WesAudio.We strive to assure that our products are of high quality and precision. We provide full warranty and service of all the equipment available for sale.

Specifications

Power consumption: 150mA per rail

Dimensions: 76x133x158mm

Warranty: 2 years

Inputs(ADC):

Freq. response – 20Hz-20kHzm +/- 0.1dB

THD+N (unweighted): -108dB (0.0004%)

Dynamic range (unweighted): 116dB

Gain Settings: +4 dBu / –10 dBV (selectable per input)

Maximum Input Level: (+4 dBu) +20 dBu

Input Impedance: 10K Ohms

Connector type: DB25/IAC

Outputs(DAC):

Freq. response – 20Hz-20kHzm +/- 0.1dB

THD+N (unweighted): -105dB (0.0005%)

Dynamic range (unweighted): 115dB

Gain Settings: +4 dBu / –10 dBV (selectable per output)

Maximum Output level: (+4 dBu) +20dBu

Output Impedance: 100 Ohms

Connector type: DB25/IAC
