WesAudio ngLeveler 16-Channel Automation System  From WesAudio

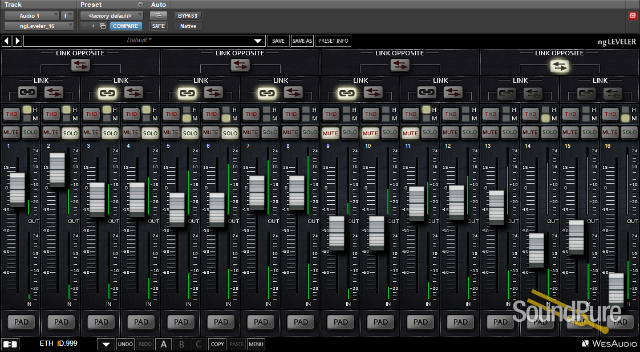

Dedicated plugin control allows to recall and automate your analog signals with ease!

HUI Control!

ngLEVELER is fully compatible with HUI, that means most of its functions are manageable directly from HUI controller. To do so, it is enough to connect HUI controller to PC/MAC where ngLEVELER is available (so it is either connected to same machine via USB or when Ethernet connection is used, it is in the same network). Advantage of this approach is, that it is not necessary to run any application (DAW plugin) to control ngLEVELER from your HUI controller, it is enough to log into your operating system and you are good to go! There are few configuration options:

1. HUI control surface to ngLEVELER – this function exclusively uses HUI controller to manage ngLEVELER parameters, in this mode HUI control surface can’t be used with DAW.

2. HUI control surface to ngLEVELER with DAW mediation – this mode works exactly as above, with few differences

– All transport section, special functions are mediated to DAW,Fader section of HUI controller can be toggled via Function Key between: ngLEVELER control

– DAW control.

3. ngLEVELER as HUI device – in this mode ngLEVELER acts as HUI controller, it means that it can be controlled by first 16 faders in your DAW session.

Convinient connectivity!

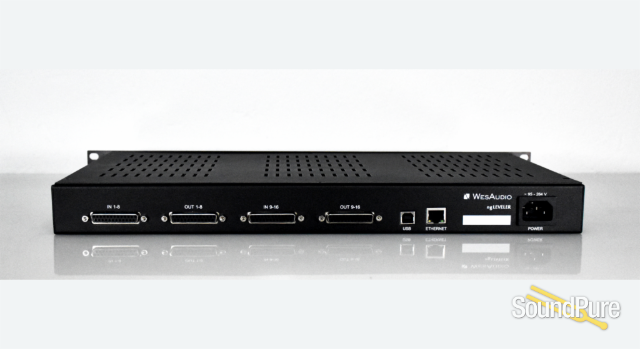

ANALOG: DB-25

DIGITAL CONTROL: USB or ETHERNET

THD – ADD COLOR TO YOUR MIXES on each channel!

THD stands for “Total harmonic distortion” and it allows to saturate your signal with beautiful analog color.

ANALOG AUTOMATION

I’m sure all of us wanted to use different device settings based on song section. Now it is possible! Just draw automation lines in your DAW and your analog device will follow!

And remember, you can use your HUI controller to record automation TO your DAW!

Summing stage automation

ngLEVELER can be integrated in any spot in analog chain which requires signal level management or automation. One of such situation is level management or automation of signal which goes out from our outboard gear to the summing stage. This gives us few very important benefits:

POST Compression automation or level management – changing signal level which goes out from our converter (DAW automation) will cause our compressor to behave differently. This makes it impossible to automate, and is quite problematic situation to handle even with simple signal level balance changes. In this setup we can keep our summing stage signal level at same level, and leave automation and signal level management to ngLEVELER so it can be easily recalled upon session load!

OUT signal management and automation – all outboard gear have a sweet spot which usually depends on a signal level which comes in. In most cases we don’t want to automate signal going in, but signal which goes out from the device. With ngLEVELER we can easily manage this signal: not to clip next analog stage, OR automate it when needed!

Analog outboard drive

In this scenario we can configure our stereo processing before and after outboard gear, and link those channels in an opposite way. So while increasing level on the input of our outboard processor, it will automatically decrease on its output before hitting further stage. So we can easily find a sweet spot of our processor which can be fairly high for some vintage gear.

Recording session management

Studios of each size need some centerpiece which will help to manage recording and mixing session. Using ngLeveler in such situations, allows to precisely set levels which will hit A/D converter, add some analog saturation, and using “Solo and Mute” buttons manage our sessions with ease. Benefits:

-Signal level management going IN to A/D converter, with ngLEVELER 6dB PAD and +24dBu of headroom, it is very easy to support very hot signals coming from our microphone preamplifiers.

-Each session level signals can be easily recall upon session load!

Main features summary:

 ♦ 16 channels of analog automation with total recall

 ♦ +24dBu of headroom

 ♦ 6dB passive attenuator (PAD) for better integration with high level signals

 ♦ Very low noise and distortion – THD+N < 0.01%

 ♦ MUTE and SOLO for each channel

 ♦ HUI controllers integration

 ♦ 16 channels of Proprietary THD

 ♦ IN and OUT (before and after signal leveling) metering fully integrated with DAW plug-in

 ♦ Flexible DAW/Live plug-in control for instant recall

 ♦ DB-25 analog connectivity

 ♦ Management via Ethernet or USB

Fully digitally controlled and isolated analog circuit,

Full automation record via HUI

Free software and firmware upgradesMain features summary:

16 channels of analog automation with total recall

+24dBu of headroom

6dB passive attenuator (PAD) for better integration with high level signals

Very low noise and distortion – THD+N < 0.01%

MUTE and SOLO for each channel

HUI controllers integration

16 channels of Proprietary THD

IN and OUT (before and after signal leveling) metering fully integrated with DAW plug-in

Flexible DAW/Live plug-in control for instant recall

DB-25 analog connectivity

Management via Ethernet or USB

Fully digitally controlled and isolated analog circuit,

Full automation record via HUI

Free software and firmware upgrades
