From Warm Audio
PRODUCT DESCRIPTION & EXTERNAL SPECS

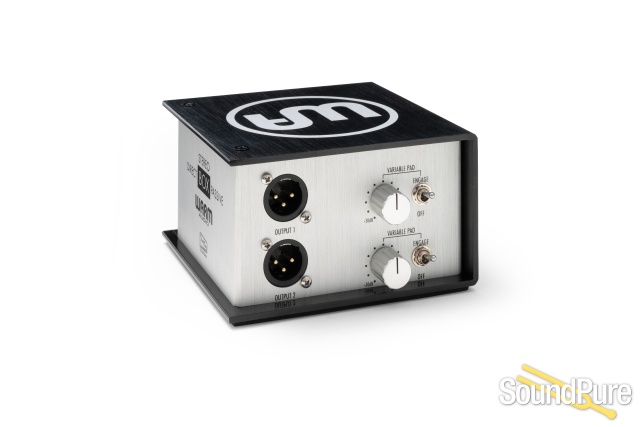

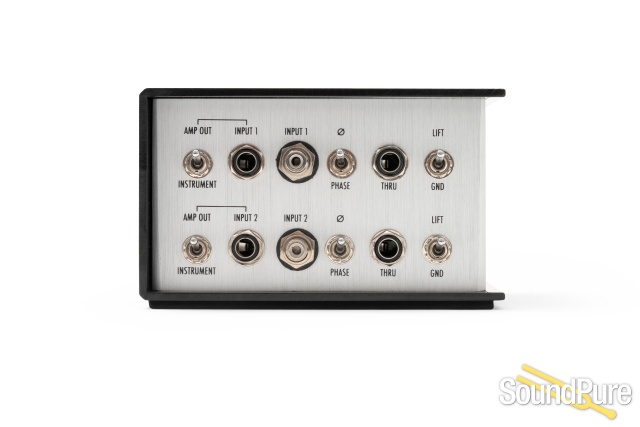

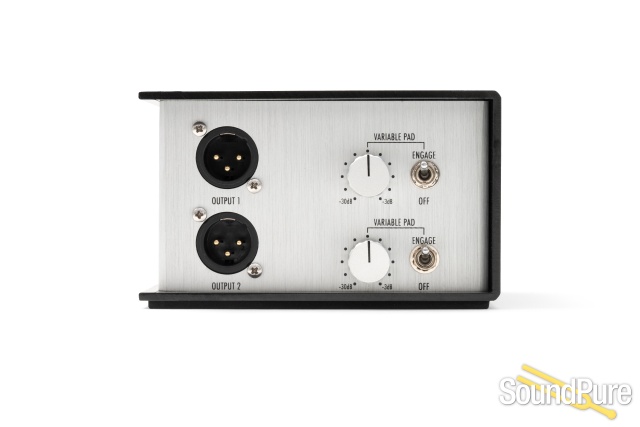

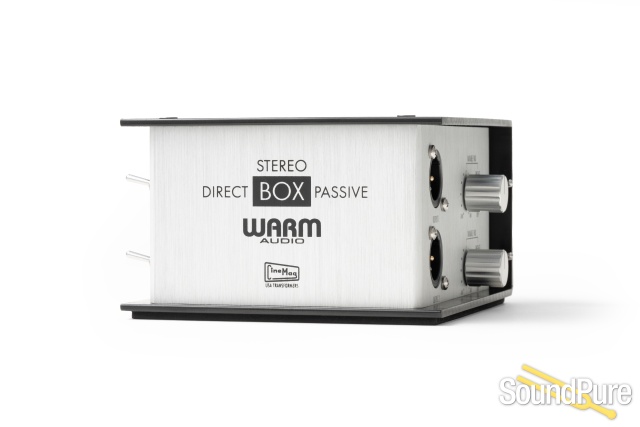

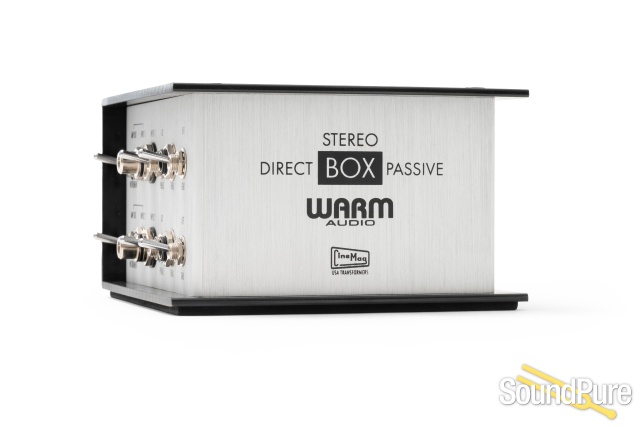

Transformer-Balanced Stereo Direct Box (Active or Passive)
Converts Instruments To Mic-Level Signals Without Signal Degradation
Ideal Solution For Plugging Your Instrument Direct Into Any Mic Pre
Rugged Aluminum Construction
- Pad
- Variable From -3dB To -30dB
- Measurement
- 5" X 5-1/2" X 2-7/8"
- Active Only
- Selectable active/passive switch to boost weaker signals
COMPONENTS & INTERNAL SPECS
Custom-Wound CineMag USA Output Transformer
Top-Quality Class-A Components With Gold-Plated Traces On Circuit Board
- Active Only
- Power: 48v Phantom. Can Also Be Used Passively
PERFORMANCE SPECS
- Balanced Output
- 600 Ohms, Mic Level
- Input Impedance
- 1 Meg Ohms
- Active THD
- .01% From 20 Hz To 50 Hz. Less than .003% From 50 Hz To 20 kHz
- Passive THD
- .01% From 20Hz To 50 Hz. Less Than .004% From 50 Hz To 20 kHz
- Active/Passive Frequency Response
- 10 Hz To 100kHz +/- 0.5db
