Warm Audio Direct Box Active  From Warm Audio

Stunningly Transparent Direct Box from Warm Audio!

Warm Audio

$199.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $17/mo.

Manufacturer's Description from Warm Audio

Whether you play guitar, bass, keyboards or another stringed instrument, you'll need a direct box that won't diminish your instrument's tone, like the Direct Box Active and Direct Box Passive from Warm Audio.  Every aspect of our direct boxes are designed for maximum sonic integrity, from the custom-wound CineMag USA transformer to the rugged metal knob and switches.  You can expect warm, rich tone even after long cable runs, and the extruded aluminum enclosure ensures a long life span.  When you need to convert an instrument-level signal to mic-level, with sonic quality as your top priority, you'll be well-served with the Direct Box Active and Direct Box Passive from Warm Audio.



Built around world-famous CineMag USA Transformer topology and engineering, like no other DI Boxes in the world. Constructed with top-tier discrete components housed in rugged aluminum chassis' that include switches, knobs and connectors that are all designed to withstand heavy abuse on the road or in the studio.



LIKE NO OTHER DI BOXES

The Direct Box Active & Passive by Warm Audio are stunningly transparent. It will not diminish your instrument's original sound or tone in any way...other than making it sound better.



NEW DI BOX EXPERIENCE

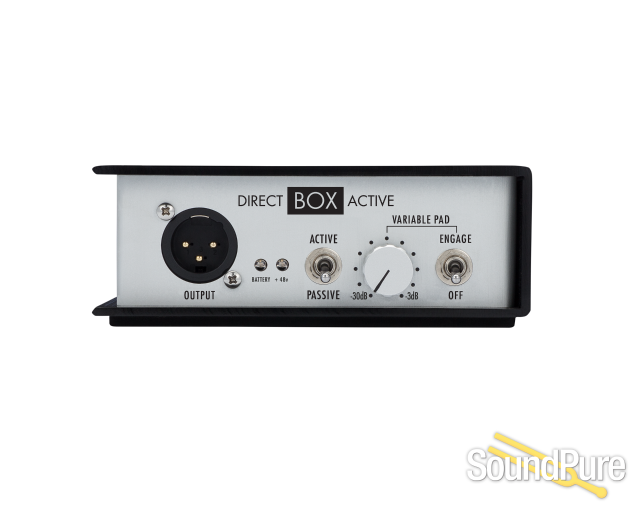

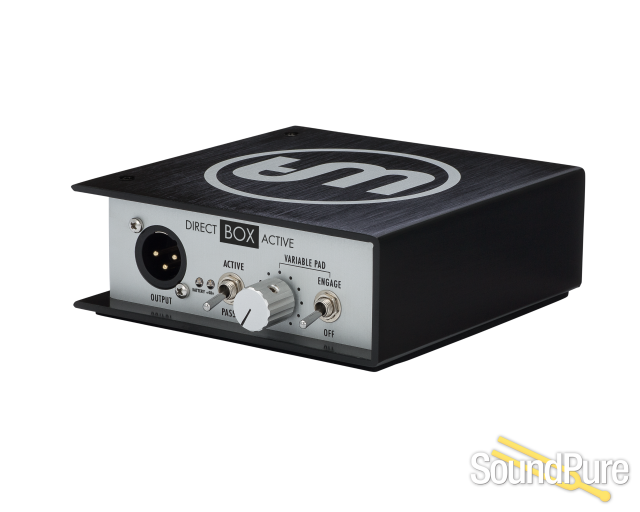

Rare versatility of having an onboard variable pad which attenuates your input signal anywhere from -3dB to -30dB.  This allows you to easily tame any instrument's input source.



TYPICAL APPLICATIONS FOR A DI BOX

Connecting electronic instruments such as guitar, bass, keyboard, or drum machines directly to a PA or recording system. Simply put, a DI box converts the high impedance, unbalanced output signals to low impedance, balanced output signals. By doing so, the instrument signals are now converted to the proper voltage level for the PA or recording system - which greatly reduces and/or eliminates connections which could cause tonal shifts and distortion.



DIRECT BOX ACTIVE vs. DIRECT BOX PASSIVE

Direct Box Active is best for instruments with passive pickups, especially acoustic instruments.  The Direct Box Active can also operate in "passive" mode. Direct Box Passive is best for balancing the signal of instruments with active electronics, but still performs extremely well on passive pickups by producing a frequency range that exceeds the bandwidth of most passive DI boxes on the market.

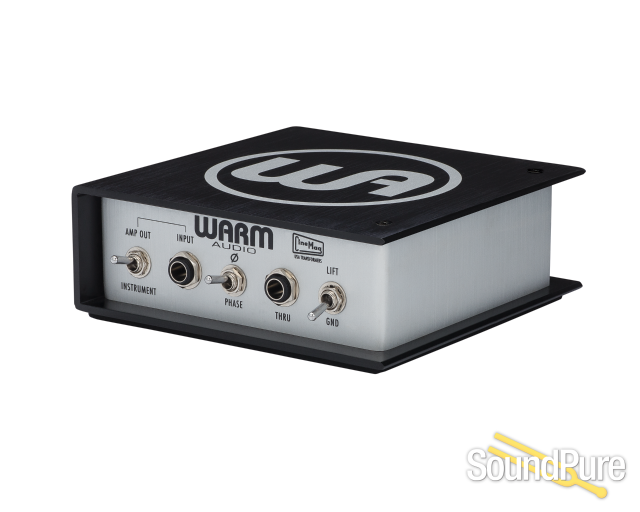

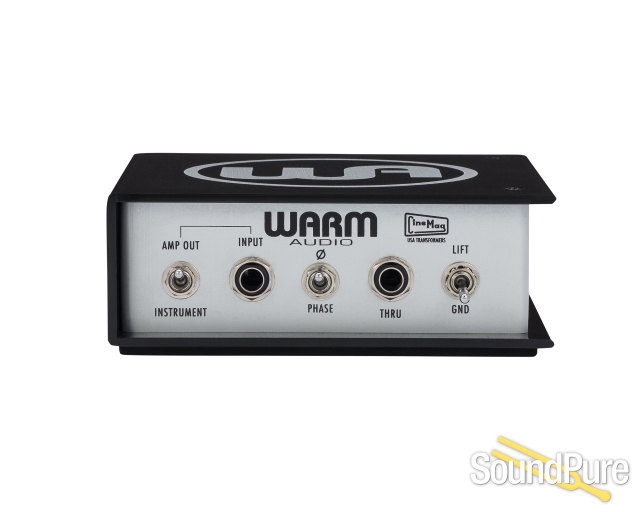

DIRECT BOX ACTIVE - CONVENIENCE JACK

Both of our Direct Boxes offer a Thru-put jack that is jumpered to the input jack. It is a convenience jack allowing you to send your instrument's signal to a second place in addition to the live mixer or recording device. Our Direct Boxes can also take a recorded signal at line level and send it to another line input while simultaneously sending signal out of the XLR mic level output of the Direct Box.

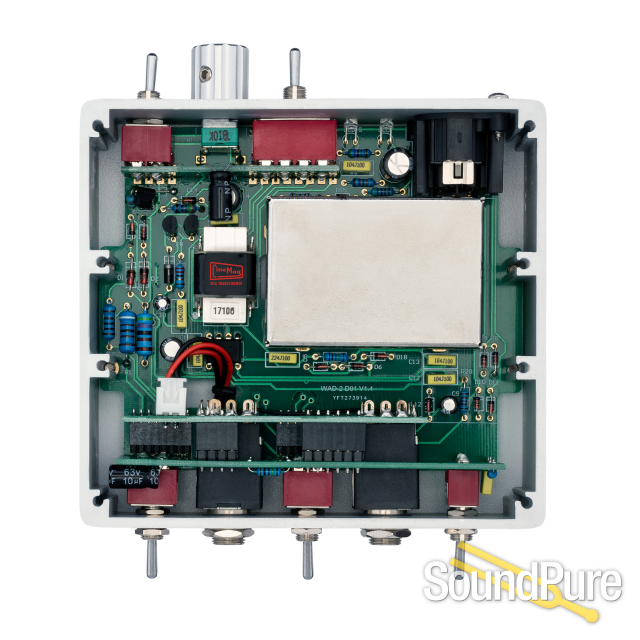

A LOOK INSIDE

Every aspect of our Direct Boxes are designed for maximum sonic integrity, from custom-wound CineMag USA transformers, to their metal switches and connectors, to their gold-plated circuit traces. You can expect warm, rich tones coming from these small, yet extremely rugged Direct Boxes.

Warm Audio

About Manufacturer

Warm Audio's goal is to put high-end gear in the hands of the world’s greatest artists, talent deserves to be properly expressed. Many great musicians are never heard in the right light due to budget restrictions, Warm Audio hopes to change this by bringing fully professional designs to all studios at affordable prices. Don't let our price tags fool you, all of our products have completely discrete signal paths and feature custom USA made CineMag transformers that are found in only the best designs in pro audio.

I am asked often how Warm Audio is able to produce such high quality gear at affordable prices, many assume corners must be cut somewhere.  My answer to this question continues to be "NO".  Warm Audio stays true to original discrete schematics and does this without cheapening components such as our continued use of world class Reichenbach/CineMag transformers.

Specifications

• Custom-wound CineMag USA transformer.

• Converts instruments to mic-level signals without signal degradation.

• Ideal solution for plugging your instrument direct into any mic pre, mixer or recording device.

• Top-quality discrete components with gold-plated traces on circuit board.

• Rugged aluminum chassis construction.

• Pad: Variable from -3dB to -30dB.

• Balanced Output: 600 ohms, mic level.

• Input Impedance: 1 Meg Ohms.

• THD: .01% from 20Hz to 50Hz. Less than .003% from 50Hz to 20kHz.

• Frequency Response: 10Hz to 90kHz +/- 0.5dB.

• Linear Performance: +/- 0.05dB 20Hz to 50kHz.

• Power: 48V Phantom or two 9V batteries. Can also be used passively.
