Voodoo Lab Pedal Power ISO-5 Power Supply  From Voodoo Lab

Feed your effects the power they need and deserve! All isolated outputs for the best performance possible with no ground hum!

Voodoo Lab

Available for Special Order

See something you like? This item is gone, but not forever. It can be special ordered, and even customized!

We can get it fast!

Because of our special relationship with Voodoo Lab we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.

Want to know when one lands?

Notify Me

Want to discuss a special order?

What We Think

The Iso-5 is the perfect supply for a grab-n-go board - it will fire up 5 pedals in a flash and even has the option to run an output at 18v for higher headroom and maximum performance. VooDoo has made their name upon great effects and power, and the Iso-5 is surefire proof of their craft mastery.

Manufacturer's Description from Voodoo Lab

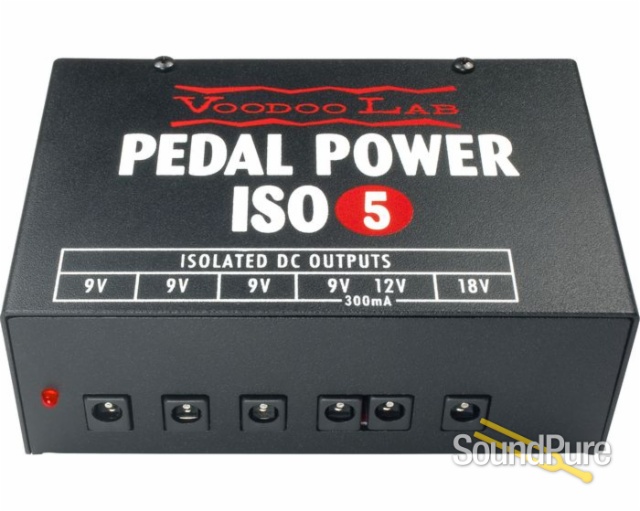

Pedal Power ISO-5 is an isolated power supply for powering guitar pedal effects and accessories. It's the ultimate compact solution for smaller pedalboards, rack shelves, or even as an additional power supply for larger boards. With five isolated, filtered and regulated output sections, ISO-5 keeps even the most sensitive vintage and boutique analog pedals dead quiet.

Pedal Power ISO-5 includes a high-current output which will properly power modern digital power-hungry effects like those from Eventide, Line 6, and TC Electronic. There's also a dedicated 18V output for those pedals which need the higher voltage for extra headroom.

Designed to meet the needs of professional users, Pedal Power ISO-5 will provide clean, consistent power, even with the poor AC line conditions often found on stage. Completely isolated output sections eliminate ground loops and unwanted interactions between effects, resulting in lower noise and noticeably improved tone.

Voodoo Lab

About Manufacturer

Voodoo Lab has designed and manufactured professional electronics for recording and touring musicians since 1986. Rugged, reliable and handmade from the finest components, every product is hand built one at a time in our Northern California facility. Created and built by musicians for musicians, all Voodoo Lab products deliver pure, richly detailed tones that can be heard on the biggest stages worldwide.

Whether you’re a stompbox junkie, or putting together the ultimate programmable rig that incorporates rack gear and vintage pedals, Voodoo Lab can help you achieve the sounds you’re looking for.

Specifications

Pedal Power ISO-5 Specifications

Input
Detachable IEC (computer-type) line cord
120V 50/60Hz (North America model)
100V 60Hz (Japan model)
230V 50/60Hz (Europe/Australia model)

Model and input power are marked on the bottom of unit.

Outputs
5.5x2.1mm barrel connectors center negative
Short circuit protected

9VDC (3) - 100mA
9/12VDC - 300mA
18VDC - 100mA

Included Cables
5.5x2.1mm right angle barrel connectors (4)
5.5x2.1mm right angle to straight barrel connector (1)
5.5x2.5mm right angle red barrel (1)
3.5mm right angle mini plug (1)

For information on additional cables, go here.

Physical
4.9" wide x 3.4" deep x 1.8" tall (124 x 86 x 44 mm)
Weight: 1.24 lbs (0.56 kg)

Special
Toroidal power transformer

Warranty
5 years*
