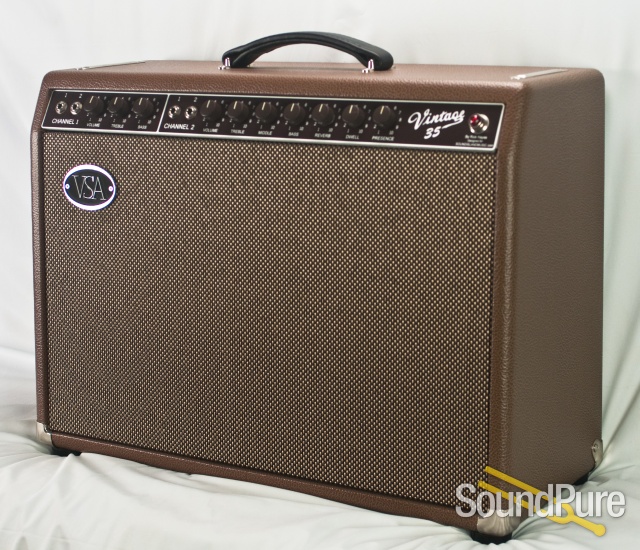

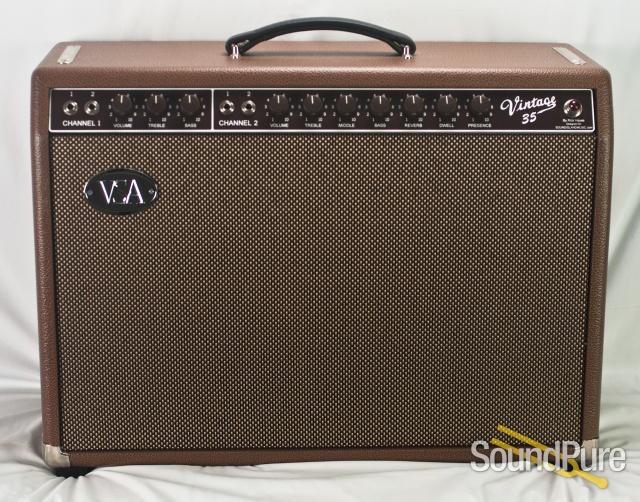

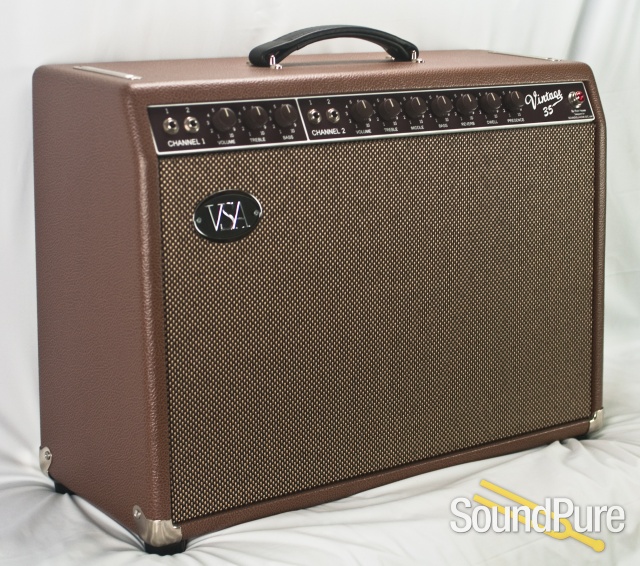

The Vintage Series is inspired by all of your favorites of the Black Face era amps of the mid-60’s. We have done nothing to change the tone, as we feel Leo Fender got it right! We use only top quality components in building each and every amplifier. Optional features are available. See individual models on our Store page.
Specifications
- Circuitry
- Black Face AB763
- Power Handling
- 35 Watts into 8 Ohms
- Inputs
- 2 channels; 4 Inputs (2 per channel)

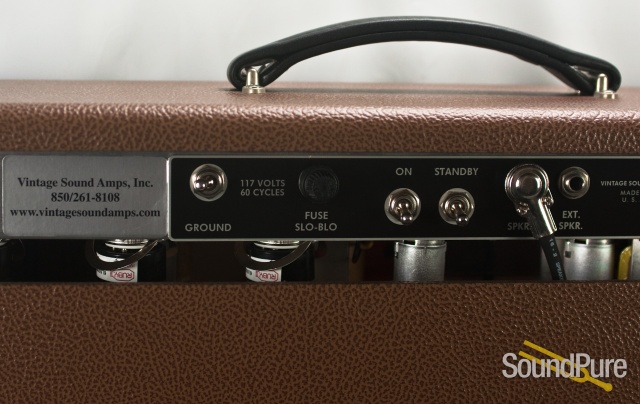

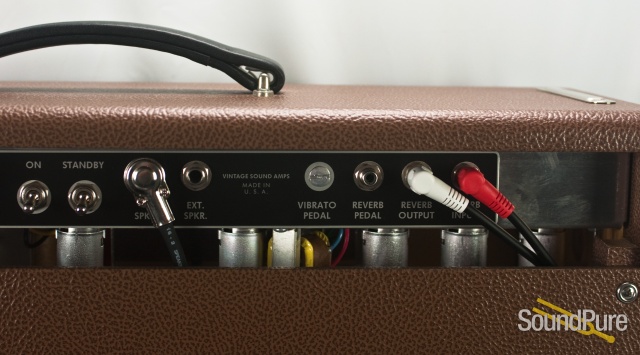

- Auxiliary Inputs
- RCA Footswitch Jack
Extension Speaker Jack
External Speaker Jack
Controls

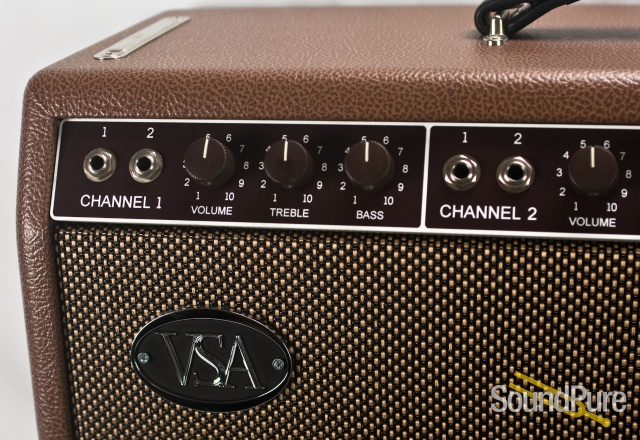

- Channel #1
- Volume, Treble, Bass

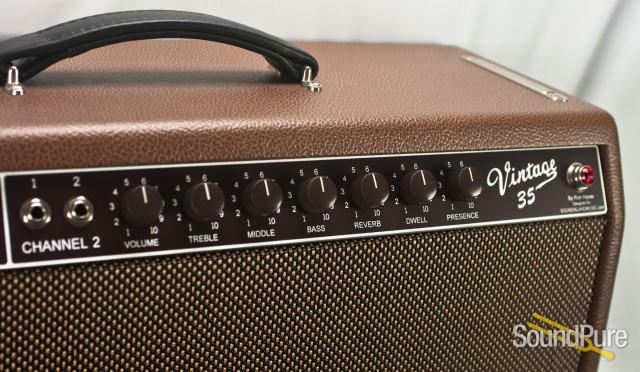

- Channel #2
- Volume, Treble, Middle, Bass, Reverb, Dwell, Presence
Hardware
- Cabinet Material

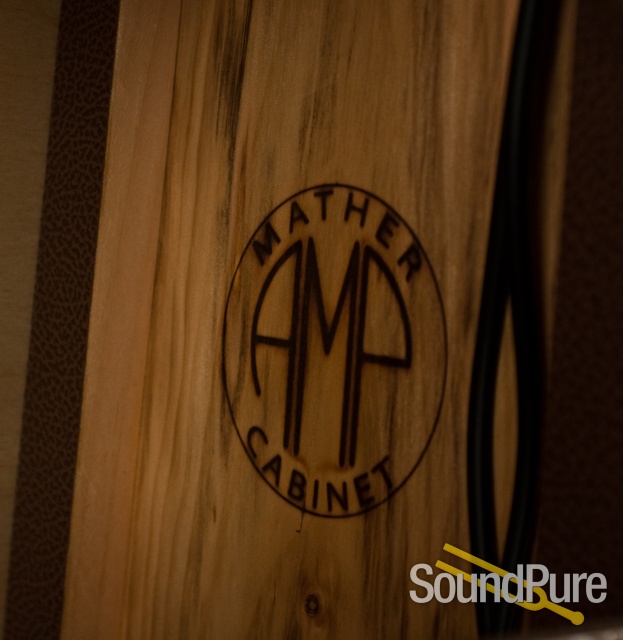

- Solid Pine Cabinet w/ Birch Plywood Baffle & upper and lower back panel
- Pilot Light Jewel
- Blue (other colors available)
- Knobs
- Chicken Head or Barrel Head
- Handle
- Leather Handle
- Effects
- Tube Driven Spring Reverb

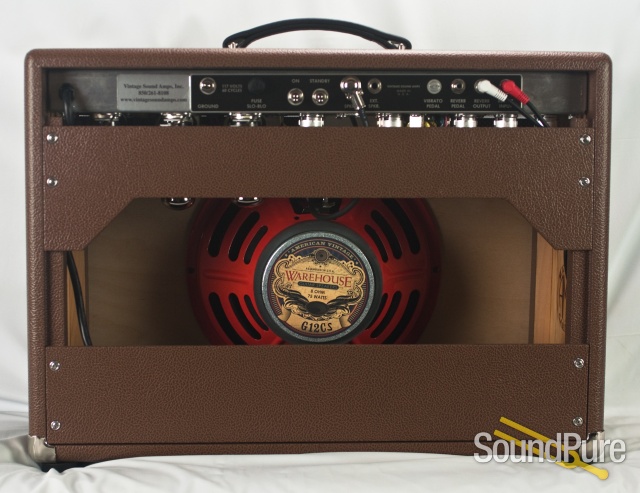

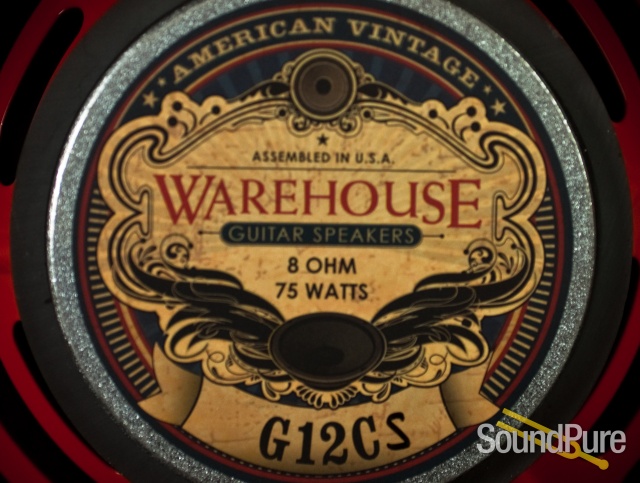

- Speakers
- See options

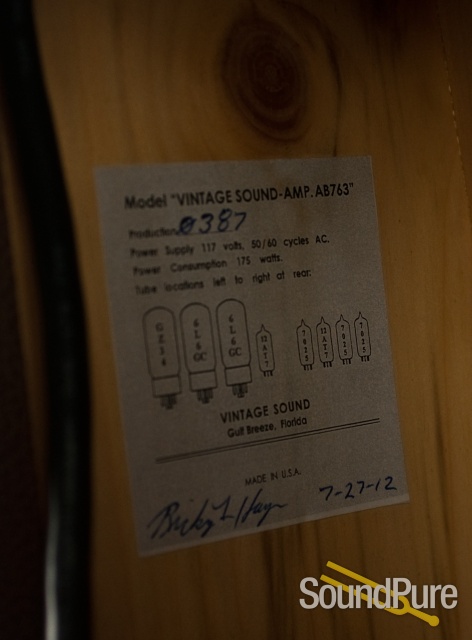

Tubes
- Rectifier
- 5AR4 Rectifier Tube
- Power Tubes
- (2) 6L6
- Preamp Tubes
- (4) 12AX7, (2) 12AT7
- Optional Accessories
- 2-Button Footswitch

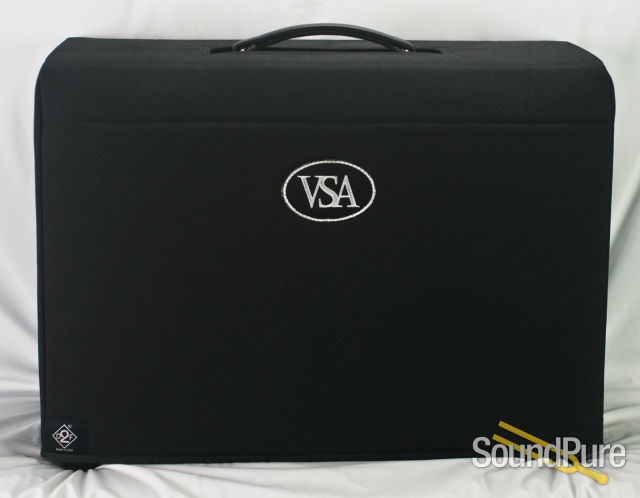

Custom Padded Cover By D2F
- Optional Modification(s)
- Bias Points
- Revoice Channel 1
- Brown Face/Black Face with added reverb & vibrato
Mild High Gain/Compression with added reverb & vibrato
Dimensions
- Amplifier Length
- 9 ½ “
- Amplifier Width
- 24 ½”
- Amplifier Height
- 17 ½ ”
- Amplifier Weight
- 55 lbs.
Head Dimensions
- Amplifier Depth
- 9 1/2″
- Amplifier Width
- 24 1/2″
- Amplifier Height
- 9 1/2″
- Amplifier Weight
- 25 lbs.
