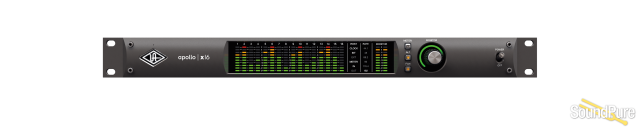

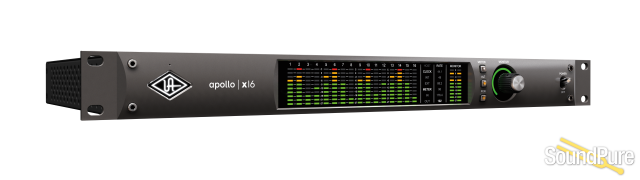

Universal Audio Apollo x16 Thunderbolt 3 Audio Interface  From UA

The new wave of the acclaimed Apollo interfaces is here! Featuring stunning new conversion and clarity along with HEXA Core processing with 6DSP chips for 50% more plug-in power than previous Apollos now running on Thunderbolt 3 with Surround Sound Monitoring

Universal Audio


Retail:  $4,299.00

FREE PLUG-INS [$1891 Value]

Get FREE Century Tube Channel Strip, UA 610 Tube Preamp & EQ Collection, Pure Plate reverb, Helios Type 69 Preamp & EQ Collection, Galaxy Tape Echo, V76 Preamplifier, Oxide Tape Recorder, 175B/176 Tube Compressor Collection and Neve 1084 {Offer Ends 9/30}

"Experience the Difference"

Sound Pure's 3-Year Warranty

Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

In Stock!
Ships immediately after order processed!
Payments as low as $79/mo.

Manufacturer's Description from UA

16  Channels  of  Elite  Audio  Conversion,  HEXA  Core  Processing  and  Surround  Sound  Monitoring.

The  flagship  Apollo  x16  allows  music  producers,  project,  and  post-production  studios  to  track,  overdub,  and  mix  with  new  world-beating  A/D  and  D/A  conversion,  HEXA  Core  UAD  plug-in  processing,  and  7.1  surround  sound  monitoring*  —  all  in  a  sleek  rackmount  Thunderbolt  3  audio  interface  for  Mac  or  PC.

Built  upon  UA’s  60-year  heritage  of  audio  craftsmanship,  this  18  x  20  interface  boasts  the  widest  dynamic  range  (133  dB)  and  lowest  THD+N  (-129  dB),  of  any  integrated  audio  interface  on  the  market.  Plus,  with  all-new  HEXA  Core  processing,  you’ll  get  50%  more  DSP  for  running  acclaimed  UAD  Powered  Plug-Ins  in  real  time.

In  addition  to  its  elite-class  audio  conversion,  Apollo  x16  features  selectable  operating  level  for  compatibility  with  professional  +24  dBu  gear,  as  well  as  an  integrated  monitor  controller  and  built-in  talkback  mic.

  • Experience  elite-class  A/D  and  D/A  conversion  with  the  widest  dynamic  rangeand  lowest  signal  to  noise  of  any  integrated  audio  interface  available
  • Track  and  mix  with  powerful  HEXA  Core  processing,  featuring  6  UAD  DSP  chips  for  running  more  award-winning  UAD  Powered  Plug-Ins  in  real  time
  • Easily  connect  to  professional  studio  gear  with  16  x  16  analog  I/O  via  DB-25  connections,  plus  switchable  +24  /  +20  dBu  headroom  settings
  • Work  in  surround  formats  up  to  7.1,  complete  with  speaker  calibration  and  fold-down


Elite-Class  A/D  and  D/A  Conversion

With  thousands  of  chart-topping  songs  and  hundreds  of  Grammy-winning  albums  under  their  belt,  Apollo  interfaces  are  no  strangers  to  tracking  stellar-sounding  records.  To  improve  on  the  previous  generation  Apollo  interface’s  class-leading  audio  conversion,  UA  engineers  obsessively  auditioned  the  latest  A/D  and  D/A  converters  —  ultimately pairing  elite-class  24-bit/192  kHz  converters  with  all-new  analog  circuitry  for  an  ultra-pristine  signal  path.

With  133  dB  dynamic  range  andTHD+N  of  -129  dB,  the  Apollo  x16’s  open,  natural  sound  quality  bests  every  interface  in  its  class  —  regardless  of  price  —  and  is  the  perfect  starting  point  for  applying  UAD  processing.


Realtime  UAD  HEXA  Core  Processing

Apollo  x16  features  new  HEXA  Core  processing,  with  six  DSP  chips  and  50%  more  UAD  plug-in  processing  power  than  previous  Apollos.  This  lets  you  run  more  UAD  plug-ins,  whether  you’re  tracking  in  real  time  with  channel  strips  from  Neve,  Manley,  or  API,  or  running  high  UAD  plug-in  counts  when  mixing  in  your  DAW.

From  the  tube  warmth  of  Pultec  EQs  on  guitars  to  the  musical  tube  limiting  of  the  LA-2A  on  vocals,  or  the  pump  of  a  genuine  1176  or  Fairchild  670  tube  compressor  on  drums,  your  recordings  will  take  a  giant  leap  forward  with  a  rich,  three-dimensional  analog  sound  that  UAD  plug-ins  provide.


A  Full  Suite  of  Classic  Analog  Processing  Onboard

Of  course,  a  hallmark  feature  of  Apollo  is  its  Realtime  UAD  Processing,  letting  you  run  the  full  library  of  UAD  plug-ins  with  near-zero  latency.  Apollo  x16  includes  the  Realtime  Analog  Classics  Plus  plug-in  bundle,  so  you  can  record  and  mix  with  the  world’s  only  authentic  Teletronix  LA-2A,  1176LN,  and  Fairchild  compressors,  Pultec  EQs,  and  many  more.


Access  the  World  of  UAD  Powered  Plug-Ins

Going  beyond  the  included  Realtime  Analog  Classics  Plus  plug-ins,  Apollo  x16  lets  you  tap  into  the  full  UAD  Powered  Plug-In  library  of  name-brand  vintage  EQs,  compressors,  reverbs,  tape  machines,  channel  strips,  and  more  —  at  near-zero  latency,  regardless  of  your  audio  software’s  buffer  size  and  without  taxing  your  computer’s  CPU.

 With  exclusive  emulations  from  SSL,  Neve,  Studer,  Manley,  API,  Ampex,  Lexicon,  Fender,  and  more,**  it’s  like  having  a  studio  full  of  iconic  analog  gear,  in  a  single  rack  space.  And  unlike  competing  interfaces,  these  award-winning  DSP-powered  plug-ins  are  also  available  in  your  DAW  for  mixing.


Surround  Sound  Monitoring*  and  +24dBu  Operation

With  comprehensive  surround  monitoring  support  for  formats  up  to  7.1,  Apollo  x16  is  a  boon  for  engineers  and  producers  working  on  audio  and  music  for  video  games,  television,  and  the  web.  In  addition,  Apollo  x16  offers  selectable  +24  dBu  operation  for  out-of-the-box  compatibility  with  professional  mixing  consoles  and  other  high-end  pro  audio  equipment.


Build  a  Networked  Studio  System  Over  Thunderbolt

Apollo  x16  offers  18  x  20  simultaneous  inputs/outputs  (16  x  16  analog  I/O)  and  two  built-in  Thunderbolt  3  ports,  which  are  backwards-compatible  with  Thunderbolt  1  and  2  Macs  via  adapter  (sold  separately).  This  allows  users  of  any  Thunderbolt-equipped  Apollo  Twin  or  Apollo  rackmount  audio  interfaces  to  easily  combine  up  to  four  Apollos  and  six  total  UAD-2  devices  —  adding  fast,  high-bandwidth  I/O  and  DSP  as  your  studio  grows.


Apollo  x16  Key  Features:

 ♦ 18  x  20  Thunderbolt  3  audio  interface  with  class-leading  24-bit/192  KHz  conversion
 ♦ HEXA  Core  Realtime  UAD  Processing  for  tracking  through  UAD  plug-ins  at  near-zero  latency,  regardless  of  audio  buffer  size
 ♦ Surround  monitor  controller  up  to  7.1  format*
 ♦ Includes  “Realtime  Analog  Classics  Plus”  UAD  plug-in  bundle  featuring  UA  610-B  Tube  Preamp;  Legacy  Pultec  EQ,  LA-2A,  and  1176  compressors;  Marshall  Plexi  Classic;  Ampeg  SVT-VR  Classic  and  more
 ♦ UAD-2  HEXA  Core  processing  onboard  for  additional  mixing  horsepower  for  Pro  Tools,  Logic,  Cubase,  Ableton,  and  other  major  DAWs
 ♦ Combine  up  to  4  Thunderbolt-equipped  Apollos  and  6  total  UAD  devices;  backward-compatible  with  Thunderbolt  1  and  2  via  optional  adapter
 ♦ Selectable  +24  dBu  operation  for  easy  compatibility  with  professional  mixing  consoles  and  tape  machines
 ♦ Convenient  front  panel  monitoring  functions  including  Alt  Speakers,  Talkback  mic,  and  assignable  Dim  or  Mono
 ♦ Uncompromising  UA  analog  design,  superior  components,  and  premium  build  quality
 ♦ Free,  industry-leading  technical  support  —  on  the  phone  and  online  —  from  knowledgeable  audio  engineers


Included  in  the  Realtime  Analog  Classics  Plus  Bundle:

UA  610-B  Tube  Preamp  &  EQ    Marshall  Plexi  Classic  Guitar  Amp  Ampeg  SVT-VR  Classic  Bass  Amp  UA  1176LN  Limiting  Amplifier  (Legacy)  UA  1176SE  Limiting  Amplifier  (Legacy)  Pultec  EQP-1A  EQ  (Legacy)  Pultec  Pro  EQ  (Legacy)  Teletronix  LA-2A  Leveling  Amplifier  (Legacy)  Fairchild  670  Compressor  (Legacy)  Precision  Enhancer  Hz  Raw  Distortion  Precision  Channel  Strip  (Precision  Mix  Rack  Collection)  Precision  Reflection  Engine  (Precision  Mix  Rack  Collection)  Precision  Delay  Mod  (Precision  Mix  Rack  Collection)  Precision  Delay  Mod  L  (Precision  Mix  Rack  Collection)  RealVerb  Pro  Custom  Room  Modeler  **Apollo  x16  includes  the  “Realtime  Analog  Classics  Plus”  UAD  plug-in  bundle.  Other  UAD  plug-ins  sold  separately  at  www.uaudio.com.  All  trademarks  are  property  of  their  respective  owners.

With comprehensive surround monitoring support for formats up to 7.1

, Apollo x16 is a

boon for engineers and producers working on audio and music for vide

o games,

television, and the web. In addition, Apollo x16 offers selectable +24

dBu operation for




-the-box compatibility with professional mixing consoles and other

high-end pro

audio equipment.

Build a Networked Studio System Over Thunderbolt

Apollo x16 offers 18 x 20 simultaneous inputs/outputs (16 x 16 analog I

/O) and two

built-in Thunderbolt 3 ports, which are backwards-compatible with

Thunderbolt 1 and 2

Macs via adapter (sold separately). This allows users of any Thunderbolt


Apollo Twin or Apollo rackmount audio interfaces to easily combine up t

o four Apollos

and six total UAD-2 devices

adding fast, high-bandwidth I/O and DSP as your studio


Apollo x16 Key Features:

18 x 20 Thunderbolt 3 audio interface with class-leading 24-bit/19

2 KHz


HEXA Core Realtime UAD Processing for tracking through UAD plug-ins at ne


zero latency, regardless of audio buffer size

Surround monitor controller up to 7.1 format*


Realtime Analog Classics Plus

UAD plug-in bundle featuring UA 610-


Tube Preamp; Legacy Pultec EQ, LA-2A, and 1176 compressors; Marshall P


Classic; Ampeg SVT-VR Classic and more

UAD-2 HEXA Core processing onboard for additional mixing horsepow

er for Pro

Tools, Logic, Cubase, Ableton, and other major DAWs

Combine up to 4 Thunderbolt-equipped Apollos and 6 total UAD devices;

backward-compatible with Thunderbolt 1 and 2 via optional adapter

Selectable +24 dBu operation for easy compatibility with professional m


consoles and tape machines

Convenient front panel monitoring functions including Alt Speake

rs, Talkback

mic, and assignable Dim or Mono

Universal Audio

About Manufacturer

Universal Audio Inc. was re-founded in 1999 by Bill's sons, James Putnam and Bill Putnam Jr., with two main goals: to faithfully reproduce classic analog recording equipment in the tradition of their father, and to design new digital recording tools with the sound and spirit of vintage analog technology. However, as Bill Jr. recounts, the genesis of "UA, part 2" is actually a bit more serendipitous.

Having grown up in the music industry, Bill Jr. and James ("Jim") Putnam naturally assumed that the music business is where they'd eventually end up. Jim, a touring musician and recording engineer, and their older brother Scott, a studio designer in Southern California, were the first to follow in Bill Sr.'s path. However, Bill Jr. took a more circuitous direction, working for a number of engineering companies before undertaking a doctorate in Electrical Engineering at Stanford University. It was at Stanford that Bill Jr. became closely involved in the Center for Computer Research in Music and Acoustics (CCRMA), specializing in signal processing. It was also at Stanford that Bill Jr. began to assemble a team of the best and brightest minds in the field — who continue to steer many of Universal Audio's engineering efforts to this day.

However, the precise event that led Bill and Jim to start (or "reinvent") Universal Audio in 1999 was unexpected. As Bill Jr. tells it, when Bill Sr. passed away in 1989, he and Jim were faced with the Herculean task of cleaning out their dad's workshop and storage areas. While going through Bill Sr.'s old test equipment, boxes of parts, bits and pieces of consoles, and half-cannibalized 1176 compressors, Jim came across their father’s old design notebook. The two spent the evening poring over his notes, realizing that this was the map to every technical problem their father had ever solved. It was at that moment that they decided to bring back Universal Audio and its classic products.

Fast forward a decade. Now with nearly 80 employees and legions of new customers worldwide, UA is headquartered near the Silicon Valley, in Scotts Valley, California — where our classic analog gear is still hand-built, one unit at a time. The lengths we go to deliver the exact sound and performance of classic analog audio gear is unparalleled; in fact, the goal is for UA's modern units to perform identically to well-maintained units built decades ago.

Of course, analog is only half the story. At Universal Audio, we employ the world's brightest DSP engineers and digital modeling authorities to develop our award-winning UAD Powered Plug-Ins platform, featuring the most authentic analog emulation plug-ins in the industry. Our DSP gurus work with the original hardware manufacturers — using their exact schematics, golden units, and experienced ears — to give UAD plug-ins warmth and harmonics in all the right places, just like analog.


Computer Connectivity: Thunderbolt 3
Form Factor: Rackmount
Simultaneous I/O: 18 x 20
A/D Resolution: 24-bit/192kHz
Built In DSP/FX: 6 x UAD DSP Cores
Analog Inputs: 2 x DB-25 (line)
Analog Outputs: 2 x XLR (monitor), 2 x DB-25 (line/7.1 surround)
Digital Inputs: 1 x XLR (AES/EBU)
Digital Outputs: 1 x XLR (AES/EBU)
Thunderbolt: 2 x USB-C (Thunderbolt 3)
Clock I/O: In/Out (75 ohm termination switch)
Software: HEXA Core UAD Plug-in processing, Realtime Analog Classics Plus Plug-ins
OS Requirements - Mac: OS X 10.10 or later
OS Requirements - PC: Windows 10 64-bit Anniversary update or later, Thunderbolt 3 port (built-in)
Rack Spaces: 1U
Power Supply: 12V DC power supply
Width: 19"
Height: 1.75"
