Sound Pure's Take

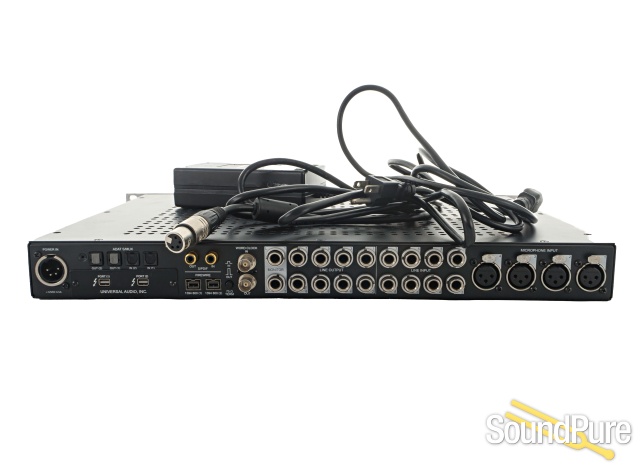

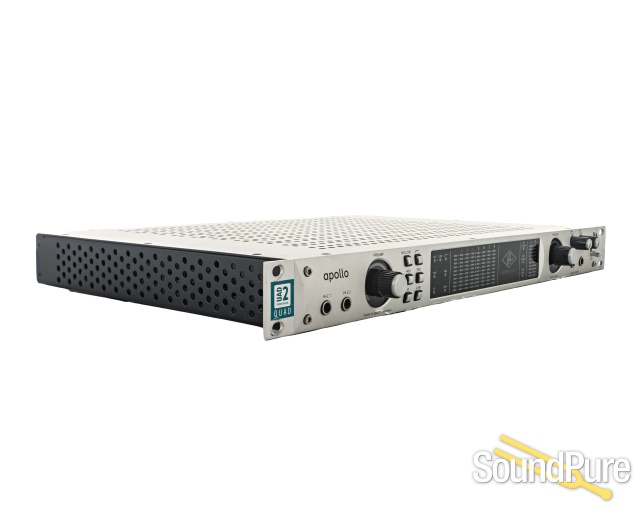

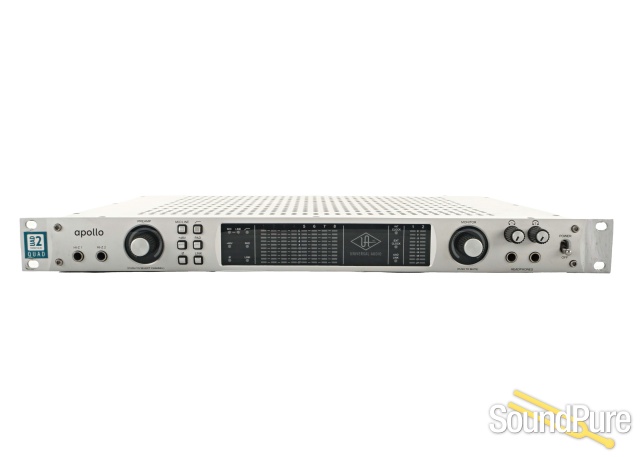

The unit is in perfect working order. There is some visible damage to the right rack ear but it is still rackable.
From Universal Audio
Apollo interfaces are proud successors of the UA’s 60-year heritage of audio craftsmanship. The four onboard DSP procesors allow a nealry zero-latency usage of the high quality UAD plugins, giving your production that analogue sound.
This Apollo comes with 4 Unison enabled microphone preamps. This technology lets you enjoy the colour and texture of the classic preamps by modelling the thought after designs by Neve, Manley, API, Helios and UA.
8 line inputs and outputs, advanced, yet user friendly software make outboard gear connection, routing and creating multiple monitor mixes seamless.
Firewire and Thunderbolt 2 ports ensure hi-speed connectivity to your PC or Mac. Try daisy-chaining up to 4 Apollos and 6 UAD 2 devices together for an even more powerful setup.
External PSU works on both 110V and 220V, EU power cord is included.
Key Features
- Worldwide standard in professional A/D and D/A conversion for music production
- Onboard UAD-2 QUAD Core DSP allows Realtime UAD Processing — record through plug-ins from Neve, Lexicon, Studer, Marshall, Ampex, and more*
- 4 Unison-enabled mic preamps for tracking through preamp emulations from Neve, API, and Universal Audio*
- 18 x 24 FireWire audio interface for Mac and Windows
- Cascade two Apollos for 16 analog I/O channels and 12 digital I/O channels
- Includes two Thunderbolt 2 ports for fast connectivity and daisy chaining units.
- World class UA analog design, superior components, and premium build quality
* All trademarks are recognized as property of their respective owners. Individual UAD Powered Plug-Ins sold separately.
Audio Interface
- Sample rates up to 192 kHz at 24-bit word length
- 18 x 24 simultaneous input/output channels:
- Eight channels of analog-to-digital conversion via mic, line, or high-impedance inputs
- 14 channels of digital-to-analog conversion via:
- Eight mono line outputs
- Stereo monitor outputs
- Two stereo headphone outputs
- 10 channels of digital I/O via:
- Eight channels ADAT Optical I/O with S/MUX for high sample rates
- Two channels coaxial S/PDIF I/O with sample rate conversion
- Two FireWire 800 ports for daisy-chaining other FireWire devices
- Two Thunderbolt 2 ports for daisy-chaining other Apollo interfaces and UAD-2 hardware
Microphone Preamplifiers
- Four high-resolution, ultra-transparent, digitally-controlled analog mic preamps
- Front panel and software control of all preamp parameters
- Switchable low cut filter, 48V phantom power, pad, polarity, and stereo linking
- Unison™ technology for deep integration with UAD preamp and pedal plug-ins
Monitoring
- Stereo monitor outputs (independent of eight line outputs)
- Digitally-controlled analog monitor outputs maintains highest fidelity
- Front panel control of monitor levels and muting
- Two stereo headphone outputs with independent mix buses
- Independent front panel analog volume controls for headphone outputs
- Front panel pre-fader metering of monitor bus levels
- S/PDIF outputs can be set to mirror the monitor outputs
Apollo FireWire Hardware Manual 6 Features
UAD-2 Inside
- QUAD Core DSP with four SHARC® processors
- Realtime UAD Processing on all of Apollo’s analog and digital inputs
- Same features and functionality as other UAD-2 devices when used with DAW
- Can be combined with other UAD-2 devices for increased mixing DSP
- Complete UAD Powered Plug-Ins library is available online
Software
Console application:
- Analog-style mixer for realtime monitoring and tracking with UAD plug-ins
- Enables Realtime UAD Processing
- DSP mixer for realtime monitoring and tracking
- Remote control of Apollo features and functionality
- Virtual I/O for routing DAW tracks through Console
Console Recall plug-in:
- Saves Console configurations inside DAW sessions for easy recall
- Convenient access to Console’s monitor controls via DAW plug-in
- VST, RTAS, AAX 64, and Audio Units plug-in formats
UAD Meter & Control Panel application:
- Configures global UAD settings and monitors system usage
Other
- Easy firmware updates
- 1U rack-mountable form factor
