Universal Audio 1176LN Classic Limiting Amplifier  From UA

A modern reproduction of the classic FET-style 1176LN - the first true peak limiter with all transistor circuitry offering superior performance with a signature sound.

Universal Audio

$2,399.00

Retail:  $2,499.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

In Stock!
Ships immediately after order processed!
Payments as low as $54/mo.

Want a lower price?
Call or email us!
888-528-9703
sales@soundpure.com

6176 Vintage Channel Strip Overview

A Classic Tube Microphone Preamp and 1176-Style Compressor in a Single Unit. The 6176 Vintage Channel Strip combines the alluring, all-tube sounds of the legendary Bill Putnam-designed 610 microphone preamp, with the signature FET compression of our 1176LN, to create the ultimate recording channel strip.

Manufacturer's Description from UA

FET-Style Compressor with Class A Output & Custom Transformers — True to the Original

The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.’s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology — the first true peak limiter with all transistor circuitry offering superior performance with a signature sound — and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN — Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that’s continued to grow, for nearly 50 years.

Carefully trained staff hand-wire and test each unit until it meets our uncompromising standards. This Universal Audio Classic version of the 1176LN captures all the nuance of the original through obsessive attention to detail and delivers that trademark sound. Demand the original. Accept no copies.

 Features:

  • True to the original in design, manufacturing and performance
  • Modeled after 1176LN, blackface, D and E revisions
  • Ultra fast attack time -20 microseconds to 800 microseconds
  • Class A line level output amplifier
  • Custom built Putnam-designed output transformer
  • Stereo interconnect operation
  • Hand-built in USA; backed by 1-year limited warranty
Universal Audio

About Manufacturer

Universal Audio Inc. was re-founded in 1999 by Bill's sons, James Putnam and Bill Putnam Jr., with two main goals: to faithfully reproduce classic analog recording equipment in the tradition of their father, and to design new digital recording tools with the sound and spirit of vintage analog technology. However, as Bill Jr. recounts, the genesis of "UA, part 2" is actually a bit more serendipitous.

Having grown up in the music industry, Bill Jr. and James ("Jim") Putnam naturally assumed that the music business is where they'd eventually end up. Jim, a touring musician and recording engineer, and their older brother Scott, a studio designer in Southern California, were the first to follow in Bill Sr.'s path. However, Bill Jr. took a more circuitous direction, working for a number of engineering companies before undertaking a doctorate in Electrical Engineering at Stanford University. It was at Stanford that Bill Jr. became closely involved in the Center for Computer Research in Music and Acoustics (CCRMA), specializing in signal processing. It was also at Stanford that Bill Jr. began to assemble a team of the best and brightest minds in the field — who continue to steer many of Universal Audio's engineering efforts to this day.

However, the precise event that led Bill and Jim to start (or "reinvent") Universal Audio in 1999 was unexpected. As Bill Jr. tells it, when Bill Sr. passed away in 1989, he and Jim were faced with the Herculean task of cleaning out their dad's workshop and storage areas. While going through Bill Sr.'s old test equipment, boxes of parts, bits and pieces of consoles, and half-cannibalized 1176 compressors, Jim came across their father’s old design notebook. The two spent the evening poring over his notes, realizing that this was the map to every technical problem their father had ever solved. It was at that moment that they decided to bring back Universal Audio and its classic products.

Fast forward a decade. Now with nearly 80 employees and legions of new customers worldwide, UA is headquartered near the Silicon Valley, in Scotts Valley, California — where our classic analog gear is still hand-built, one unit at a time. The lengths we go to deliver the exact sound and performance of classic analog audio gear is unparalleled; in fact, the goal is for UA's modern units to perform identically to well-maintained units built decades ago.

Of course, analog is only half the story. At Universal Audio, we employ the world's brightest DSP engineers and digital modeling authorities to develop our award-winning UAD Powered Plug-Ins platform, featuring the most authentic analog emulation plug-ins in the industry. Our DSP gurus work with the original hardware manufacturers — using their exact schematics, golden units, and experienced ears — to give UAD plug-ins warmth and harmonics in all the right places, just like analog.

Specifications

 - Input Impedance: 600 ohms, bridges-T control (floating)

 - Output Load Impedance: 600 ohms, floating, damping factor 20

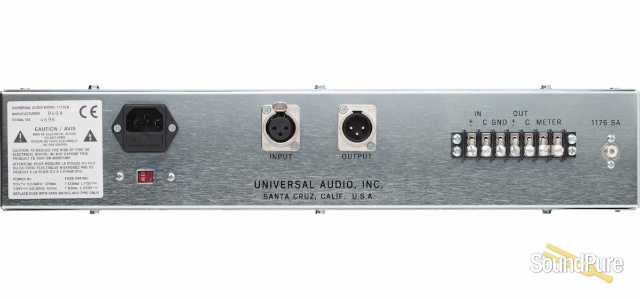

 - External Connections: Jones Barrier terminals and XLR connectors

 - Frequency Response: ± 1 dB 20 Hz to 20kHz

 - Gain: 50 dB

 - Distortion: Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting

 - Signal to Noise Ratio: Greater than 70 dB at +10 dBm

 - Attack Time: 20 microseconds to 800 microseconds

 - Release Time: 50 milliseconds to 1.1 seconds

 - Stereo Interconnection: via 1176 SA Network accessory

 - Meter: dB gain reduction and dB output

 - Power Requirements: 120/240 V

 - Maximum operating temperature: 160°F

 - Dimensions: 19" Rackmount chassis, 2U

 - Weight (unboxed): 11 lbs.

Downloads

Action

Name

Description

1176LN User Manual
