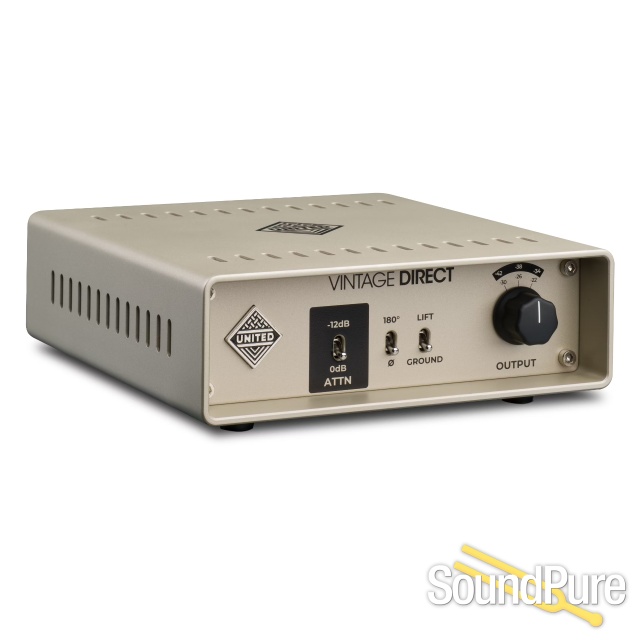

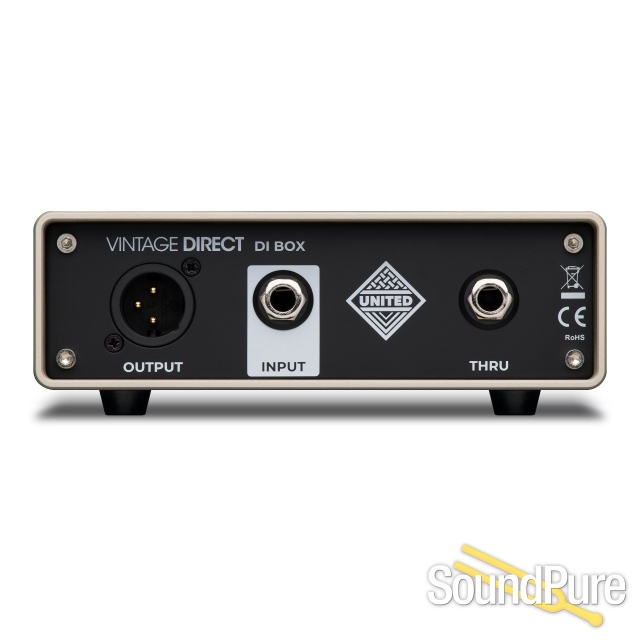

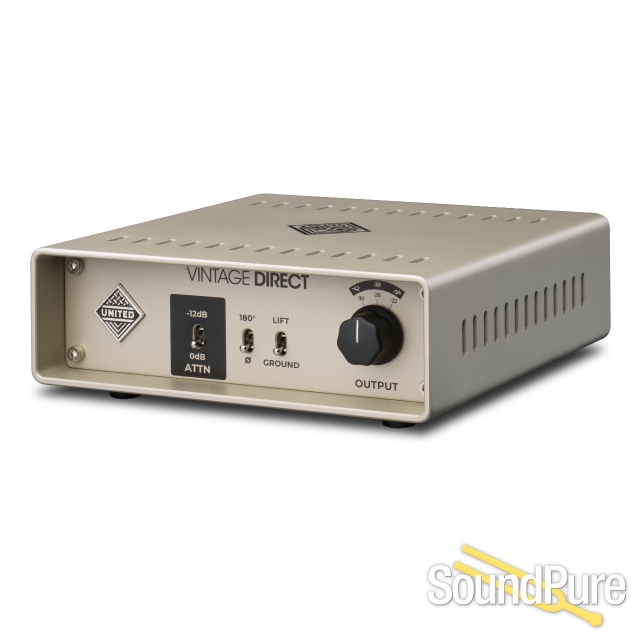

United Studio Technologies Vintage Direct Box  From United

Vintage Style Large Transformer Direct Box

United Studio Technologies

$399.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Contact us for up-to-date delivery estimate.
Payments as low as $35/mo.

Manufacturer's Description from United

United’s Vintage Direct bridges the gap between old-school tape operators and modern recordists. When the most demanding recording engineer needs the very best, the Vintage Direct delivers massive sound from its massive transformer. Its circuit design is based around eliminating any of the potential tone-robbing components in the signal path that you’re likely to find in a lesser DI Box.

When you need the very best, the Vintage Direct delivers.

We did the research.

While typical DI circuits are simple, the very best depend on great transformers — and this is where the Vintage Direct excels.. The design of Vintage Direct was inspired by the earliest hand-wired DI boxes, such as the Wolfbox and Bruce Swedien’s Bass Box, both of which used massive early transformers made by Triad, UTC, and others.

Our research began with the UTC A12 transformer, first manufactured in the early ‘60s. Several original transformers were measured to accurately reproduce their winding ratios, bobbin and magnet wire type, and lamination style.

We spent years exploring many versions of this design, experimenting with different winding ratios and alloys; we ultimately settled on a high-nickel lamination and a winding ratio very close to the classics that inspired us. The result: United’s US-made 5078 — one of the largest transformers you’ll find in a DI. It delivers a pristine low-noise signal, wide frequency response, extraordinary headroom, and outstanding noise rejection.

We decided that nothing would come between the transformer and source that could rob tone or add noise. Most passive DI boxes use smaller, unshielded transformers reliant on resistor pads, volume pots, and RC network filters before the signal hits the transformer. Vintage Direct has none of it.

Instead, level tailoring in the Vintage Direct is built into the transformer taps of its output, which is far more tolerant of adjustment without affecting tone. Vintage Direct uses three different secondary winding configurations in conjunction with a precision resistor T-pad output attenuator for six evenly-spaced output level settings. True ground isolation mitigates ground-loop hum while tracking.

We built a large, well-shielded transformer that can take any line- or instrument-level signal without risking overload. It wasn’t cheap, but it ensures pinnacle performance and the highest preservation of tone. Custom audio-grade resistors are made (in the USA) for United by PRP — a component provider for NASA.

The most exceptional passive DI box built in decades, The Vintage Direct sports an aluminum, road-worthy chassis that will survive a tour and still impress studio clientele when it gets back home. Its recessed front-panel design protects from both studio accidents and on-stage flying kicks. Removable feet add options for creative mounting.

With over 50 years of combined industry experience, we at United have spent years on research and development of this box. We can’t wait to hear what you make with it.



United Studio Technologies

Specifications

Input Impedance 80k Ω (unbalanced)
Output Impedance 50-250 Ω, depending on setting (balanced)
Frequency Response 20 Hz-20 kHz, +/-0.5 dB
Maximum Recommended Input Levels +10 dB or lower
Output Gain Level -42, -38, -34, -30, -26, -22 dB
Auxiliary Controls Phase Inverse, Ground Lift
Dimensions Height (w feet): 52 mm / 2″
Height (w/o feet): 46 mm / 1.8″
Width: 149 mm / 5.86″
Depth: 155 mm / 6.1″
Weight .95kg / 2.1 lbs
