Tonelux Designs TX5C 500-Series Compressor - Used  From Tonelux

Compressor Module for 500 Rack from Tonelux

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Tonelux Designs

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

Manufacturer's Description from Tonelux

The TX5C is the new design from Paul Wolff that addresses the complex issues with compression.

With the ability to do in-module parallel mixing of the dry signal and the compressed signal, the engineer can now enjoy the parallel or "side chaining" of an instrument with itself and come up with the perfect blend of the original and compressed signal without the problems associated with in-the-box latency.

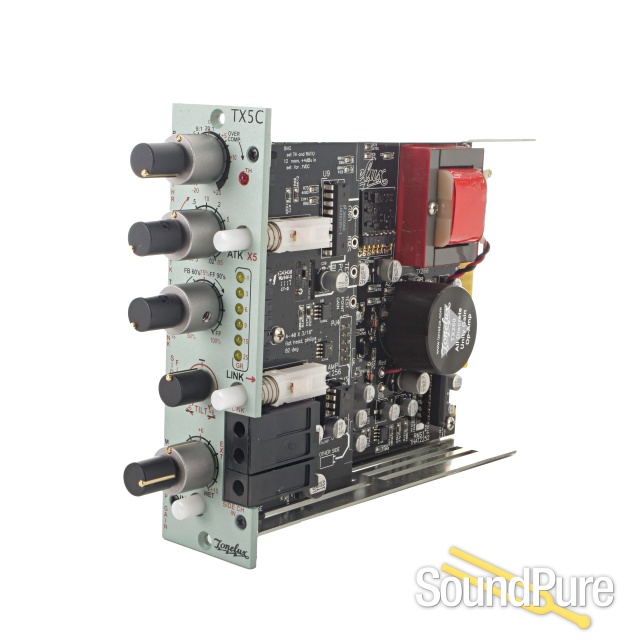

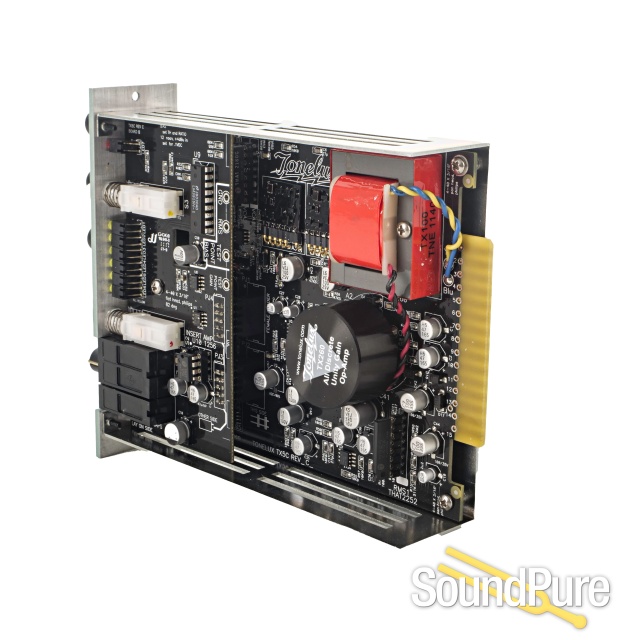

The TX5C uses the proprietary all discrete TX-240 op-amp and the all discrete TX-260 output stage with the TX-280 transformer.

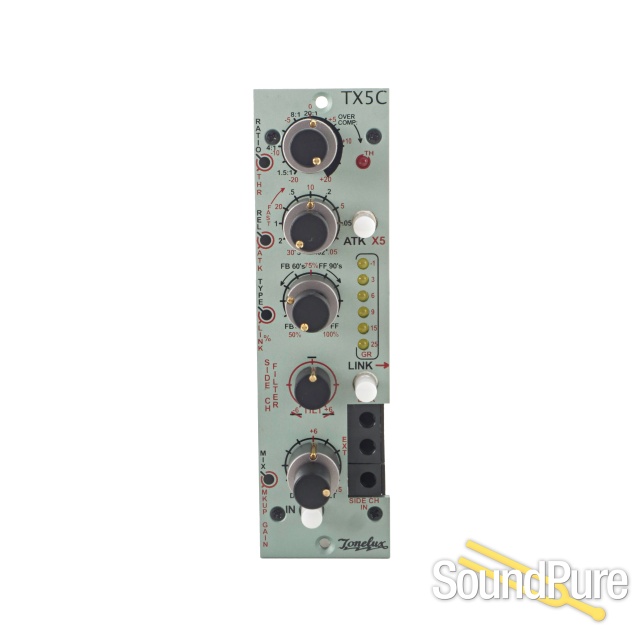

In addition to the Input/Compressor MIX knob, the TX5C has many other unique features not found on any compressor made today. The ability of being able to switch between Feed Back and Feed Forward compression is something that is not new to Paul Wolff. With the TX5C, he decided to take it one step further by allowing the ability to fade between Feed Back compression and Feed Forward compression with the TYPE control. This feature gives the engineer the freedom to combine the smooth nature of the Feed Back type of compression with the agressive effect of Feed Forward compression.

In addition to the FB-FF Type control, the TX5C has the ability to over compress with the RATIO control, which allows compression ratios from 1.5:1 to 20:1, and then beyond, with the "OVER:" ratio settings that cause the compressor to reduce the gain at a higher ratio than the gain is going into it. This means that the ratio control allows the compressor to compress an increase in signal of 10dB with a gain reduction of up to -8dB. If the signal goes up 10dB, the output will go DOWN 8dB.

This becomes useful when taking a pre compressed snare and by adjusting the Attack, and setting the Ratio in the OVER: area, you can actually recover the initial impact peak of the snare. This, with the MIX control, can then be blended back with the original "flat" snare and you now have a dynamic snare again, but with a very controlled peak.

The TX5C also inserted the now famous "TILT" control into the side chain of the RMS detector, so you can increase the highs and decrease the lows going into the RMS detector, virtually eliminating the effects of pumping because the Detector is seeing a more uniform distribution of energy across the spectrum instead of a bass heavy signal like most compressors.
The Attack control has a X5 switch to allow for a range of extremely fast attack (in the micro second range) all the way through a very smooth slow attack, more suited for leveling.
The Release control can be almost instantaneous to 3 seconds. The release circuit is a unique 3 stage circuit that auto releases the faster signals at a rate of 10 times the release of the lower frequency signals. All of this and an auto-makeup gain system that always keeps the gain at unity regardless of the amount of compression.
With a 6 LED Gain Reduction meter and an adjustable link control, the TXC can be used in mono or stereo configurations with ease.
