From Summit Audio
Summit Audio's design philosophy with the ECS-410 Everest is a no-compromise, high-value approach to every step of the design and manufacturing process. From the choice of thru-hole parts for high reliability and easy repairs to using gold plated circuit boards, Summit Audio has crafted the ECS-410 Everest for a lifetime of use. The modular design of the ECS-410 Everest makes service and updating extremely simple, as well as giving great separation for each section, with direct power, audio, and ground connections. Each card has double, redundant contacts to the main board and we use actual wire, not failure-prone ribbon cables. All contacts from the cards to the front panel controls use three finger contacts, the most reliable and solid connections available. The inputs and outputs are all fully balanced and use high end connectors in all cases. The steel chassis is very strong and offers excellent shielding with a highly durable coating for a lifetime of use with a minimum of evidence of wear. And most importantly, each section is laid out by hand, so trace routing is the result of experience and testing, not the accidental routing coming from a computer generated 'auto-route' feature. Attention to details like this truly make the ECS-410 Everest stand above.
Size and Weight
- Height
- 3.5 inches (8.89 cm)
- Width
- 19 inches (48.26 cm)
- Depth
- 17 inches (43.18 cm)
- Weight
- 26 pounds (11.79 kg)
Power Configuration
Internal AC Supply
100VAC-240VAC (different fuse for 100V,
115V, and 240V)
Dc1 Dual Mode Compressor Data
- THD+N
- (@+4dB, with no compression but through gain cell) 0.025% (A weighted), 0.041% (unweighted with 6dB compression) 0.013% (A weighted), 0.013% (unweighted)
- Frequency Response
- 5dB >200kHz +/- 3dB, 5Hz-136kHz +/-0.5dB
- Gain
- -4dB to +10dB
- Attack
- variable from 4mS to 100mS
- Release
- variable from50mS to 1S
- Ratio
- Classic or Tight
- Metering
- 10 segment LED for gain reduction
- IO

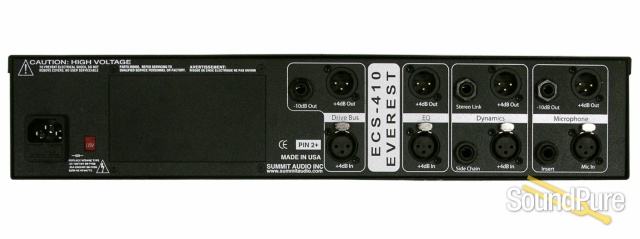

- Balanced XLR +4dB in and out, 1/4" side chain, 1/4" stereo link
Db2- Drive Bus Master Output and Overdrive
THD+N (@+4dB, no cut or boost)
- Bypass
- 0.002% (A weighted), 0.008% (unweighted)
- Tube
- 0.3% to overdrive (unweighted)
- Solid State
- 0.013% to overdrive (unweighted)
Frequency Response
Tube 5Hz -> 50kHz +/- 2dB, 5Hz -> 25kHz +/- 0.5dB
Solid State 5Hz- > 200kHz +/- 2dB, 5Hz-130kHz +/- 0.5dB
- Gain
- +20dB
- Type
- Tube (12AX7A) or discrete transistor
- Metering
- analog VU output level
- IO
- balanced XLR +4dB in and out, -10dB 1/4" TRS out
Mz2 Microphone Preamplifier
- Max gain
- +60dB (plus 20dB when routed through the Db2 drive bus output) THD+N (@ +30dB): 0.008% (A weighted), 0.01% (unweighted)
- Max Out
- +25dB
- Frequency Response
- Solid State 10Hz-200kHz +/- 3dB; 15Hz-120K +/-0.5dB
Tube 15Hz-159K +/-3dB, 0Hz-65Hz +/- 0.5dB
- Input impedance
- 2K ohms
- Type
- Switchable tube (12AX7A) or discrete transistor
- HPF
- 60Hz, 6dB/8va
- Metering
- 10 segment LED
Phantom Power +48VDC
- Pad
- -20dB
- Polarity
- 0 or 180 degrees
- IO
- Balanced XLR mic in, front panel 1/4" Hi-Z in, balanced XLR +4dB (nominal) out, 1/4" TRS -10dB (nominal)
Fe1- Passive 3 Band Equalizer
- THD+N (@+4dB, no cut or boost)
- (A weighted) 0.009%, (unweighted) 0.025%
- Frequency Response
- 5Hz- 100kHz +/-0.5dB , 5Hz- >200kHz +/-3dB
- Frequencies
- Low 33, 60, 100, 150, 270, 390HZ (peak or shelf)
- Mid peaking bandwidth
- 2 octaves
- High shelf
- 6dB/8va, peaking bandwidth 2 octaves
- IO
- balanced XLR +4dB in and out
Warranty
3 year limited warranty.
