From John Suhr Effects Pedal

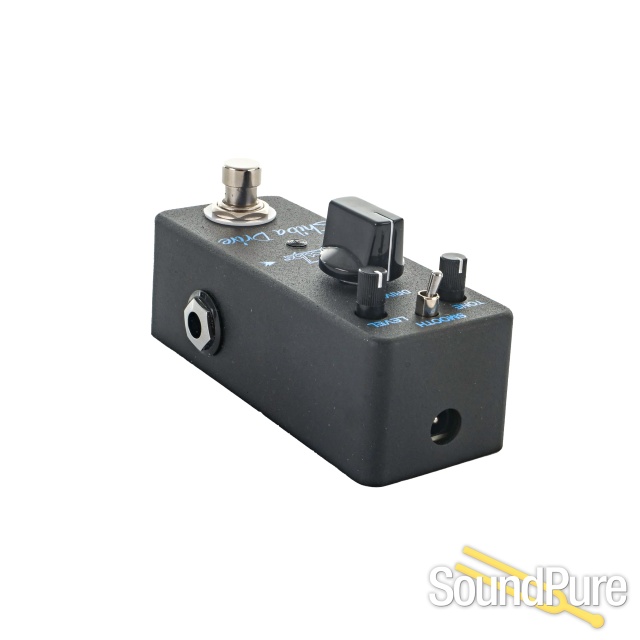

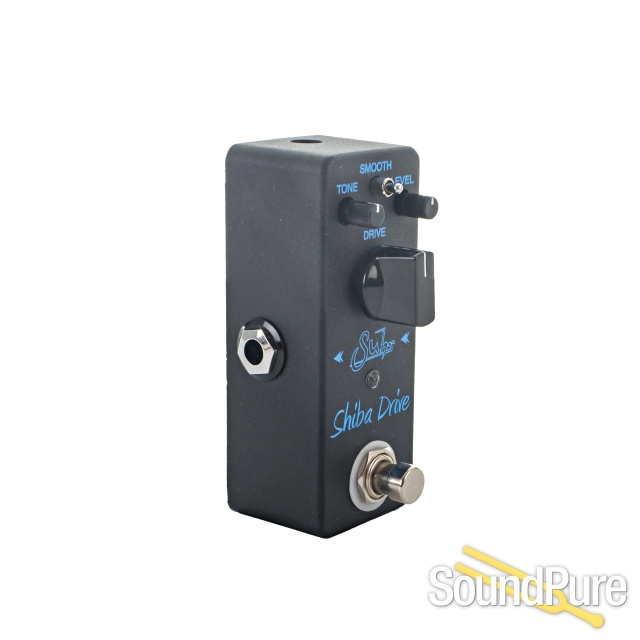

Today pedal board real estate comes at a premium especially when traveling. And lets face it, sometimes having to choose which pedals to leave off your board can really limit your versatility. Well not anymore, The Shiba Drive Re|Loaded MINI has inherited all of the DNA of it’s larger sibling, only now it’s harnessed in a smaller more compact pedal board friendly design.
Small but mighty and heavily equipped with Drive, Tone and Level Controls, a 2-Position Smooth (Hi-Cut) switch, True Bypass, an On/Off Effect Status Indicator can be powered via any 9Vdc center negative power supply and housed in a road-worthy powder coated die-cast enclosure for years of reliable performance.
- Input Impedance
- 1MΩ
- Output Impedance
- 1kΩ
- Power Connector
- Center Negative, 2.1mm x 5.5mm
- Operating voltage
- 4V to 18V (nominal 9V)
- Maximum Voltage
- 20 Vdc
- Reverse Battery Protection
- Yes
- Over Voltage Protection
- Yes
- Current Consumption
- 8mA
- Dimensions
- 1.82”(W) x 3.85”(D) x 1.89”(H)
- Weight
- 0.365lb
