Sound Pure's Take

John Suhr never ceases to amaze! This little jewel not only gives you a clean +20 dB of Gain, but also aids in giving an amazing, and also transparent buffer to a long signal chain when using a lot of pedals. What a tool to have in your arsenal.

From John Suhr Effects Pedal

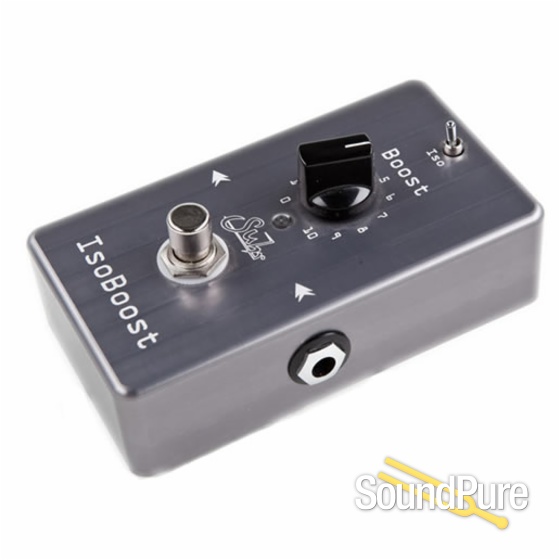

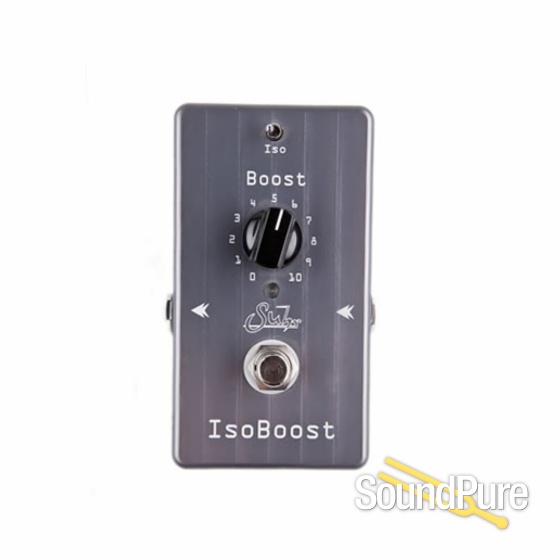

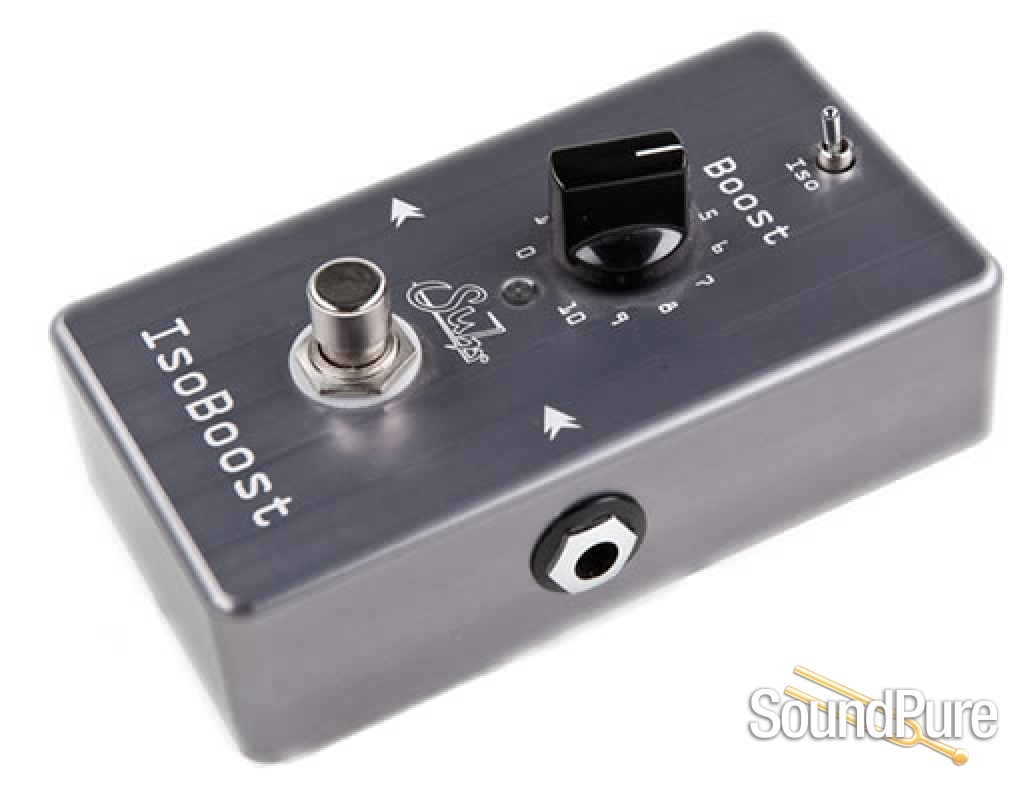

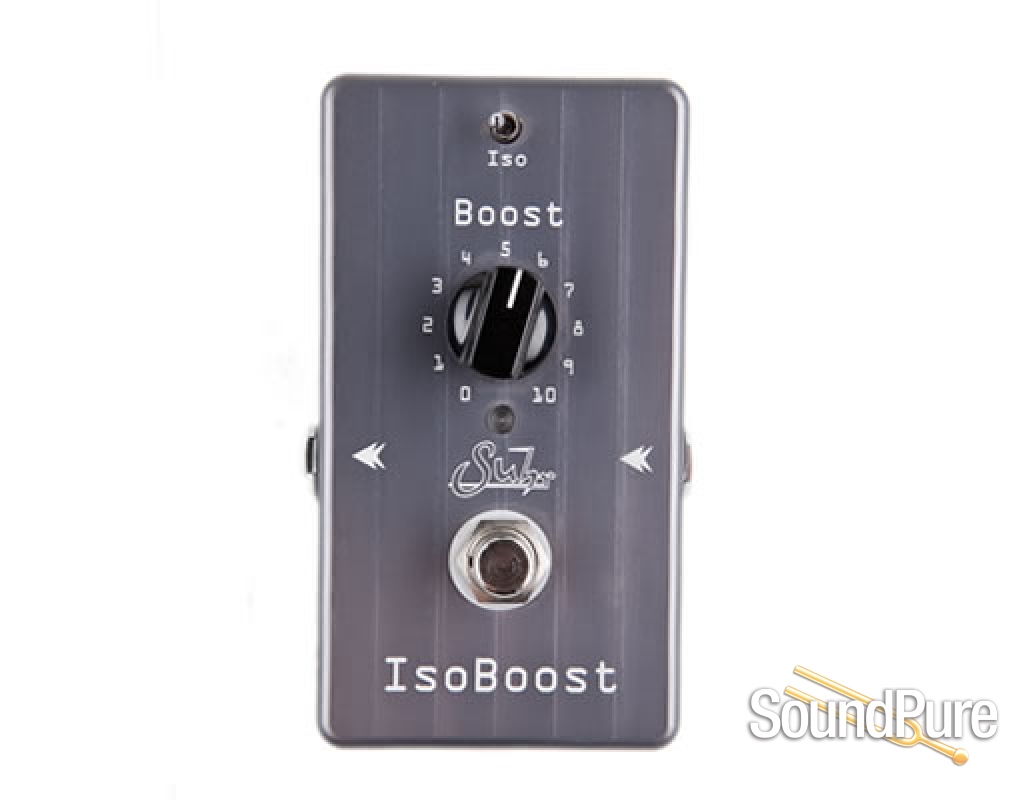

The Iso Boost is a unique boost pedal in that it incorporates a clean, transparent boost as well as a transformer isolated buffered signal to cleanly drive long effects chains. Utilizing the finest components and rock solid construction and engineered by discerning musicians, the Iso Boost is the ultimate boost pedal and line driver that dramatically expands the range of your tube amplifier. As a clean boost, the Iso Boost can vary from unity (buffered) to +20dB of gain. The pedal also has unique features such as remote on/off via the FxLink offered on all Suhr pedals and a battery monitor feature that alerts the user to low battery conditions. Also, if the battery is too low for the circuitry to operate properly, the battery monitor will automatically switch the pedal to true bypass. Expand the functionality and the audio quality of your rig with the Iso Boost at the front end with beautifully transparent buffered signal along with the clean boost found on our popular Koko Boost. Whether you have a simple rig of just a few pedals in front of the amp or a complex rig featuring a half-dozen or more pedals, the Iso Boost will maintain the integrity of your guitar signal while providing a very musical sounding boost that will add versatility to your rig. You just may find the Iso Boost the one indispensable component to keep your rig in tip-top condition.

Input Impedance
1M ohm<br>
Output Impedance
600 ohm / 10K ohm<br>
Power Connector
9Vdc, center negative, 2.1mm x 5.5mm<br>
Operating Voltage
4V to 18V (nominal 9V)<br>
Maximum Voltage
20Vdc<br>
Reverse Battery Protect
yes<br>
Current Consumption
8mA<br>
Estimated Battery Life
75 – 100 hours continuous use<br>
Dimensions
2.50” Width x 4.50” Depth x 1.25” Height<br>
Weight
1 pound<br>
FxLink Connector
1/8” stereo<br>
FxLink max Voltage
3.3Vdc<br>
Shield Tip
BOOST<br>
ROHS Compliant
Yes – all components, finishes, processes<br>
Agency Approvals
None required
