Sound Pure's Take
Condition: Used, Very Good
From Other (Miscellanous Used/Vintage/Consign)

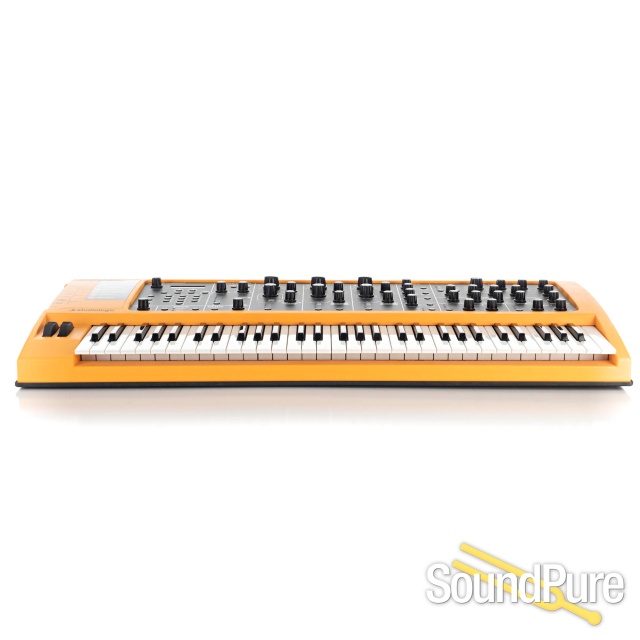

Sledge 2.0 introduces new features and sound innovations that set the instrument above any competitor, thanks to a mix of pure synthesis and sound sampling.
In addition to the incredible sound engine and the user-friendly vintage style control panel, the new features further expand the synthesizer's power and versatility.
Auto Dual Mode, mix the sound
Combine and play two sounds at the same time, in Split or Layer mode.
Every sound combination can be stored in any of the 999 available presets.
Hold the loop and pitch the sound
Pitch and Hold functions can be enabled separately for the Lower and Upper sounds in Dual Mode, allowing you to keep the sample loop running while playing the upper sound.
Elevate your performance.
Let your samples play
Sound samples and new waves can be loaded in the internal memory, played by OSC 1 and modifiable by all parameters of the control panel, adding other oscillators, setting filters, envelopes and effects.
Spectre & Sound Mapper
Create and transfer Sample content, manage and reorganize the internal sound library of your Sledge. Load, save, copy, send, receive. Everything you want to do with your sound library, you can do that thanks to a user-friendly interface.
- Keyboard
- 61 Keys, TP/9S unweighted
Dual switch detection system
Aftertouch
- Touch
- Soft, Medium, Hard, Fixed (programmable) 1
- Sound generation
- Max Polyphony 24 voices
2 Parts
- Modulation
- LFO1, LFO2 (phase synchronized), WHEEL (for Mod wheel and Aftertouch)
Adjustable LFOs speed and depth
- LFO shapes
- sawtooth, square, triangle, sine, sample & hold, ramp
- Destinations
- OSC1, OSC2, OSC3, PWM / Wave / FM, Volume, Filter Cutoff
- Oscillators (OSC1, OSC2, OSC3)
- Range from 64' to 1' with semitone and detune controls
- Shapes
- sawtooth, square, triangle, sine, pulse (with pulse modulation)
OSC1 with 66 original PPG Wavetables + Sample Player (60 Mb internal memory)
- FM (Tone generation)
- OSC2, OSC3 amount control - Oscillator hard sync (OSC2 to OSC3)
- Mixer
- Volume and On/Off switch for each oscillator
- Noise generator
- White/Pink - Volume control
Filter & Amplifier
Slope (24/12 db) - lowpass, highpass, bandpass
Resonance up to self oscillation
Adjustable key track and drive
Filter envelope - ADSR with amount control
Amplifier envelope - ADSR with velocity control
Proportional velocity control on Filter and Amplifier sections
- Arpeggiator
- Latch mode
Syncable to MIDI clock
Direction up, down, alternate
Range up to 10 octaves
- Effects / Processing
- 2 simultaneous effects
- FX1
- Chorus / Phaser / Flanger
- FX2
- Reverb / Delay / Reverb + Delay
- Features
- 999 User Programs (+13 Categories)
Fast sound selection via numeric keypad or encoder
Auto Dual Mode - Split/Layer - programmalbe Split pount for each program
Global
Master tune - Transposer - Pitch/Bend range - Pedal functions (volume, mod wheel, cutoff) - Pot mode (snap/direct) - Displaytime - Pitch wheel, hold pedal assign
MIDI
MIDI Channel - Local On/Off - Clock control - Send/Receive controls

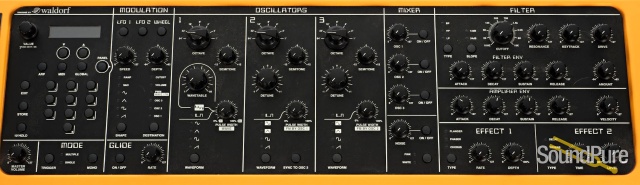

- Controls / UI
- Display 2x16 digits backlit LCD
Pitch wheel
Modulation wheel
35 Pots
3 "chicken head" rotary switches (7 positions)
1 rotary encoder with push function
Master volume control (with panic and anti-thump circuit)
Numeric keypad
Connections
- Audio OUT
- 2x 6,3 mm mono jack (L+R)
- Headphones
- 2x 6,3 mm stereo jack
- Pedals
- Hold, Expression
- MIDI
- In, Out
- USB
- USB to Host, MIDI
Power supply
- AC IN
- 110-240V
Size and weight
- Width
- 97 cm / 38,2"
- Depth
- 40,5 cm / 16"
- Height
- 11 cm / 4,5"
- Weight
- 8,3 Kg / 18,3 lbs
- Package content
- Sledge 2.0
Power cord
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: take it home, commit only when it's right. Program details →
