From Strymon Pedals
Tape Delay, Looper, And More.

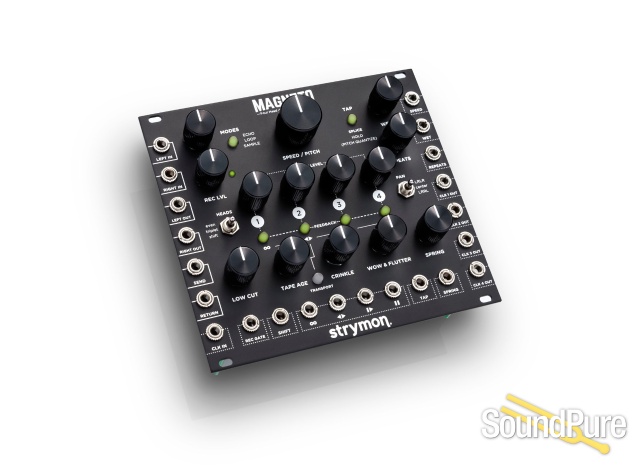

Packed with powerful features while maintaining intuitive playability, Magneto is a stereo multi-head tape delay that also functions as a looper, phrase sampler, vintage spring reverb unit, phase-aligned clock multiplier, chaotic oscillator, zero latency sub-oscillator and more, with extensive CV I/O.
Transform Your Modular.
Turn simple monophonic signals into complex orchestrations. Create new oscillator tones using self-oscillation. Add rich stereo dimension to your sound, and enjoy the inherent warmth and sweet, subtle distortion characteristics of magnetic tape. Magneto transforms even the smallest rack into a fully expressive, immersive instrument.
Vintage Vibe.
To capture the full experience and complexity of a vintage tape echo machine, every last tape system attribute was relentlessly studied and faithfully recreated. From the sought-after natural saturation and soft clipping of magnetic tape when driven hard, to hands-on real-time controls for tape age, tape crinkle, and mechanical wow and flutter, Magneto delivers a rich multi-head delay experience that adds life and vibe to your sound.
Play It Like An Instrument.
Every function, control, gain stage, and signal path component in Magneto works together to respond musically and smoothly, even during the wildest live modular improvisations. All this is combined with a luxurious spring reverb to take the sound of your modular setup to a new level, and your sonic explorations into far-out territories.
- Sound Design
- Tape-voiced delay machine with four playback heads and one record head
Processor-intense dTape algorithm delivers meticulously nuanced recreations of vintage tape echo systems
- Three operational modes
- Echo, Sound On Sound Looper, Phrase Sampler
- Varispeed algorithm with dynamic machine mechanics, 8
- 1 speed range
Input record level for clean reproduction to warm, fat saturation
Self-oscillating for tone generation
Independent Spring Reverb
- Control
- Dedicated control over tape mechanics, machine health, and tone: Low Cut, Tape Age, Crinkle, Wow & Flutter
Transport controls (buttons and CV inputs) for real-time performance options
Individual Playback Head Level controls
Individual head Feedback assignment independent of playback level
Three stereo head panning options, including user-defined custom panning
Phase aligned clock out (CLK OUT) CVs synched with clock in (CLK IN) CV
Ranges
- Maximum Delay/Loop Time
- 15 seconds at maximum Speed, two minutes at minimum Speed
- Minimum Delay Time
- 200µS at maximum speed
- Clock In CV Range
- 50ms – 15s
- TAP Button Range
- 50ms – 15s
- TAP CV Range
- 10ms – 15s
- Audio Quality
- Analog dry path for a zero latency dry signal that is never converted to digital
Super high performance SHARC DSP
114db typical signal to noise
- Sampling Rate
- 96kHz
- Audio Input Impedance
- 22 kOhm
- Maximum Audio Input Level
- 20 Vpp
- Audio Output Impedance
- 1 kOhm
- Maximum Audio Output Level
- 20 Vpp
Power
- +12V rail
- 210mA
- 12V rail
- 210mA
- +5V rail
- 0mA
Eurorack power cable included
Dimensions
- Rack Width
- 28hp
- Rack Depth
- 41mm, 1.61”
Designed & Built in the USA
