Sound Pure's Take
Condition: Used, Excellent
Call to order, or stop by the shop in Durham North Carolina to try it out!
You ready to go vintage? It's scary how accurate this pedal is at simulating the true rotating speaker tone from an old organ cab! Super bold flavors! and then you make use of the stereo outputs going to two amps and your ears are in euphoria! such a crazy great sound. Gotta play it to believe it. Call or Email for more info, or to get one ordered up and shipped same day
From Strymon Pedals
When we decided to create a studio-class pedal that faithfully recreates the classic, unmistakable sound of the most sought-after rotating speaker system, we prepared to study every nuance and finest detail. The Strymon sound design labs have been filled with those signature, swirling, three-dimensional sounds, as we painstakingly analyzed and recreated the physics and mechanics behind these systems.
Lex provides you with a complete, accurately reproduced rotary system: the low-frequency bass rotor, the rotating treble horn, the tube-driven amplifier, finely tuned microphone placement, and all the complex sonic interactions between these elements. Utilizing a ridiculously powerful SHARC DSP, every drop of processing power is harnessed to authentically represent these details.
You get eight parameters to tweak, allowing extensive control over the tonality and mechanics of the rotating speaker system. You can manipulate each element, from rotor speed, horn level, acceleration time, microphone distance, tube drive and saturation, and volume level. Go from a maelstrom of dramatic, up-close, sweeping and swirling sounds, all the way to mellow, tranquil and calming undulations. All of this without a giant cabinet, microphone setup, and costly motor maintenance.

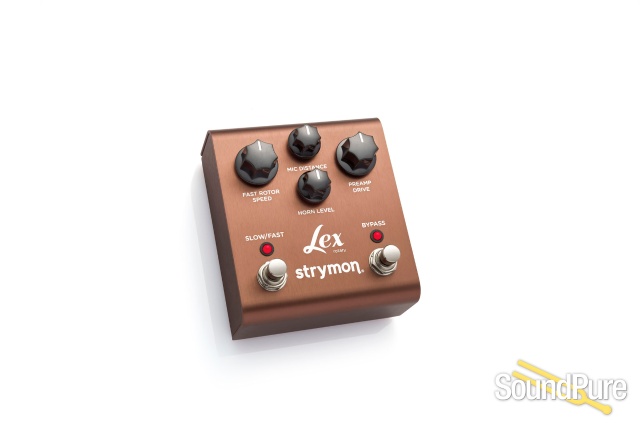

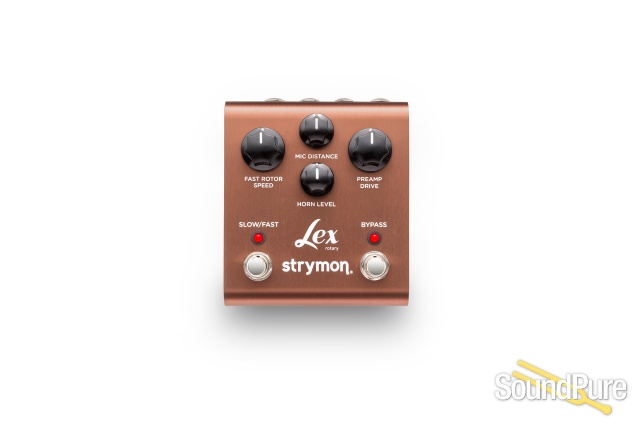

Four rotary adjustment and tone shaping knobs: Fast Rotor Speed, Preamp Drive, Mic Distance, Horn Level.
Four “hidden” knobs for extensive tweaking: Slow Rotor Speed, Cab Direction, Acceleration Time, +/- 6dB Boost/Cut.Your 4-knob Lex Rotary is actually a 8-knob rotating speaker machine!
Based on customer feedback, in May 2012 we introduced an updated Lex design that includes an internal jumper allowing for selectable TRS stereo input, as well as non-click footswitches. This FAQ does not apply to Lex mono input (now discontinued), which was manufactured before May 2012 and includes a mono input. Read this FAQ to determine which pedal you have.
The input can be set for either mono input or TRS stereo input. The pedal ships in mono configuration from the factory. Here’s how to adjust this configuration.
Remove the back cover of your pedal.
On the left side of the circuit board, you’ll see a jumper that can be set in two positions. Place the jumper on the left 2 pins for TRS stereo input. Place the jumper on the right 2 pins for mono input
Alternate between a fast and slow rotor speed. Ramp up and slow down with the press of a switch.
|
Press and hold the Fast/Slow switch to put the brakes on. The Lex rotary will wind down and stop. When at rest, the horn and drum “brake angle” is optimally positioned for consistent results. Release the Fast/Slow switch and the rotary will begin to spin Lex provides you with a selectable Bi-Amp mode to send bass rotor signal out to the Left output, and the treble horn to the Right output. Stack two cabinets and add another dimension to your sound. You get an expression pedal input with assignable control over any front-panel knob parameter. When set to Fast Rotor Speed, you can sweep and ramp all the way from the “braked” position up to a selectable speed. What's Happening Inside?
|
Sound Design
- Hand crafted rotary algorithms faithfully deliver the signature, three-dimensional rotating speaker experience
- Extensive control over rotating speaker mechanics and configuration
- Four rotary adjustment and tone shaping knobs:
Fast Rotor Speed, Preamp Drive, Mic Distance, Horn Level. - Four “hidden” knobs for extensive tone tweaking:
Slow Rotor Speed, Cab Direction, Acceleration Time, +/- 6dB Boost/Cut. - Instantly alternate between a fast and slow rotor speed with theFast/Slow footswitch
- SelectableCab Filterallows for an optimal experience in front of guitar amplifiers and full range systems

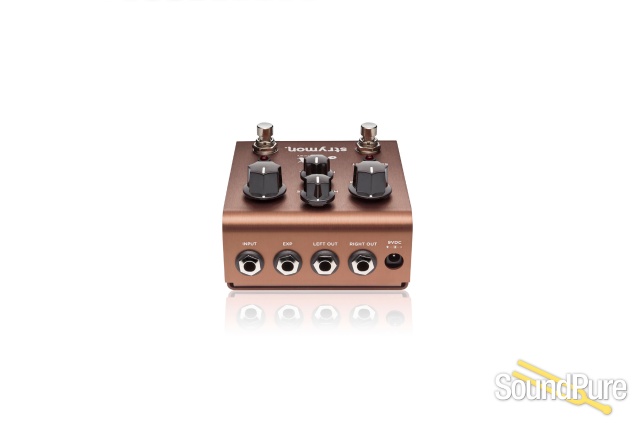

Ins/Outs/Switches
- Stereo output
- High impedance mono input (internal jumper enables selectable TRS stereo input) Pleaseread this FAQfor more info on the TRS input.
- Expression pedal input with selectable control over any knob parameter
- Connect our optionalFavorite switchto save a favorite preset or use as an external speed switch
- Fast/Slow and Bypass footswitches
- Press and hold Fast/Slow footswitch forRotary Brake
- SelectableBi-Amp modesplits bass rotor and treble horn signals to separate outputs
Audio Quality
- Stereo output
- High impedance mono input (internal jumper enables selectable TRS stereo input) Pleaseread this FAQfor more info on the TRS input.
- Expression pedal input with selectable control over any knob parameter
- Connect our optionalFavorite switchto save a favorite preset or use as an external speed switch
- Fast/Slow and Bypass footswitches
- Press and hold Fast/Slow footswitch forRotary Brake
- SelectableBi-Amp modesplits bass rotor and treble horn signals to separate outputs
More
- True Bypass (electromechanical relay switching)
- Powered with a standard 9V center negative DC supply. 250mA minimum
- Strong and lightweight mahogany anodized aluminum chassis
- Crafted with love in the USA
