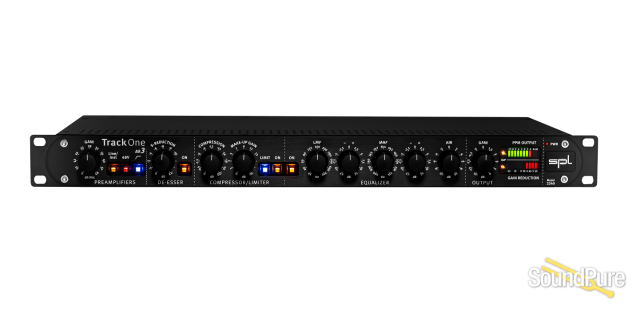

SPL Track One Mk3 Channel Strip  From SPL

Optional Equipment

Lundahl Transformers

The Sonic Aspects

Transformers are used as an alternative to electronic balancing stages in the inputs and outputs.

Transformers can be found in many classics of audio engineering. They make the bass and fundamental tines rounder and give it a little more punch. The high and overtone range sounds a bit silkier and more present.

We find transformers to be advantageous, especially for voices. For highest precision and speed in signal transmission (transient processing), however, electronic stages are better suited. The bottom line is that it is a question of taste and application.

In the Mic Preamplifier

In the case of preamplifiers or channel strips, the 2161 input transformer, which is specially designed for microphone inputs, provides an additional gain of up to 14 dB (depending on the microphone), which must then be added to the scaling.

This relieves the microphone preamplifier. Since the transformer ratio passively increases the level, no noise is added. Therefore, the input transformer is more important than the output transformer in preamplifiers.

However, it is only when both transformers are fitted that all positive sonic aspects are achieved – as well as increased operational reliability.

AD Converter Module 1090

The 24 bit converter module provides an SPDIF output which is available as coaxial and optical output.

The internal sampling rate can be set with switches to 44.1, 48, 88.2 and 96 kHz. Other sampling rates (32, 176.4, 192 kHz) can only be set with an external synchronization signal.
