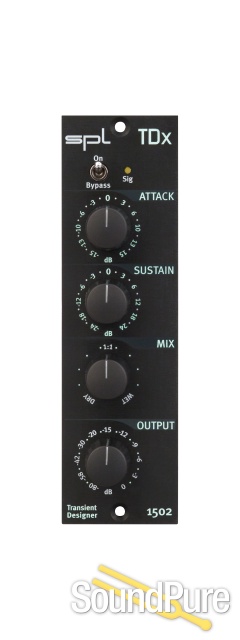

SPL TDx - Transient Designer 500 Series module  From SPL

This next generation transident designer will help your mixes POP!

SPL

$359.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $31/mo.

Manufacturer's Description from SPL

With the Transient Designer TDx the level-independent processing of signal paths is making headway into the world of 500 series rack modules.

Working with the Transient Designer is very simple: Attacks can be amplified or attenuated and sustain may be prolonged or shortened. However, the possibilities for studio and live application are seemingly endless.

Technical foundation is SPL‘s Differential Envelope Technology (DET) which allows level-independent dynamic processing by calculating differences in generated envelopes. These envelopes are always tracking the curve of the original signal to provide optimal results in every moment of the music. So only two controls per channel are required to allow the user to completely reshape the attack and sustain characteristics of a sound.

Thanks to the new TDx feature MIX (parallel mix) you can continuously blend between the processed and the unprocessed signal. Thus, the range of functions is extended even further and with the three parameters ATTACK, SUSTAIN and MIX, which offer an intuitive operation, the options of designing transients reach a new dimension of great variety.



Applications

The Transient Designer is ideally suited for use in professional recording, project or home studios and in sound reinforcement applications. Applied to single instruments or loops the Transient Designer allows you to create entirely new sounds and/or effects.

The following examples are given as suggestions and examples. You will find more examples in the manual. The described procedures with specific instruments can of course be transferred to others which are not mentioned here.



Drums & Percussions

Processing drum and percussion sounds is probably the Transient Designer’s most typical range of application, both from samples to live drum sets:

Emphasize the attack of a kick drum or a loop to increase the power and presence in the mix by increasing ATTACK.



Drums Ambience

If your drums happen to sound as if the room mics have been placed in a shoe closet, the Transient Designer can immediately turn that sound into the ambience of an empty warehouse. Just send the room mic through the Transient Designer module and crank the ATTACK control to emphasize the first wave.Now slowly increase SUSTAIN values to bring up an “all-buttons-in- 1176-sound“ room tone—but without pumping cymbals.



Bass: Staccato vs. Legato

Speaking of bass: Imagine a too sluggishly played bass track ... you may not have to re-record it: Reduce the SUSTAIN until you can hear clear gaps between the downbeats—the legato will turn into a nice staccato, driving the rhythm-section forward.



Features

  • Extended original Transient Designer circuitry
  • NEW: Parallel MIX control - blend between "Wet" and "Dry"
  • ATTACK: amplify or attenuate attacks
  • SUSTAIN: Prolong or shorten sustain
  • Differential Envelope Technology (DET)
  • Output level control
  • ON/Bypass switch
  • Signal LED
  • Single-Slot 500 series rack module
  • Made in Germany
SPL

About Manufacturer

Sound Performance Labs! Full Range of Analog, Tube, and Digital rack gear with an innovative twist. With their most famous transient designer product, SPL has quickly become a household name in both the recording and live sound arenas.

Specifications

Input:

  • Balanced
  • Impedance: 20kOhm
  • Max. Input level: +22 dBu


Output:

  • Balanced
  • Impedance : 150 Ohm
  • Max. Output Level: +22 dBu


Frequency Range: 10Hz -100kHz

Noise: -93 dBu (A-weighted)

Dynamic Range: 116 dB

CMRR: > -80 dBu

(at 1 kHz, 0 dBu input level, unity gain)

THD: 0,03%

(at 0 dBu input level, unity gain)



Housing: Single Slot 500er-Serie rack modul

Weight: 0,65 kg /1.43 lbs



0dBu = 0,775V. Specifications subject to change without notice.
