From SPL

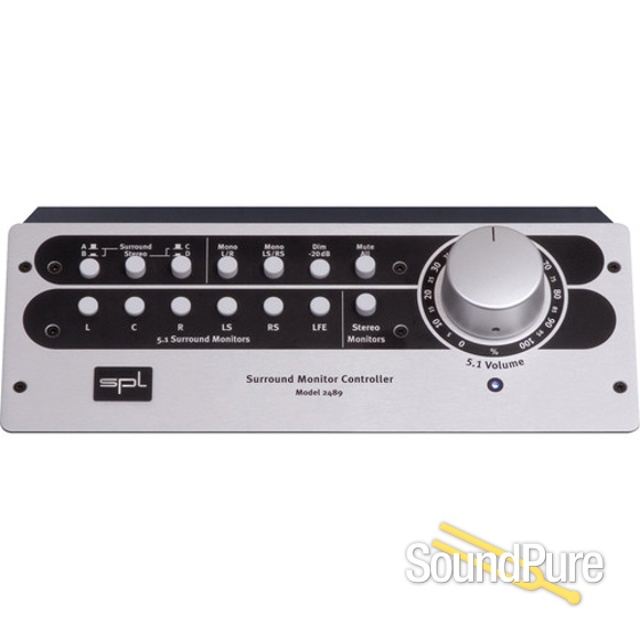

Source Selection & Speaker Management
Two 5.1 and two stereo input sources can be connected to the SMC. This is important because in monitoring, two productions are always compared with each other.
The DB25 input is used to connect the DAW balanced. In output routing, channels 1-6 should be selected for 5.1 mixing and 7/8 for stereo mixing.
DVDs are often played back on standard DVD or Blu-Ray players for comparison purposes. Their consumer nominal level of -10dBV, which corresponds to a level difference of 7.8dB to the 0dBu studio level, is compensated in the SMC to make loudness comparable.
The front and rear stereo pair can each be switched to mono.
Mute All is important when the DAW is sending full-scale audio garbage due to a problem. To protect the speakers and your hearing you can quickly mute here.
Each loudspeaker can also be switched on/off individually.
The balanced inputs are passively looped through to the Slave Out DB25 socket. Here, for example, a multi-channel metering can be connected.
The speaker outputs are balanced with TRS jacks. If mono jack plugs (TS) are used, the signal is automatically unbalanced.
Analog inputs & outputs; DB25 & TRS Jack (balanced), RCA
- Maximum input gain: 21 dBu
- Input impedance (DB25 & Jack): 50 kΩ
- Input impedance (RCA): 10 kΩ
- Output impedance (Jack): 100 kΩ
- Frequency range (-3 dB): 10 Hz – 100 kHz
- THD +N (10 Hz – 22 kHz, 18 dBu): 0.002 %
- Noise (A-weighted): -98 dBu
- Common mode rejection (1 kHz): 70 dBu
- Dynamic range: 119 dB
Internal Linear Power Supply with Toroidal Transformer
- Operating voltage for analog audio: +/- 15 V
- Operating voltage for relays and LEDs: +12 V
Mains Power Supply
- Mains voltage (factory set): 230 V AC / 50 or 115 V AC / 60 Hz
- Fuse for 230 V: T 315 mA
- Mains voltage (selectable): 115 V AC / 60 Hz
- Fuse for 115 V: T 630 mA
- Power consumption: max. 10 W
Dimensions & Weight
- W x H x D (width x height x depth): 272 x 91 x 220 mm, 10.71 x 3.58 x 8.66 inch
- Unit weight: 2.3 kg, 5.07 lbs
- Shipping weight (incl. packaging): 3.25 kg, 7.17 lbs
Reference: 0 dBu = 0,775V. All specifications are subject to change without notice.
