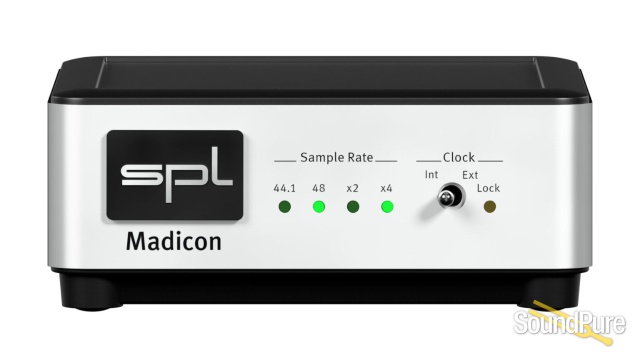

SPL Madicon USB / MADI Interface  From SPL

Madicon is a MADI digital audio interface that connects up to 64 input and 64 output channels to the computer via USB.

SPL

Manufacturer's Description from SPL

  • USB Audio Interface
  • Maximum 64 input and 64 output channels via MADI
  • Additional optical stereo output (Ch1/2)
  • 24 bit / up to 192 kHz
  • Hi-Speed USB with detector LED
  • USB bus powered
  • Internal/External Clock Switch
  • External Clock Lock LED
  • Windows & Mac
  • Zero-latency monitoring (FPGA Monitoring Mixer)



SmartMADI

  • MADI becomes more user-friendly, simple and modern
  • SPL’s Madicon and Madisons can now be connected in series (daisy chaining) like Audio-Over-IP devices, and are easier to configure and more reliable.
  • An additional MADI Router for more than two MADI devices is not necessary
  • The sample rate is now transmitted via the MADI stream and Madisons follow automatically – very handy



Monitor Mixer

  • Control Room Mixer and six additional individual headphone mixers
  • Intuitive and fast workflow
  • Talkback
  • 128-channel MADI stream metering
  • MADI splitter – one signal can be distributed to 63 other channels
  • Record without a DAW – directly to the hard disk!
  • Automatic arming
  • Displaying the remaining recording time
  • Automatic naming of the files
  • Solo auditions



MADI Train & Device IDs

This drawing explains the device ID settings when up to four Madison with SmartMADI are connected to the Madicon and a DAW in a daisy-chain connection at single, double and quadruple sample rates.



SPL

About Manufacturer

Sound Performance Labs! Full Range of Analog, Tube, and Digital rack gear with an innovative twist. With their most famous transient designer product, SPL has quickly become a household name in both the recording and live sound arenas.

Specifications

Inputs & outputs; MADI, USB, Toslink
  • Optical MADI port
    • Standard 64/High
  • Optical Toslink port (F06)
    • Max. 192 kHz
  • USB 2.0 High Speed, Bus-Powered, Power consumption (max)
    • 2.5 W
Dimensions & Weight
  • W x H x D (width x height x depth)
    • 100 x 42 x 100 mm
    • 3.94 x 1.65 x 3.94 inch
  • Unit weight
    • 0.25 kg
    • 0.55 lbs
  • Shipping weight (incl. packaging)
    • 0.4 kg
    • 0.88 lbs
