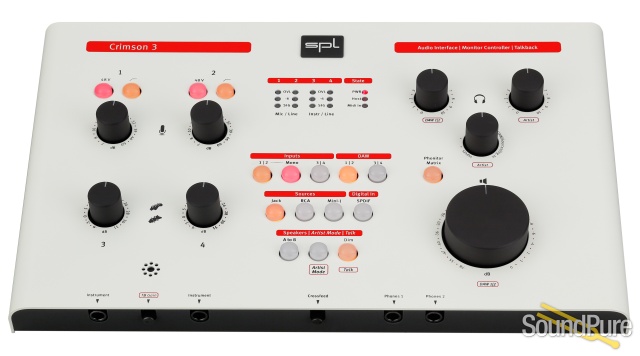

SPL Crimson 3 (white) - Interface w/ Phonitor Matrix  From SPL

Input Sockets

• Mic Inputs 1, 2: XLR
• Line Inputs 1, 2: 6.3mm TRS
• Instrument Input: 6.3mm TS
• Source 1 Input: 6.3mm TRS
• Source 2 Input: RCA
• Source 3 Input: Mini-J

Output Sockets

• Speaker Out A: XLR
• Speaker Out B: 6.3mm TRS
• Headphone Outputs 1 and 2: 6.3mm TRS

Input Impedances

• Microphone Input: 10kohms
• Line Inputs: 10kohms unbalanced, 20kohms balanced
• Instrument Input: 1.1Mohms
• Source 1 Input: 10kohms unbalanced, 20kohms balanced
• Source 2 Input: 10kohms
• Source 3 Input: 10kohms

Output Impedances

• Speaker Outputs A and B: 75ohms unbalanced, 150ohms balanced
• Headphone Outputs: 33ohms

Maximum Input Levels

• Mic Inputs: +14.5dBu (Gain fully left)
• Line Inputs: +22.5dBu
• Instrument Input: +24dBu (Gain fully left)
• Source 1 Input: +22.5dBu
• Source 2 Input: +22.5dBu
• Source 3 Input: +22.5dBu

Maximum Output Levels

• Speaker Output A and B: +22.5dBu

Microphone Preamplifiers (balanced, XLR)

• Gain Control: +7dB - +60dB
• Frequency Response: 10Hz - >200kHz
• Noise (unweighted, 30dB gain, input termination 150Ohm): -90dBu
• Equivalent Input Noise: -128dBu
• Common Mode Rejection Ratio: < -70dBu
• THD+N Ratio@1kHz (30dB gain, input termination 150Ohm): 0.003%
• High Pass Filter: fg = 80Hz, 6dB/Oct.
• Phantom Power: 48Volt

Instrument Input (Unbalanced, 6.3mm TS)

• Gain Control: -6dB - +31dB
• Frequency Response: 10Hz - >200kHz
• Noise (unweighted, unity gain, input termination 100kOhm): -85dBu
• THD+N Ratio@1kHz (unity gain, input termination 100kOhm): 0.005%

Line Input (balanced, 6.3mm TRS)

• Frequency Response: 10Hz - >200kHz
• Noise (unweighted, unity gain, input termination 600Ohm): -95dBu
• Common Mode Rejection ratio: < -60dBu
• THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.002%

Source 1 Input (balanced, 6.3mm TRS)

• Frequency Response: 10Hz - >200kHz
• Noise (unweighted, unity gain, input termination 600Ohm): -95dBu
• Common Mode Rejection ratio: < -60dBu
• THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.002%

Source 2 Input (unbalanced, RCA)

• Frequency Response: 10Hz - >200kHz
• Noise (unweighted, unity gain, input termination 600Ohm): -90dBu
• Noise (unweighted, -10dBV, input termination 600Ohm): -85dBu
• THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.003%
• THD+N Ratio@1kHz (-10dBV, input termination 600Ohm): 0.003%

Source 2 Input (unbalanced, Mini-J)

• Frequency Response: 10Hz - >200kHz
• Noise (unweighted, unity gain, input termination 600Ohm): -88dBu
• Noise (unweighted, +15dB, input termination 600Ohm): -76dBu
• THD+N Ratio@1kHz (unity gain, input termination 600Ohm): 0.003%
• THD+N Ratio@1kHz (+15dB, input termination 600Ohm): 0.005%

Headphone Outputs (stereo, 6.3mm TRS)

• Frequency Response: 10Hz - >200kHz
• Power@0dBu: 47Ohm load: 13mW/300Ohm load: 1,7mW/600Ohm load: 1.0mW
• Power max: 47Ohm load: 670mW/300Ohm load: 265mW/600Ohm load: 150mW
• THD+N Ratio@1kHz (Power@0dBu): 47Ohm: 0.0026%/300Ohm: 0.002%/600Ohm: 0.002%

AD Conversion (ASIO direct)

Noisefloor (A-weighted)

• 44.1/48kHz: -113dBFS
• 88.2/96kHz: -110dBFS


Dynamic range

• 44.1/48kHz: 113dB
• 88.2/96kHz: 110dB

THD+N ratio @ 1kHz (-1dBFS):

• 44.1/48kHz: 0.002%
• 88.2/96kHz: 0.0025%

0dBFS = +15dBu

DA Conversion (ASIO direct)

Noisefloor (A-weighted)

• 44.1/48kHz: -109dBFS
• 88.2/96kHz: -107dBFS

Dynamic range

• 44.1/48kHz: 109dB
• 88.2/96kHz: 107dB

Power Supply

• External Power Supply, Input 100–240V AC/50–60 Hz; Output 12V DC/1,5A
• Internal Power Supplies: Audio: +/-17V, Digital: +5V and +3,3V
• Power Consumption: 16.8 Watt

Dimensions

• H x W x D in mm: 67x330x212 cm, 2.64x12.99x8.35 inch



 Weight

• 2,8 kg, 6.17lbs

0dBu = 0.775V. Subject to change without notice.
