Item selected is sold (details below). Related products available now:

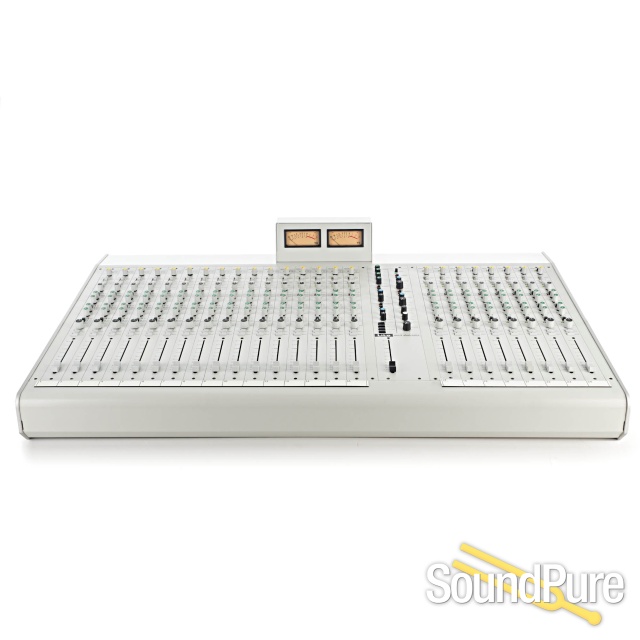

Speck LiLo 24 Mixer Console - Used From Speck
A very clean, used, LiLo 24 Mixer Console. Local Pickup Only!
"Gone, Baby, Gone"
This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.
We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.
Want to know if one lands?
Notify MeWant to discuss what's coming?
Manufacturer's Description from Speck
What is the LiLo Mixer?
The LiLo is a high-definition desktop analog line mixer for routing and blending your external gear. Short for Line-in/Line-out, the LiLo was designed as a "quiet-transparent" platform that allows you to build a mixing system using the gear you already own.
Design Philosophy

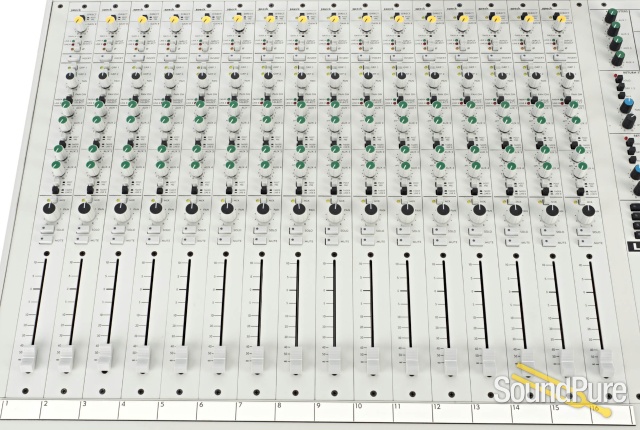

One glance at the LiLo and you will realize that you are not looking at a conventional mixer. The first thing you will notice is the minimalist layout of the LiLo. This unpretentious design lacks mic preamps, equalizers, and is in short supply of knobs and switches. In their place, we bring you a well-designed 16 or 24 channel mixer with unmatched signal routing, generous amounts of headroom, and a transparent signal path.
The Lilo has been designed with the specific idea that you want to connect and mix your external gear and DAW without the limitations imposed by traditional recording consoles.
The In's & Out's

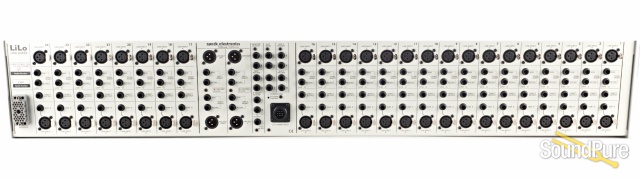

All audio inputs, outputs, and inserts are fully balanced and available on XLR and TRS connectors.
Connect the LiLo to virtually any line level source: balanced, unbalanced, transformer, or transformer-less.
The LiLo has high headroom that will handle balanced signals up to +28dBu. Balanced transformers are standard on the main outputs and are optional on other outputs
The Designer
The LiLo is the work of Vince Poulos, the designer, and owner of Speck Electronics. Speck Electronics has been producing quality professional audio products for over 40 years. Founded in 1973, Speck Electronics has consistently provided innovations in audio products for all segments of professional recording and touring. Other products include the X.Sum rack mixer, the ASC and ASC-V equalizers, and MicPre 5.0 preamp.
About Manufacturer
Speck Electronics has been producing quality audio mixers, equalizers, and preamps for all segments of professional audio recording and touring for over 25 years. Our products include the Xtramix compact audio mixer, the Model ASC equalizer, and MicPre 5.0 microphone preamp. Our future goals are to expand our product line with analog hardware complementary with the current line of DAW's and Desktop Recording.
Specifications
Frequency Response (12 dB gain)
10Hz-30kHz (+0/-.5dB)
THD+n (Gain 12, Output +24dBu)
.0024%
Crosstalk (1kHz)
-100dBu (Channel to channel)
-95dBu (Input to Mix out, channel muted)
-89dBu (Input to Mix out, channel fader off)
Noise (22Hz-22kHz)
-102dBu (Residual output noise)
-81dBu (16 channels routed, faders up)
-84dBu (16 channels routed, faders off)
-90dBu (16 channels routed, faders off,
and muted)
Maximum input level
+28dBu
Maximum output level
+28dBu at active outputs
+24dBu at transformer outputs
+28dBu at active outputs
+24dBu at transformer outputs
Output Impedance
60 Ohms (All Active-balanced outputs)
600 Ohms (All Xformer-balanced outputs
60 Ohms (All Active-balanced outputs)
600 Ohms (All Xformer-balanced outputs
Dimensions (24 channel mixer)
WxDxH=40.5" x 24.6" x 10"
(1030mm x 625mm x 254mm)
WxDxH=40.5" x 24.6" x 10"
(1030mm x 625mm x 254mm)
Shipping Weight (24 channel)
85 Lbs (38kg)
85 Lbs (38kg)
