Manufacturer's Description from Speck

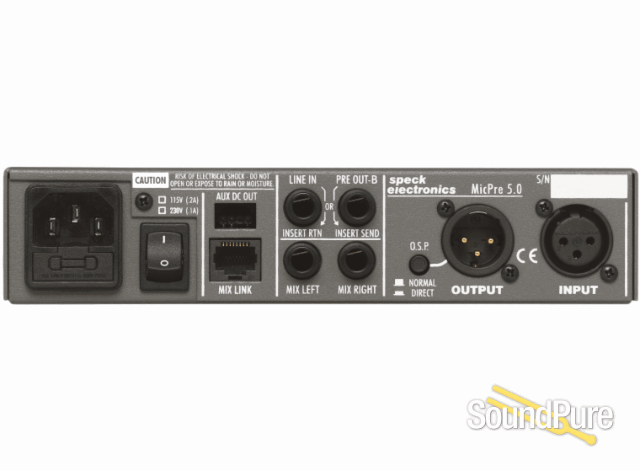

The "MicPre 5.0" is a complete single channel microphone preamp that offers features and flexibility for use in the most serious recording applications.

The signal path consists of a matched discrete transistor front-end, premium IC's, and transformer output stage. With the push of a button, the MP5.0 can change from an "Transformer-Balanced" output to a "Active-Balanced" output.

The compact 1/2 rack format of the MP5.0 can easily be rack mounted and combined with the Speck Model ASC equalizer to create a highly functional outboard channel strip.

The MicPre 5.0 also includes a mix section that makes it perfect for DAW's and remote recording.

Flexible Signal Routing

The MP5.0 is more than a mic pre. It gives you a surprising number of signal routing alternatives. Just use your imagination when plugging up the MP5.0.

Since the MP5.0 works with balanced or unbalanced gear, you will not be stuck looking for the proper cable or worrying about level compatibility between dissimilar gear.

What Is Mix Node?

The mix section of the MicPre 5.0 provides a separate left/right mix out with level, pan and mute.

With only a simple interface cable, this mix section, or "Mix Node" can be linked with any number of MP5.0's to form a fully integrated mix section.

In many situations such as desktop or location recording, this expandable feature of the MP5.0 can eliminate the need for a separate audio mixer.

Key Features

·                     Matched discrete transistor input and transformer output.

·                     70 dB of preamp gain.

·                     Precision stepped gain control with variable trim control.

·                     Variable high pass filter.

·                     Mix section can be "linked" with additional MP5.0's.

·                     Transformer "and" active balanced outputs.

·                     High resolution 10 segment LED VU meter.

·                     All input, output, and insert connectors are balanced.

·                     Can be combined with the Model ASC EQ to form a Channel Strip

The Designer

The ASC is the work of Vince Poulos, the designer and owner of Speck Electronics.

Speck Electronics has been producing quality professional audio products for over 35 years.  Founded in 1973, Speck Electronics has consistently provided innovations in audio products for all segments of professional recording and touring.

Other products include the LiLo mixer, the X.SUM rack mixer, the ASC-V 500 series equalizer, and MicPre 5.0 preamp.

Speck Electronics

About Manufacturer

Speck Electronics has been producing quality audio mixers, equalizers, and preamps for all segments of professional audio recording and touring for over 25 years. Our products include the Xtramix compact audio mixer, the Model ASC equalizer, and MicPre 5.0 microphone preamp. Our future goals are to expand our product line with analog hardware complementary with the current line of DAW's and Desktop Recording.

Specifications

Gain Range (Mic)
70 dB total
+10 to +60dB in 5dB steps
-10/+10 variable trim

Gain Range (D.I.)
-20 to +40 dB in 5 dB steps

THD+N (Gain +40, Output +12dBu)
002% nominal

Noise EIN (22Hz-22kHz)
-126 dBu (150 ohm, 60dB gain)

Freqency Response
10Hz-200kHz (+0/-3dB)

Mic input impedence(10Kz)
4.6k ohms

D.I. input impedence
50k ohms

Maximum input level
+18dBu (without pad)
+30dBu (with 20dB pad in)

Max. output level (10k load)
+28dBu at active outputs
+24dBu at transformer output

HP Filter
30Hz-250Hz (12dB/octave)

Phantom Power
+48V regulated

Dimensions
HxWxD=1.75" x 8.5" x 8.00"
(44mm x 216mm x 203mm)

Shipping Weight
6Lbs (2.7kg)

Power Requirements
100-120 VAC 50-60Hz
220-240 VAC 50-60Hz
