Analogue In-Line Console For Hybrid Production Environments
Special ends:
$54,999.99
Price: $54,999.99

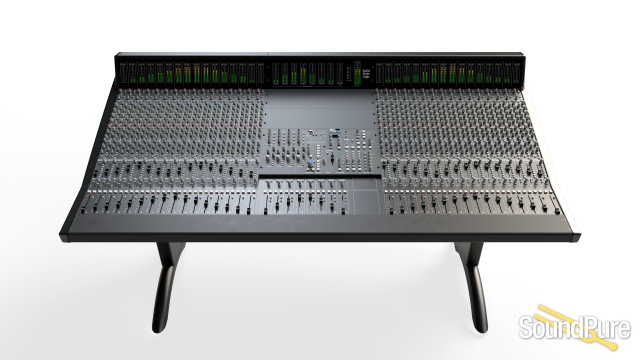

As the latest in a long heritage of SSL studio mixing consoles, ORIGIN has traditional analogue studio workflow at its heart whilst providing the perfect partner for a modern DAW driven ‘hybrid’ production studio. Niall Feldman, SSL Director of New Products talks you through the mix of traditional and cutting edge analogue that is ORIGIN.
As the latest in a long heritage of SSL studio mixing consoles, ORIGIN has traditional analogue studio workflow at its heart whilst providing the perfect partner for a modern DAW-driven ‘hybrid’ production studio. Its classic design looks back to the origin of in-line consoles for signal flow inspiration, incorporating cutting-edge analogue developments to deliver a unique sonic signature that’s still unmistakably SSL.
ORIGIN is more than just the culmination of four decades of technical innovation. Because of our deep knowledge of workflow and studio integration, we also understand that a console has to provide the immediacy and well-executed ergonomics that will inspire and engage a modern studio environment. We believe ORIGIN does this and more; leading the way with a fresh look at how an analogue console compliments the latest digital tools and production techniques.
The legendary SSL consoles of the 70s and 80s helped define studio production. ORIGIN takes these principles and combines them with a modern feature-set that bridges the gap between digital production and analogue console workflow.
A purely analogue inline design, with 16 buses, E-Series EQ and classic Bus Compressor, ORIGIN breathes new life into a design classic across the whole console. The new PureDrive™ mic pre inherits the clarity and purity of previous SSL Mic Pre designs, switching character to a warm, harmonically-rich and driven tone that varies with mic pre gain.
The new mix bus and mix amp architecture delivers an amazingly-low noise floor along with huge headroom. The result is a mix bus that retains the classic SSL sound, whilst bringing the breadth and space to mixes that engineers and producers love from analogue summing.
Balanced insert points per channel path (both large and small fader), dedicated channel direct outputs, stem-ready 0dB fader bypass switches, plus a new configurable centre section, make ORIGIN an ideal way of adding console workflow to a modern production studio.
The adjustable centre section features 12U of rack space, allowing the modular 6U master tile to be repositioned to create space for software controllers, a computer keyboard or additional outboard processing. The meter bridge can also be lowered into the centre section, enabling a screen to be positioned so all your production software can be viewed just where you need it.

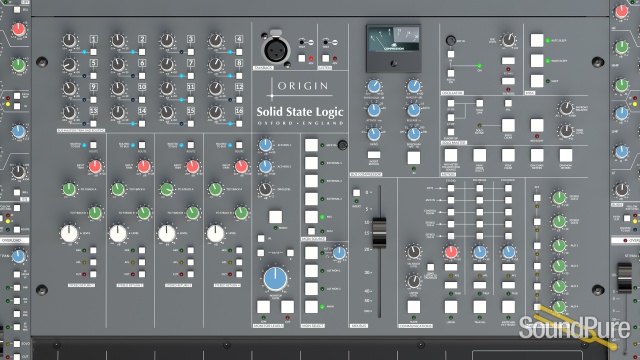

The Master Control section is the heart of ORIGIN, designed with the easily accessible features and tools needed for fast and creative session workflow. Taking sustainability, ergonomics, modern gain-staging and communication requirements into consideration, ORIGIN offers a reassuringly familiar Master Control feature-set with some ahead-of-the-curve functionality.
SSL Bus Compressor - The classic SSL Bus Compressor is a fundamental feature of SSL Master Control tiles, and sees a number of enhancements in ORIGIN. Offering new compression ratios, insert return and built-in side chain filter, the legendary mix bus glue (and punch) is ready for even the most modern of productions.
Bus Trim Masters and Routing - Central track bus routing matrix, featuring sixteen +/- 10dB Trims for the track buses, with a routing assign switches for each bus.
Auto Sleep - The unique Auto Sleep mode enables automatic detection of prolonged inactivity to put the console in stand-by, reducing power consumption and making ORIGIN significantly more efficient than legacy SSL consoles.
Solo Master Section - Comprehensive Solo controls provide choice of Solo-In-Front with Mix balance, Solo-In-Place for Large, Small & Group faders and PFL options. Solo Level, Solo Clear and Red Light Switch complete the available options.
Mix Bus - The mix bus features a high-quality 100mm fader, with fully balanced switched Insert for external bus processing.
Monitoring - The monitoring section features independent Trims for Alternate Monitors 1 & 2, variable DIM level, MONO plus Left & Right MUTES and øL polarity switch. You can select your monitor source from the main mix, three external stereo sources or a front panel stereo 3.5mm jack input, with a Sum switch allowing selected sources to be listened to simultaneously.
Returns - Four Stereo Return Inputs enable ORIGIN to route to Mix and Track Buses with level controlled feeds to Stereo Foldback Outputs A & B.
E-Series '242' EQ
The E-Series '242' EQ was probably the most popular EQ from the SL 4000 series console range, and it's back for ORIGIN, which uses this iconic SSL design for it's channel EQ.
ORIGIN features the acclaimed E-Series four-band parametric EQ on each of its 32-channels, with variable Cut/Boost per band, HF and LF Bell/Shelf switches, independent sweepable HPF on every channel and unmistakable '242' style growl and deep low end.
PureDrive™
ORIGIN features a completely new microphone pre-amplifier design that inherits the clarity and purity of previous SSL mic pre's, with the added flexibility of switching character to a warm, harmonically-rich and driven tone that varies with gain. The ideal solution to 'perfect' digital system and hybrid workflow.
PureDrive™ is a new discrete transistor mic-pre based around modern FET components. The result is an ultra-clean, ultra-low noise pre amp, that is fast and offers stunning resolution when in 'Pure' mode. Hit the switch and the 'Drive' circuit is engaged, adding gain dependent non-linear harmonic saturation.
With the evolution of more sophisticated digital audio workstations and new hybrid approaches to session workflow, ORIGIN takes a fresh look at what an analogue console provides to complement these sophisticated digital tools.
While ORIGIN has a familiar surface, its design makes it adaptable for many different production scenarios. The 19” rack based ‘modular’ centre section allows the console to adapt to different control priorities and adds space for custom outboard processing. For example, the addition of a central 500 series rack provides a way to accommodate flexible analogue processing from a number of manufacturers, the ability to move the centre section allows for workstation controllers to be centrally located, even the 3U centre meter panel can be moved to allow a workstation monitor to move closer to the engineer without obscuring the main meters.
From groundbreaking audio consoles to innovative video production systems, Solid State Logic has evolved to become the world's leading manufacturer of analogue and digital audio consoles and provider of creative tools for film, audio, video and broadcast professionals. With more than 3000 SSL-equipped studios and facilities operational today, the excellence of SSL consoles is universally recognised for unrivalled sonic quality, superb ergonomics, outstanding automation and an international support infrastructure second to none. Founded in 1969, SSL has since expanded to its present 15 acre science park in Oxfordshire, England. SSL's unrivalled resources, including R&D, manufacturing, training, service and product support, operate in a unique high technology, customer oriented environment. The company invents, designs and manufactures technology for the creative manipulation of sound. Users and industry experts from all over the world visit SSL's Oxford HQ to consult with SSL audio experts and evaluate SSL equipment. There are more than 3000 SSL systems in service around the world. Internationally famous classical musicians and popular artists such as Bryan Adams, Peter Gabriel, Whitney Houston, Blur and Sting, choose SSL equipment to extend their creativity and ensure the highest possible quality of their finished product. No wonder that SSL recording consoles are the first choice of leading producers, and are found in the most prestigious recording studios around the world. Independent post production companies working for multinational advertising agencies use SSL equipment to produce global advertising campaigns for the world's leading commercial brands. Long-form video and major TV productions benefit from the unique qualities of SSL products the world over. Leading national and international broadcasters have similarly embraced the company's innovative technology to streamline operations and ensure high quality output. The client list reads like a who's who in Radio and Television. It includes BBC UK, NHK Japan, ABC USA, Fox USA, NBC USA, CBS USA, NDR Germany, Swedish Television, RAI Italy and NOB Netherlands. SSL employs over 160 people worldwide. Home to the most sophisticated and comprehensive audio demonstration facilities in the world, SSL's Oxford headquarters also house a purpose built training facility where future generations of operators are prepared to fully exploit the technological and creative advantages offered by SSL equipment. SSL is characterised both by its substantial Research and Development resource and a global commitment to customer support and service. Such assurance is extended via SSL's regional offices in Los Angeles, Milan, New York, Paris and Tokyo, with additional support provided by an international network of highly qualified distributors. The key to the company's success lies in its products; powerful and innovative proprietary technology is used to create dedicated solutions for the recording and manipulation of sound in highly demanding environments. In conditions where sonic purity cannot be compromised against the inevitable demands of high workloads, and where dauntingly inflexible deadlines are accepted as the norm, SSL equipment is synonymous with reliability and excellence.
