Nucleus2 is a unique proposition for the professional project studio with a perfect blend of advanced DAW control, transparent SuperAnalogueTM monitoring with talkback, SSL console grade mic pres, and pro quality Dante audio interface. There is no other product available which offers the professional producer all of these elements, with benchmark audio performance and elegant ergonomics. Not only is it unique but Nucleus2 is also outstanding value; these elements bought separately would cost more and deliver a less elegant solution.

Nucleus2 is a compact, portable desktop unit that creates a comfortable, efficient, hands on operating environment for DAW based Music and Film/TV Post production. It provides everything you need to record and monitor audio and to control your DAW quickly and efficiently without resorting to your mouse. Nucleus2 streamlines your workflow and helps you focus on your sound, not your screen.

Overview

Excellent visual feedback via self illuminating buttons, LED's and DAW Level Metering

Compatible with ProTools, Logic, Cubase/Nuendo and all major DAW applications

Switch between 3 connected DAW's with a single button press

Two banks of 8 channel controls plus centre section controls

Touch sensitive 100mm motorised faders

Ethernet connected DAW Controller for professional project studios

Digital Scribble Strips with assignable V-Pots and soft keys

Completely user customisable DAW & Key Command mapping

Remote Logictivity Browser for effortless configuration

SD card for non volatile project storage

Large heavy duty transport buttons and high quality jog/shuttle wheel

Digital S/PDIF I/O to the AD/DA of the audio interface

Two headphone outputs and one iJack monitor input

Standard 1/4" Jack footswitch connection

A unique audio nerve centre for your project studio

Benchmark SuperAnalogueTM quality output to 2 stereo sets of +4dBu monitor outputs

High quality Dante audio interface (44.1kHz – 96kHz, 24 Bit) over ethernet

Zero latency Rec monitoring with wet/dry control to balance input and DAW playback

Two Combi XLR mic/line/instrument level inputs to audio interface and monitor outputs

Insert send/return connections switched between inputs and DAW playback for mixdown

SSL SuperAnalogueTM Mic Pre's, identical to those used on SSL Duality and AWS consoles

Mic inputs have 80Hz High Pass Filters, Phase Reverse and Phantom Power

Additional "external" SuperAnalogueTM input monitor path for another audio interface

Three USB sockets for use as a 3 port USB hub

Dual Ethernet ports for incorporating additional Dante devices into your studio

DAW Control

Nucleus2 DAW Control is based on the concepts developed for the SSL Matrix. Up to 3 different DAWs can be connected simultaneously and you can switch between them with a single button push. Nucleus2 uses either HUI or MCU protocols ensuring compatibility with all leading DAW applications including Pro Tools, Logic and Cubase/Nuendo and can transmit MIDI CC data. Nucleus2 provides a complete set of dedicated and assignable hardware controls that is easily customised to suit individual user preferences, for all major DAW and plug-in parameters.

Simple Connectivity

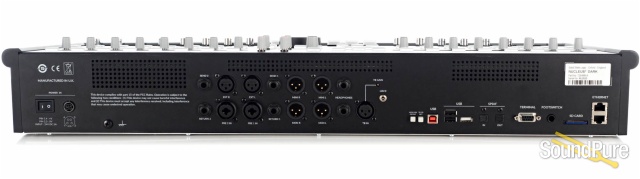

Nucleus2 connects to your computer via high speed Ethernet for DAW control and Dante Audio. It also features a USB connection and appears to your host computer as a standard keyboard enabling key command emulation. There are three USB ports on the back which operate as a USB hub. A standard jack footswitch connection is also included and there is also an SD card slot for Profile storage. Configuration and mapping of Key commands and DAW Commands is via a remote "SSL Logicitivity" browser, which allows differing control profile sets to be stored and recalled.
