Solid State Logic Matrix2 Delta  From SSL

Give your studio a new heart!

Solid State Logic

SSL Matrix - Product Tour

A somewhat more detailed tour of the operational capabilities of Matrix

  • Signal Chain
    • Solid State Logic Matrix2 Delta

Manufacturer's Description from SSL

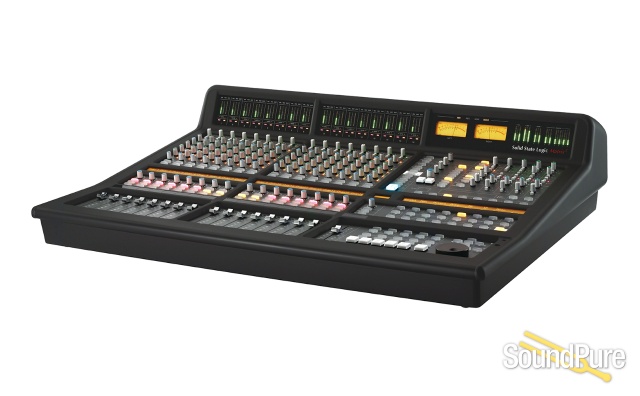

Matrix2 is the ideal console/controller for your hybrid production studio. It is the most elegant solution available today for those who wish to incorporate the sonic advantages of SSL summing and a collection of boutique analogue mic pre's & processors into their DAW centred studio workflow. The analogue side of Matrix2 combines: a 40 input SuperAnalogue™ summing mixer, fully featured Monitor Switching & Talkback and an in-built 'Insert Router' which enables individual or chains of analogue outboard processors to be inserted quickly and easily. The 16 + 1 fader hardware control surface swaps with a single button push from control over the analogue console signal path to functioning as a comprehensive multi-layer DAW control surface.

Designed to be at the heart of your everyday creative process, Matrix is built to meticulous SSL hardware standards, to withstand even the most intensive studio use. Fully equipped to partner your monitors, workstations and outboard gear, Matrix lets you shape your project studio around the way you work.



Mixing and Monitoring

Alongside its integration of your analogue and digital equipment, Matrix2 is a first-class SSL mixer drawing on our 30 years of analogue console design. The essential functions of recording and mixing; routing, level measurement and monitoring are organised and arranged to make everything available at your fingertips to streamline the entire recording and mixing process.

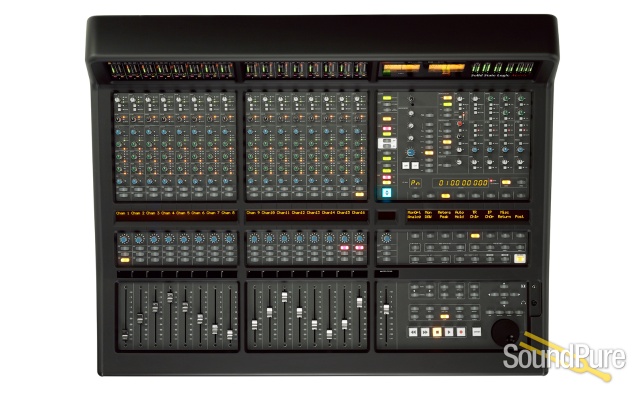

Matrix2 analogue architecture provides 32 channel inputs (each of the 16 channel strips has main and alt inputs). Each of the 16 channels has a direct output designed to be used primarily as a DAW record output. There are two Stereo Mix Busses and four Stereo Aux Returns with full stereo mix bus routing bring the total available inputs to mix to 40.

Powerful monitoring is a central feature of Matrix with independent Main and Mini monitor outputs, Artist Monitor output with independent EQ & source selection and three External Monitor inputs with source summing.



Integrate your analogue outboard

Imagine being able to access your favourite combinations of analogue outboard equipment and apply them to your project without ever leaving the console.

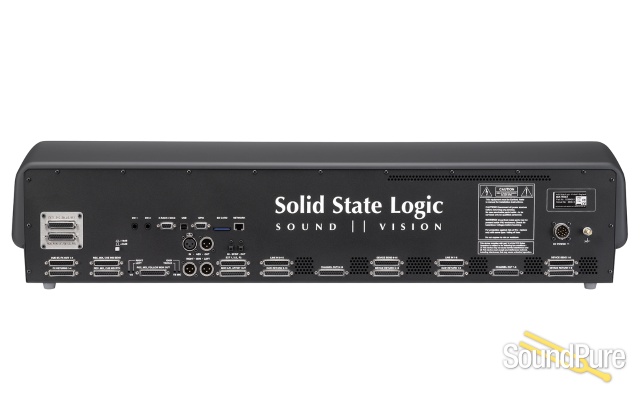

The Matrix2 Insert Router is like having a supremely versatile and controllable patch bay built into the console. You physically connect up to 16 hardware devices to the 16 insert points on the console (using rear panel standard D-Sub connections) but unlike a traditional console you are able to select which of these devices are applied to which console channels 'on the fly'. The system even lets you build 'chains' of processors so that you can immediately recall and insert a favourite combination of mic pre, EQ and Dynamics... or instantly swap individual processors within the chain... or instantly change the process order of the chain...without leaving the console. With Matrix2 Devices and chains can either be created and inserted using hardware buttons on the console surface or a simple drag and drop software interface running on a computer. Matrix2 is the closest thing you will find to using hardware devices like software plug-ins within your DAW. The workflow of the Insert Router may feel like software but the signal path is 100% SSL SuperAnalogue™ hardware.



δelta-Control (δ-Ctrl)

The unique new SSL console automation system unites the very best of automation in the analogue console domain with DAW based workflow.

The δ-Ctrl Single Fader Plug-in is a native AAX/AU/VST/VST3 plug-in that allows automation of Matrix channel volume as if it were a DAW plug-in. Inserting 16 instances into the DAW session will allow control of volumes and cuts for all 16 Matrix channels. The automation system in the DAW is used to record and playback Matrix volume control data entered either directly from the console faders or from the fader in the plug-in GUI. Matrix’ Volume and Mute switch are represented as plug-in parameters in the δ-Ctrl plug-in GUI and their automation data is recorded to the automation lane of the selected DAW channel. In playback, the plug-in converts the stored automation data from the DAW into δ-Ctrl messages and routes these back to Matrix via the network connection.



16-Fader Matrix Plug-In

The 16-fader Delta Control Matrix plug-in provides compatibility to Logic users, as well as offering an alternative workflow to the Single Fader plug-in users. The plug-in is available in all formats including AAX/AU/VST3/VST. The 16-fader plug-in allows users to write automation for Matrix’ 16 channel faders, mutes, and FX sends from one plug-in window, solving Logic’s inherent limitation of only being able to write data to one plug-in at a time.



Control your DAW

At the heart of your studio, Matrix2 reaches out to give comprehensive control over your DAW environment, reinstating the console to its role as creative hub.

With HUI or MCU modes, the 16 motorised faders and channel controls provide complete hands-on control over your DAW mixer, allowing you to enjoy mixing on a tactile, fully-featured control surface. Additionally, Matrix2 gives you access to transport & navigation functions, plug-in & virtual instrument parameters, and essential DAW commands, allowing you to work quickly and easily using just the console surface.

For crucial track adjustment, our unique 'Focus Fader' mode enables the Master Fader (and accompanying V-Pot) to control any channel within your DAW environment that is not part of the currently selected DAW layer, perfect for time saving in mixdown.

Solid State Logic

About Manufacturer

From groundbreaking audio consoles to innovative video production systems, Solid State Logic has evolved to become the world's leading manufacturer of analogue and digital audio consoles and provider of creative tools for film, audio, video and broadcast professionals. With more than 3000 SSL-equipped studios and facilities operational today, the excellence of SSL consoles is universally recognised for unrivalled sonic quality, superb ergonomics, outstanding automation and an international support infrastructure second to none. Founded in 1969, SSL has since expanded to its present 15 acre science park in Oxfordshire, England. SSL's unrivalled resources, including R&D, manufacturing, training, service and product support, operate in a unique high technology, customer oriented environment. The company invents, designs and manufactures technology for the creative manipulation of sound. Users and industry experts from all over the world visit SSL's Oxford HQ to consult with SSL audio experts and evaluate SSL equipment. There are more than 3000 SSL systems in service around the world. Internationally famous classical musicians and popular artists such as Bryan Adams, Peter Gabriel, Whitney Houston, Blur and Sting, choose SSL equipment to extend their creativity and ensure the highest possible quality of their finished product. No wonder that SSL recording consoles are the first choice of leading producers, and are found in the most prestigious recording studios around the world. Independent post production companies working for multinational advertising agencies use SSL equipment to produce global advertising campaigns for the world's leading commercial brands. Long-form video and major TV productions benefit from the unique qualities of SSL products the world over. Leading national and international broadcasters have similarly embraced the company's innovative technology to streamline operations and ensure high quality output. The client list reads like a who's who in Radio and Television. It includes BBC UK, NHK Japan, ABC USA, Fox USA, NBC USA, CBS USA, NDR Germany, Swedish Television, RAI Italy and NOB Netherlands. SSL employs over 160 people worldwide. Home to the most sophisticated and comprehensive audio demonstration facilities in the world, SSL's Oxford headquarters also house a purpose built training facility where future generations of operators are prepared to fully exploit the technological and creative advantages offered by SSL equipment. SSL is characterised both by its substantial Research and Development resource and a global commitment to customer support and service. Such assurance is extended via SSL's regional offices in Los Angeles, Milan, New York, Paris and Tokyo, with additional support provided by an international network of highly qualified distributors. The key to the company's success lies in its products; powerful and innovative proprietary technology is used to create dedicated solutions for the recording and manipulation of sound in highly demanding environments. In conditions where sonic purity cannot be compromised against the inevitable demands of high workloads, and where dauntingly inflexible deadlines are accepted as the norm, SSL equipment is synonymous with reliability and excellence.

Specifications

Type:

SuperAnalogue Console with DAW Control



Computer Connectivity:

Ethernet, USB



Faders:

17 x 100mm (Motorized)



Height:

8.97"



Width:

37.24"



Depth:

28.50"



Weight:

55.1 lbs.



Manufacturer Part Number:

729940X2
