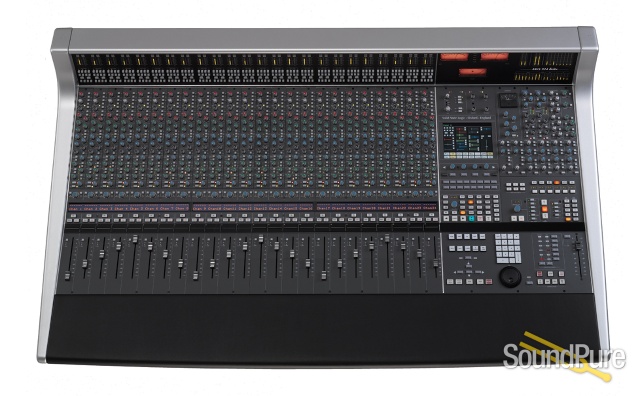

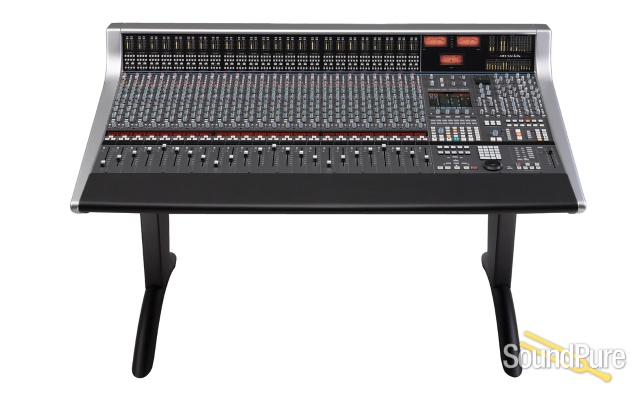

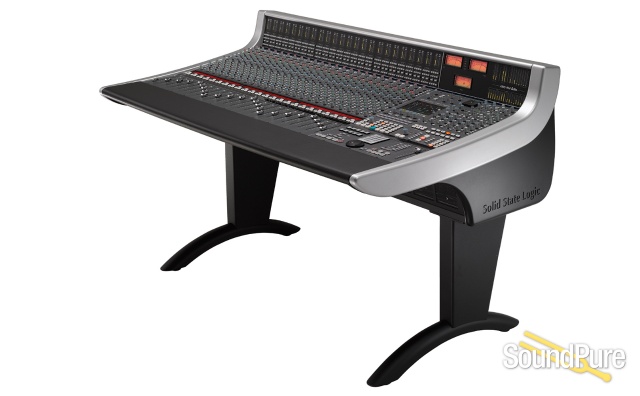

Solid State Logic AWS 924 Delta  From SSL

SuperAnalogue Console with 24 inputs, SSL Delta and DAW Control

Solid State Logic

$92,561.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $2105/mo.

Manufacturer's Description from SSL

Digital Control for Analogue Souls

The AWS (Analogue Workstation System) reinvented the professional production console by combining classic SSL SuperAnalogue™ console technology with comprehensive DAW control hardware in a single work surface. The AWS is now used by leading international recording artists, producers and engineers and has shaped expectations for session workflow within today's and indeed tomorrows' production environments.



Designed for mid-scale commercial recording and production facilities

AWS is available with 16 inputs (AWS 916), 24 inputs (AWS 924) or 48 inputs (AWS 948) within a compact 24 fader frame. The AWS 916 has 16 mic pre's, the AWS 924 and 948 have 24 mic pre's. The AWS 916 & 924 have mono channel strips and the 948 has stereo/dual mono channel strips that offer a second line level input per channel to provide 48 summing channels.

All models deliver pristine SuperAnalogue™ summing, 24 ultra-clean SSL SuperAnalogue mic pre's, classic SSL dual curve EQ on every channel, two assignable SSL Dynamics channels, legendary Stereo Bus Compressor, TotalRecall™ and full 5.1 monitoring. In addition to on board classic SSL Automation, all models feature the new d-Ctrl system.

The AWS also features Ethernet connectivity for streamlined hardware control over your entire Digital Audio Workstation environment. AWS delivers elegant, ergonomic physical control with dedicated heavy duty DAW transport, V-Pot multifunction encoders with position indicating LED's, Digital Scribble Strips, DAW fader mode, global and channel routing control and built-in TFT display for advanced plug-in editing. Project Session Management is kept simple through SSL's proprietary Logictivity interface.

The AWS is an SSL SuperAnalogue™ console. Exceptionally low THD, noise floor & crosstalk levels keep your audio absolutely pristine, while our legendary headroom carries every nuance of your audio and allows engineers to mix 'hotter' without distortion.



δelta-Control Plug-ins for AWS

The δelta-Control (δ-Ctrl) Single Fader Plug-in is a native AAX/AU/VST/VST3 plug-in that allows automation of AWS channel and mix bus volume as if it were a DAW plug-in. Inserting 24 instances into the DAW session will allow control of volumes and cuts for all 24 AWS channels. The automation system in the DAW is used to record and playback AWS volume control data entered either directly from the console faders or from the fader in the plug-in GUI..

The δelta-Control 24 Channel Plug-in brings compatibility to Logic users whilst also offering alternative workflow options to users of other DAWs. From one plug-in GUI, all AWS channel features can be automated including: Fader levels, Cuts and Insert Points for both channel and monitor paths (Absolute and Trim) In addition to this EQ, Cue, and FX switches for every channel can also be automated.



Industry Leading DAW control

While the AWS offers a powerful large format analogue console feature set within a compact console design, it also goes further than any other analogue console by integrating seamlessly into a DAW-based facility by incorporating hands-on control of important recording, routing, mixing, and editing functions in all major DAW applications including Pro Tools®, Logic Audio®, Nuendo®, Sonar® and many others.



Stereo Bus Compressor

The AWS master section stereo compressor is based on the legendary G Series bus comp and can be assigned to either the REC or MIX stereo busses. Activated, the AWS Stereo Bus Compressor instantly adds cohesion and strength to your mix without compromising clarity, bringing the classic SSL "audio glue" to your mix with spectacular SuperAnalogueTM audio performance. Combined with improved input and output circuitry, this improved unit provides superb audio performance, while retaining the dynamics characteristics that have provided numerous hit mixes for the world's best audio engineers.



Dynamics Processing

Two classic SSL Channel Dynamics processing strips with separate Compressor and Gate/Expander sections can be assigned to any channel. The assignable Channel Dynamics section features SSL's standard RMS compressor, switchable to Peak sensing, with hard knee characteristic via the "PK" button. There are separate controls for the Expander/Gate section encompassing range, threshold, release and hold. Expansion is selected via the "EXP" switch. Each processing strip includes dedicated metering, fast attack buttons & dedicated key input.



Communications

The AWS features comprehensive talkback routing with dedicated independent communication buttons for independent foldback sends. A full compliment of GPIO connection, SLATE, the famous LMC input, and RED light activation are all standard on the AWS.



Monitoring & Metering

The AWS offers a new level of sophistication when working with control room monitoring. The centre section affords total control over two independent 5.1 main loudspeaker outputs plus two stereo "mini" LS outputs, and a dedicated Headphone Out. Comprehensive Bass management is also included. A highly flexible external source selector section can sum, assign and route up to four 5.1 sources, and four stereo input sources to either the control room, studio loudspeaker and headphone foldback feeds. A six channel wide monitor insert point and a separate six channel external meter output allow full interfacing with additional third party monitoring systems and 5.1 surround encoder/decoder combos.

There is a dedicated Stereo VU meter for the MIX, REC, Monitor and Solo busses, a VU Phase meter, 5.1 monitor metering, 8 individual Track Bus meters and all Cue and FX send level indication. Each channel sports a dual 12-segment meter which allows DAW Stereo track monitoring. Other features in the AWS include AUTOCUE functionality, MONITOR VOLUME POT CALIBRATION, SOLO ISOLATE, the ability to control two DAW's simultaneously, and the addition of SOFT BOOT power cycling. Above all, latency free punch in record monitoring is standard, this is analogue!



TotalRecall

TotalRecallTM is SSL patented technology that aides the saving and recalling of analogue console control settings for a specific Project or Session. The system takes a snapshot of current console settings and saves it via the SSL Logictivity Browser. On the AWS a graphical representation of this information can then displayed on the Centre Section TFT display to enable the operator to manually reset the controls. The AWS includes the timesaving "TR Autoscan" feature which draws the operators attention to only those Channels that need adjustment.



Summing Bus Injects for the CUE and FX busses

To accommodate modern production methods the AWS consoles now feature an independent Summing Input which allows additional Tracks from the DAW access to the Cue and FX send busses, therefore allowing those DAW tracks access to hardware outboard units and the creation of dedicated Cue mixes form the DAW.



Solid State Logic

About Manufacturer

From groundbreaking audio consoles to innovative video production systems, Solid State Logic has evolved to become the world's leading manufacturer of analogue and digital audio consoles and provider of creative tools for film, audio, video and broadcast professionals. With more than 3000 SSL-equipped studios and facilities operational today, the excellence of SSL consoles is universally recognised for unrivalled sonic quality, superb ergonomics, outstanding automation and an international support infrastructure second to none. Founded in 1969, SSL has since expanded to its present 15 acre science park in Oxfordshire, England. SSL's unrivalled resources, including R&D, manufacturing, training, service and product support, operate in a unique high technology, customer oriented environment. The company invents, designs and manufactures technology for the creative manipulation of sound. Users and industry experts from all over the world visit SSL's Oxford HQ to consult with SSL audio experts and evaluate SSL equipment. There are more than 3000 SSL systems in service around the world. Internationally famous classical musicians and popular artists such as Bryan Adams, Peter Gabriel, Whitney Houston, Blur and Sting, choose SSL equipment to extend their creativity and ensure the highest possible quality of their finished product. No wonder that SSL recording consoles are the first choice of leading producers, and are found in the most prestigious recording studios around the world. Independent post production companies working for multinational advertising agencies use SSL equipment to produce global advertising campaigns for the world's leading commercial brands. Long-form video and major TV productions benefit from the unique qualities of SSL products the world over. Leading national and international broadcasters have similarly embraced the company's innovative technology to streamline operations and ensure high quality output. The client list reads like a who's who in Radio and Television. It includes BBC UK, NHK Japan, ABC USA, Fox USA, NBC USA, CBS USA, NDR Germany, Swedish Television, RAI Italy and NOB Netherlands. SSL employs over 160 people worldwide. Home to the most sophisticated and comprehensive audio demonstration facilities in the world, SSL's Oxford headquarters also house a purpose built training facility where future generations of operators are prepared to fully exploit the technological and creative advantages offered by SSL equipment. SSL is characterised both by its substantial Research and Development resource and a global commitment to customer support and service. Such assurance is extended via SSL's regional offices in Los Angeles, Milan, New York, Paris and Tokyo, with additional support provided by an international network of highly qualified distributors. The key to the company's success lies in its products; powerful and innovative proprietary technology is used to create dedicated solutions for the recording and manipulation of sound in highly demanding environments. In conditions where sonic purity cannot be compromised against the inevitable demands of high workloads, and where dauntingly inflexible deadlines are accepted as the norm, SSL equipment is synonymous with reliability and excellence.

Specifications

Type:

SuperAnalogue Console with DAW Control



Computer Connectivity:

Ethernet, USB



Faders:

17 x 100mm (Motorized)



Height:

8.97"



Width:

37.24"



Depth:

28.50"



Weight:

55.1 lbs.



Manufacturer Part Number:

729940X2
