Sound Pure's Take
The Shure SM81-LC is a classic, no-nonsense small-diaphragm condenser microphone that belongs in every studio locker. If you need a transparent, ruler-flat microphone that captures acoustic guitars, drum cymbals, and pianos with total fidelity and zero artificial hype, the SM81 is a time-tested reference standard.
From Shure
The Shure SM81-LC is a industry-standard, small-diaphragm electret condenser microphone engineered specifically for critical studio recording, broadcast, and high-end live sound reinforcement. Renowned for its exceptionally flat, extended frequency response and precise polar consistency, the SM81 is a reference choice for acoustic instruments—including acoustic guitar, piano, brass, woodwinds, and drum overheads or cymbals—where uncolored, natural sound reproduction is paramount.
Built with a high-grade transducer and advanced transformerless output stage, the SM81 delivers precise transient response, low distortion, and exceptional RF immunity. It features a 3-position low-frequency response switch (flat,$6\text{ dB/octave}$ roll-off, or $18\text{ dB/octave}$ cut) to mitigate proximity effect and low-frequency rumble, alongside a lockable $10\text{ dB}$ attenuation pad for handling high sound pressure levels. Housed in a heavy-duty steel structure, the SM81 operates reliably over a wide range of temperature and humidity conditions.
Key Features
-
Exceptionally Flat Frequency Response: Delivers precise, uncolored reproduction of acoustic instruments, percussion, and classical ensembles across a broad $20\text{ Hz to } 20,000\text{ Hz}$ range.
-
Precise Cardioid Polar Pattern: Uniform directional pickup maximizes gain before feedback while providing excellent off-axis rejection of ambient room noise.
-

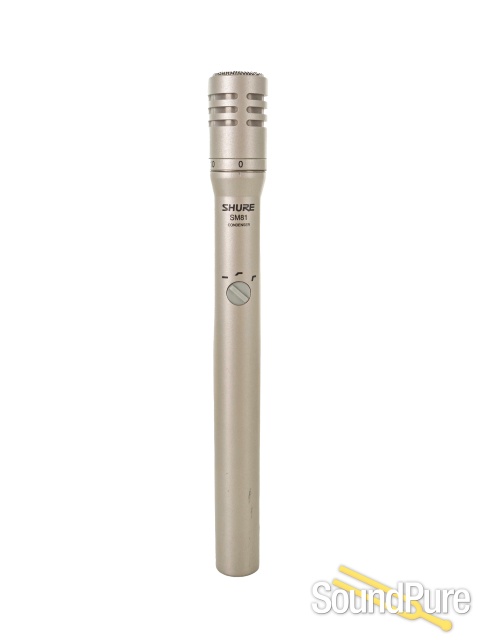

3-Position Low-Frequency Response Switch: Selectable low-end control (flat,$6\text{ dB/octave}$ slope, or $18\text{ dB/octave}$ cut) eliminates mechanical rumble, wind noise, and excessive proximity effect.
-
Lockable 10 dB Attenuation Pad: Built-in attenuator switch increases maximum SPL handling capability to $146\text{ dB SPL}$ for high-volume sources like drum overheads and brass.
-
Rugged Steel Construction: Vinyl-coated steel casing and robust internal shock isolation ensure reliable performance across demanding touring and studio environments.
-
Phantom Powered Flexibility: Operates on standard $11\text{V to } 52\text{V DC}$ phantom power (DIN 45596) with low internal noise floor ($16\text{ dB-A}$).
- Element Type
- Electret Condenser
- Polar Pattern
- Cardioid
- Frequency Response
- $20\text{ Hz to } 20,000\text{ Hz}$
- Output Impedance
- $150\ \Omega$ rated ($85\ \Omega$ actual)
- Sensitivity
- $-45.0\text{ dBV/Pa}$ ($5.6\text{ mV}$) at $1\text{ kHz}$ ($1\text{ Pa} = 94\text{ dB SPL}$)
- Maximum SPL
- $136\text{ dB SPL}$ ($146\text{ dB SPL}$ with pad engaged) at $1\text{ kHz}, 800\ \Omega$ load
- Signal-to-Noise Ratio
- $78\text{ dB}$ ($S/N = 94\text{ dB SPL} - \text{noise}$)
- Equivalent Output Noise
- $16\text{ dB-A}$ (typical, A-weighted)
- Dynamic Range
- $120\text{ dB}$
- Clipping Level
- $-4\text{ dBV}$ ($0.63\text{ V}$) at $1\text{ kHz}, 800\ \Omega$ load
- Power Requirements
- $11\text{V to } 52\text{V DC}$ Phantom Power ($1.2\text{ mA}$ current drain)
- Connector
- 3-pin XLR male
- Dimensions
- $212\text{ mm}$ length $\times 23.5\text{ mm}$ diameter ($8.35" \times 0.93"$)
- Weight
- $230\text{ g}$ ($0.5\text{ lbs}$)
