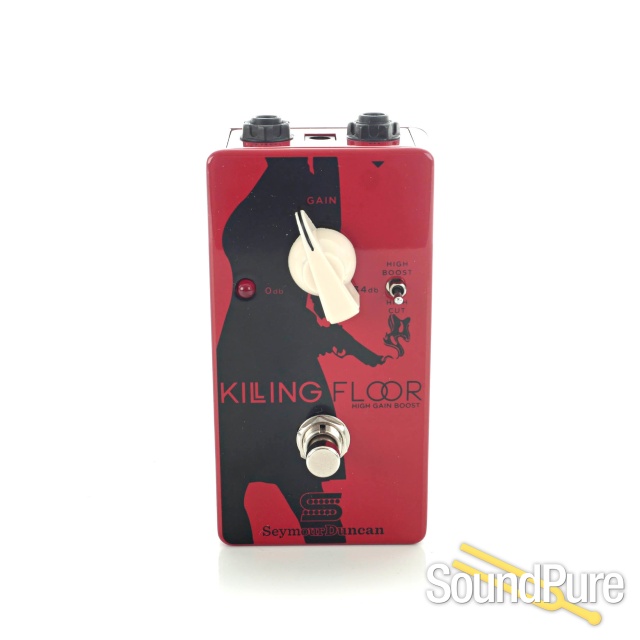

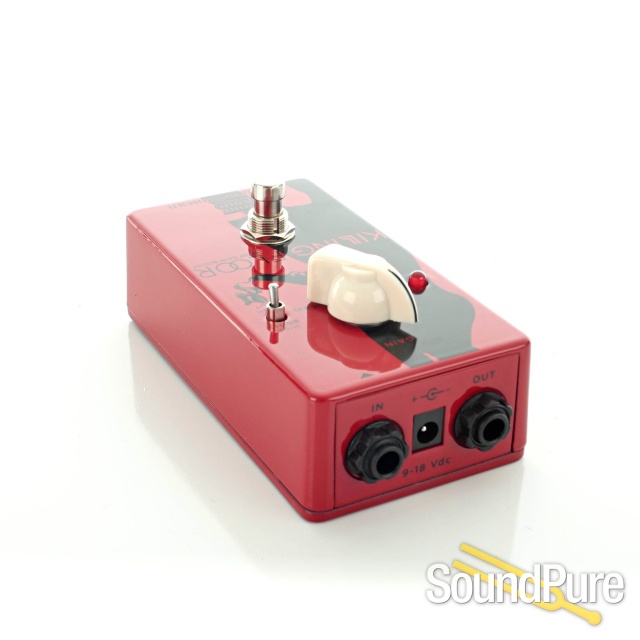

The Killing Floor is both a volume boost and a musical, amp-like overdrive all in one. You can use it to increase your overall output for solos, to push a tube amp further into overdrive, or you can kick it in for a beefy and expressive solo voice. It offers up to 34dB of gain, while the 3-way Voicing toggle switch lets you select between a 10k boost (for adding more highs to dark pickups or even more edge to already-bright ones), a 4.8k cut for smoother, sweeter or fatter tones, and a flat setting.
- Type of circuitry
- The Killing Floor uses a hybrid J-FET/Op-Amp, optimized for low order harmonics
- Bypass
- True hard-wire bypass
- Control Functionality
- Gain Control Range – 0dB to 34dB
- Voicing Switch
- Up – High Boost, 7 dB @ 10 kHz
Middle – Flat Response
Down – High Cut, 1st order, -3dB @4.8 kHz
Bypass (Footswitch) – Engages the boost effect
- Input Impedance
- 1M Ohm
- Output Impedance
- 1K Ohms
- THD @ 1 Vo
- 1.2% - all 2nd harmonic
- Noise referred to input
- 120dBV (with Gain set for 34dB)
- Power
- 9V battery or external 9V to 18V Regulated DC Adapter (center negative)
- Current Consumption
- 3.7mA in active mode, 2.2mA in bypass mode
- Dimensions
- 2.61” X 4.90” X 1.40”
- Weight
- 0.8lb. without battery, 0.9lb. with battery
