Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
$1,499.00
Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!
♦ Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
♦ Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
♦ Half-rack stereo transmitter in a full-metal housing with OLED display for full control
♦ Easy and flexible wireless synchronization between transmitter and receiver via infrared
♦ Compatible with Sennheiser WSM control software for flexible frequency allocation
♦ Up to 16 compatible channels
♦ Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
♦ Transmission Range: up to 100 meters / 300 feet
♦ High RF output power (up to 50 mW) depending on country regulations

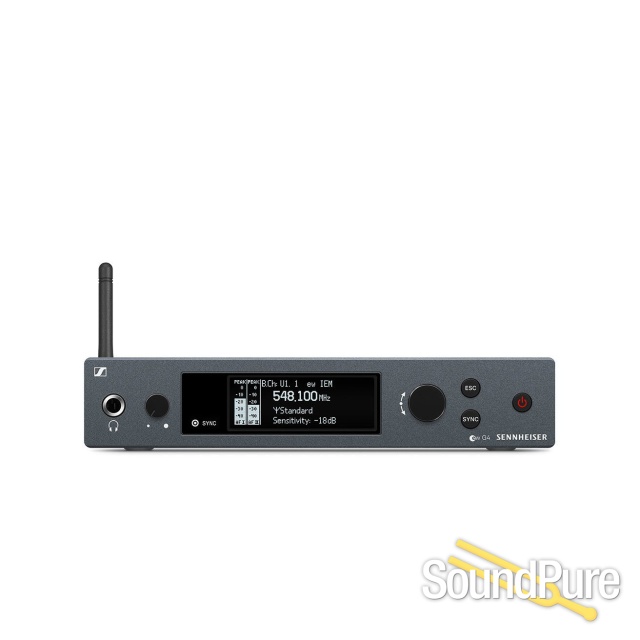

• SR IEM G4 stereo transmitter
• 2 EK IEM G4 stereo receiver

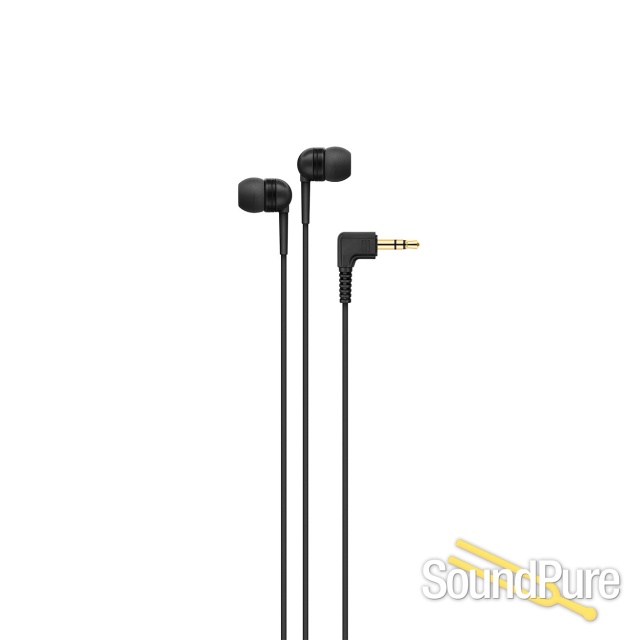

• 2 IE 4 earphones
• 4 AA batteries
• rod antenna
• GA 3 rackmount set
• quick guide
• safety guide
• manufacturer declaration sheet
• power supply
Innovation and know-how those are the hallmarks of one of the world's leading companies in the area of electro-acoustics. From individual audio products to complete system solutions Sennheiser electronic has the knowledge and the experience to lead the way in the constantly developing audio market. The key factors in its extraordinary success are its customer orientation, the performance of its employees, and its worldwide market presence. Sennheiser responds to the enormous significance of the foreign markets by maintaining intimate contact with its customers through an international network of sales subsidiaries and independent sales partners, most of which have been collaborating with Sennheiser for many years. This consistent customer orientation is also reflected in the seven major business areas of the company. In 2001, Sennheiser's consolidated turnover amounted to 227,4 million EURO. As a family business with about 1.500 employees, Sennheiser is completely self-financed. The independence of external financiers is the basis for innovation and implementation of a high quality standard for products. The focus is not on short-term return on capital but on the healthy long-term development of the company. Music Industry Toploader, Manowar, Sting, Dido or Sasha stars and sound engineers rely on Sennheiser quality. The product range offers everything from rugged, roadworthy stage microphones to studio condenser microphones for audiophile recordings. The portfolio also includes in-ear monitoring systems for the artists and monitoring headphones for the sound engineer ... Consumer Electronics In-ear headphones and other "lightweights" for music on the move, classical open or closed cabled headphones, RF wireless headphones for greater freedom of movement, PC headsets, and TV headphones, also with infrared or radio-frequency transmission. Sennheiser's competency in headphones is matched by its experience with microphones: whether for hi-fi systems, natural life recordings, or for PCs, at Sennheiser, consumers find the right microphone for every purpose ... Professional Systems Theater, musical productions, special events, movies, radio, and television ? wherever professional sound transmission solutions are called for, on stage or backstage, Sennheiser brings its comprehensive system know-how to bear. With its RF wireless microphones of the top-of-the-line 3000 and 5000 Series, the company leads the field ... Aviation With pilot headsets for airline and private pilots as well as headphones for in-flight entertainment, Sennheiser covers the complete range of audio transmission on board. The special NoiseGard system efficiently reduces wind and aircraft noise and thus provides for clear communication and safety in radio traffic and gives passenger headphones disturbance-free sound that is worth listening to ... Installed Sound At conferences, museums, and exhibitions, Sennheiser's conference and tour-guide systems provide for comfort and communication across the boundaries of countries and languages. Infrared systems in theaters and event venues provide crystal-clear sound directly to the ears of the hearing impaired. Wherever communication takes place, an innovative Sennheiser solution is not far away ... Audiology The Sennheiser range for better hearing! RF or infrared headphones make watching television a pleasure once again for everyone concerned, because these lightweights let you hear without disturbing others. Personal sound amplifiers that can be used as needed make speech clear and understandable. Sennheiser also offers television systems and personal FM systems to hearing-aid users ... Telecommunications With PC headphones, microphones, and headsets from Sennheiser, you can discover the fascinating world of multimedia, work more reliably with voice recognition systems, set up your Internet telephony system more professionally, and much, much more ...
Frequency range
A: 516-558 MHz
Dimensions
Approx. 202 x 212 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<0.9 %
Weight
Approx. 980 g
Audio input
2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output
¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio
>90 dB
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Modulation
Wideband FM stereo (MPX pilot tone)
Power supply
12 V DC
Current consumption
max. 350 mA
Max. Input voltage
+22 dBu
Transmission frequency
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
AF frequency response
25 Hz to 15 kHz
Temperature Range
-10 °C to +55 °C
Frequency stability
±10 ppm
Antenna Output
BNC socket, 50 Ω
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 125 g
Signal-to-noise ratio
approx. 90 dBA
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
approx. 4 to 6 hours (depending on volume level)
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA
Adjacent channel rejection
Typically ≥ 65 dB
Audio-Output-Power
2 x 100 mW at 32 Ω
Intermodulation attenuation
Typically ≥ 70 dB
Limiter
–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Powering
3 V battery / 2.4 V rechargeable battery
Receiving frequency
Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
RF sensitivity
< 4 μV, typ. 1.6 μV for 52 dBA rms S/N
Squelch
5 to 25 dBµV, adjustable in steps of 2 dB
Bass Boost
+8 dB at 80 kHz
Temperature Range
-10 °C to +55 °C
Receiver Principle
Adaptive diversity
Blocking
≥ 80 dB
