From Sennheiser
The best that the G3 300 series has to offer for the voice: top-notch condenser technology coupled with a true diversity receiver. This system captures every last nuance and detail of the vocalist. A programmable mute button on the microphone lets the user decide when it is time to go “on-air.”
Features
•Sturdy metal housing (transmitter and receiver)
•42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
•Enhanced frequency bank system with up to 24 compatible frequencies
•Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
•High-quality true diversity reception
•Pilot tone squelch for eliminating RF interference when transmitter is turned off
•Automatic frequency scan feature searches for available frequencies
•Enhanced AF frequency range
•Increased range for audio sensitivity
•Wireless synchronization of transmitter parameter from receiver
•User-friendly menu operation with more control options
•Illuminated graphic display, receiver also shows transmitter settings
•Auto-Lock function avoids accidental changing of settings
•HDX compander for crystal-clear sound
•Transmitter feature battery indicatation in 4 steps, also shown on receiver display
•Programmable Mute button on transmitter body
•Easy-exchangeable microphone modules from evolution series
•Integrated Equalizer and Soundcheck mode
•Contacts for recharging BA 2015 accupack directly in the transmitter
•Wide range of accessories adapts the system to any requirement

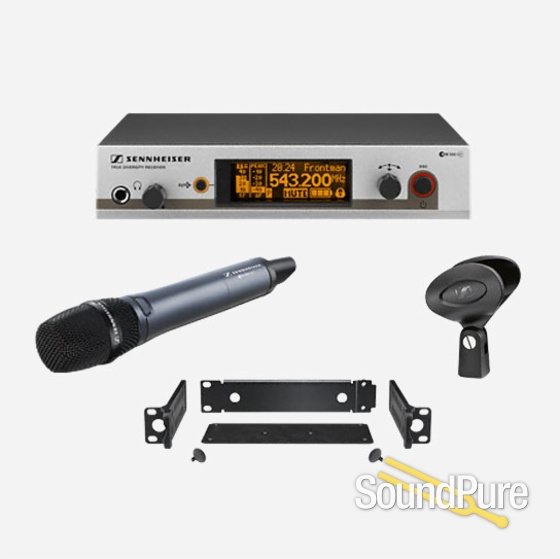

Delivery Includes
•EM 300 G3 rack-mount receiver
•SKM 300-865 G3 handheld transmitter (super-cardioid, condenser)
•MZQ 1 microphone clip
•GA 3 rack mount
•NT 2 power supply unit
•2 antennas
•2 AA size batteries
•Operating instructions
Technical Data
| RF frequency range | 516 - 865 MHz |
|---|---|
| Transmission/receiving frequencies | 1680 |
| Presets | 24 |
| Switching bandwidth | 42 MHz |
| Peak deviation | ±48 kHz |
| Compander | HDX |
| Frequency response (microphone) | 80 - 18,000 Hz |
| Signal-to-noise-ratio | > 115 dB(A) |
| Total harmonic distortion (THD) | <0.9% |
| In compliance with | ETS 300422 , ETS 300445 , CE , FCC |
| Antenna connector | 2 BNC, 50Ω |
| XLR connector | 6.3 mm |
| Audio output level (balanced) | XLR: +18 dBu max |
| Audio output level (unbalanced) | Jack: +10 dBu max |
| Dimensions (receiver) | 8.3 x 8 x 1.7 in (212 x 202 x 43 mm) |
| Weight (receiver) | 2.2 lb (980 g) |
| RF output power | 10/30 mW |
| Operating time (transmitter) | > 8 h |
| Dimensions (transmitter) | d=2 in (50 mm), l=10.4 in (265 mm) |
| Weight (transmitter) | 15.9 oz (450 g) |
| Transducer / microphone type | electret-condenser |
| AF sensitivity | 1.6 mV/Pa |
| Sound pressure level (SPL) | 152 dB(SPL) max. |
| Pick-up pattern | super-cardioid |
