The 5051 combines a classic three band EQ based on Rupert’s vintage designs with the power and flexibility of the Portico II compressor. Utilizing a fully-discrete, class-A signal path and high performance input and output transformers, the 5051 delivers the performance and musicality expected from a Rupert Neve Design.



The EQ design on the 5051 evokes sonic similarities with some of Rupert’s classic EQs. The 5051 uses a custom tapped inductor with selected capacitors to form the mid range equalizer band, and the shelf curves are based on Rupert’s vintage modules, including very similar frequency choices. Each EQ section also uses low feedback class-A discrete electronics to prevent low level artifacts and harshness from detracting from the tonal shaping. The EQ, however, is a modern design with advantages offered by techniques that were not possible 35 years ago along with improvements in electronic components currently available, and should not be considered a clone. Let’s just say it has heritage.



Both the High and Low Band can be switched from Shelf to Peak curves and offer 15 dB of boost or cut. The High can be switched from 8 kHz to 16 kHz and the Low Band selected at 35 Hz, 60 Hz, 100 Hz or 220 Hz. The inductor based Mid Band offers 6 center frequencies; 200 Hz, 350 Hz, 700 Hz, 1.5 kHz, 3 kHz and 6 kHz. The Mid Band also has a High Peak switch to narrow the bandwidth or increase the Q of the filter. The 5051 includes an 18 dB/octave High Pass Filter with two corner frequencies on a lit button that toggles through “OFF, 60 Hz then 120 Hz indicated by a blue or red LED respectively.



Additionally, the EQ can be switched Pre or Post the compressor. Normally the EQ precedes the compressor but the order can be selected so that the EQ follows after the Compressor. The 5051 also has two XLR balanced inputs that can be switched from the front panel. This allows the user, for example, to have a mic preamplifier and line input from a DAW to be pre-patched and easily selectable.



The 5051 Compressor also features a discrete class A signal path proven used in the Portico Series, withindividually controllable threshold, attack, release, makeup gain, ratio, side chain HPF, Feed-Forward / Feed-back selection and Peak/RMS detection modes. With the compressor inactive, the 5051 may be used as a transformer-coupled, high-performance line amplifier, and two 5051′s may be linked for stereo operation as well.



In order to control gain, a V.C.A. or Voltage Controlled Amplifier (or Attenuator) is used. There are many types of V.C. including the use of tubes, discrete and integrated solid state circuits and naturally non-linear devices, each one having its characteristic behavior that reflects sonically on the final performance, and gives it a character or signature that can be musically attractive or not! The Portico 5051 compressor makes use of a very accurate, low noise, low distortion V.C.A. having, essentially, no signature of its own.



A part of the audio signal is rectified and smoothed to produce a suitable control voltage for the V.C.A. which has to respond very quickly and have low distortion. If the response is too fast, low frequency signals will themselves, be gain controlled! If the response is too slow, the signal will overshoot and the first few cycles will not get compressed. The speed and accuracy of the response, known as the “attack”, and the time frame that gain remains under the initial control, known as “release” or “recovery” and plays a large part in the way a compressor sounds.



The 5051 also has the ability to switch between feed-forward and feed-back modes. If the V.C.A. Control voltage is taken from the 5051 output, (i.e. after the V.C.A.) it cannot act immediately on the V.C.A. because it has already been modified by settings of the V.C.A. and circuits through which it has passed. This is known as a “Feed-Back” compressor. The two compression characteristics are quite different; there is more “Overshoot” and both the attack and recovery ramps are changed, providing the user with powerful choices. In most of Mr. Rupert Neve earliest designs, feed-back detection controlling the VCA with a rectified voltage from the unit output was intrinsic to the musical dynamic response. However, the very nature of a feedback compressor limits the attack time of the compression circuit. To offer faster, more technically accurate response times, feed-forward detection was implemented on Mr. Rupert Neve’s more modern designs. With the FF / FB switch, both classic and modern VCA responses are available.



Above a given “THRESHOLD” signals are reduced by an adjustable amount ranging from 1:1, (which is linear, or no reduction at all), to more than 40:1 which is a very high ratio, equivalent to that of a Limiter. RATIO is sometimes referred to as “Slope” because when depicted on a graph, the slope of the graph representing Output versus Input, is what changes.



Ratio and Threshold are closely inter-dependent. If a RATIO as high as 40:1 has been set, then if the THRESHOLD is set at 0 dBu, even when a massive signal of +40 dBu (unlikely!) is presented to the input, the output signal will only be +1 dBu. RATIOS as high as this would normally be set somewhere above 0 dBu – say at +14 dBu, in order to prevent the output signal level exceeding just over +14 dBu to protect, for example, a digital recorder. Similarly, if a RATIO of 5:1 has been set, an input signal which is 10dB above THRESHOLD will only rise by 2dB above that THRESHOLD at the output.



THRESHOLD control covers the Range from below -30dB to +22dBu. When THRESHOLD set at a low level, with a fairly high RATIO the amount of gain reduction will be considerable and it may be necessary to use some GAIN after the compressor to restore the apparent signal level.



The ATTACK time is the time taken for the compression circuits to start compressing. A long ATTACK time allows short duration peaks to “escape” and go through uncompressed. This may cause overload on subsequent digital circuits. A very short attack time sounds un-natural and robs the signal of “life” by removing transients. Some transients are extremely fast and have little effect on the sound quality. Setting a long attack time often means that almost no gain reduction occurs because the transient is history (!) before compression has had time to operate. However, even the fastest circuits take time to operate which means that there is always some “Overshoot”. Small amounts of “Overshoot” are musically desirable – there are exceptions, of course.



Setting the right values of RELEASE and ATTACK is what compression is all about! Once the principles are understood a Compressor-Limiter such as the 5051 provides a powerful tool that actually appears to enhance the dynamic range of a recording and so provide greater musical enjoyment.



The notes above explain how the 5051 handles signals of constant amplitude such as pure tones. Real program signals, however, are continually changing in level. The way in which a compressor deals with actual program material depends upon the magnitude and duration of peaks in the program level.



If the RELEASE TIME is set to be very short, a short duration signal will be compressed but the gain will return to normal very quickly, giving a fluctuating and un-natural sound known as “Pumping” when the background, or other signals, are forced up and down. The gain will also tend to follow the wave form of low frequency signals. RELEASE TIME should be set long enough for the gain to remain reasonably constant between each bass note or between speech syllables.



The 5051 is intended for 5088 consoles or 5285 vertical frames. There are two +/- 24V power supply options; The 5-way supply is designed to sit in the bottom of a rack, and the 25-way supply is a 2U enclosure. The external +/- 24V supply provides exceptionally clean power, and reduces heat build-up within modules associated with DC-DC up-conversion.





The first inductor based EQ designed by Rupert Neve since the mid 70's, the 5051 EQ is very reminiscent of Mr. Neve's classic EQ, while providing a thoroughly modern performance.

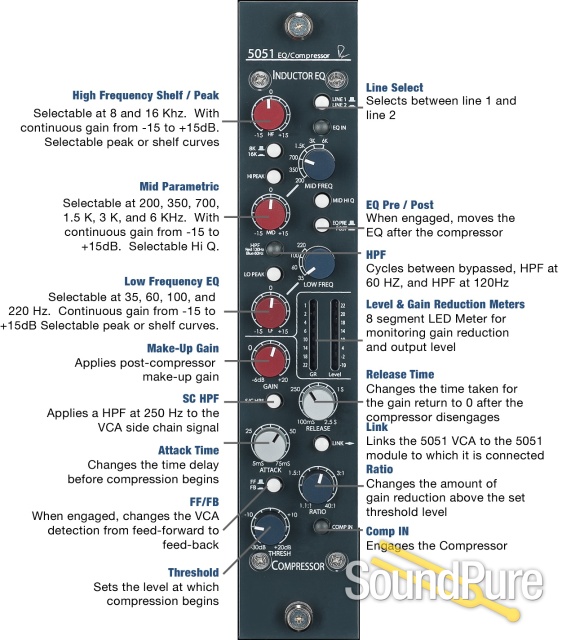

18 dB/octave Hiwith two corner frequencies on a lit button that toggles through "OFF, 60 Hz then 120 Hz (indicated by a blue or red LED respectively).



+/- 15dB Shelf or peak, selectable at 35 Hz, 60 Hz, 100 Hz or 220 Hz.



+/- 15dB with 6 center frequencies; 200 Hz, 350 Hz, 700 Hz, 1.5 kHz, 3 kHz and 6 kHz, with High Peak switch to narrow the bandwidth or increase the Q of the filter.



+/- 15dB Shelf or peak selectable at 8 kHz to 16 kHz.



For signals below the "threshold" level that has been set, a compressor provides a linear path allowing signals to be amplified without the gain being adjusted in any way. When signals exceed the "threshold" level, the gain is reduced in a controlled manner that depends on the Ratio that has been set.



GAIN range provided is from -6dB to +20 dB. As already noted, when compression has taken place, it may be necessary to increase the overall gain to restore the apparent program level



Introduces a HPF at 250Hz to the VCA side chain signal. This allows the compressor to disregard sustained low frequency content.



Range from 1:1 to LIMIT (i.e. 40:1)



Range from -30dBu to +20dBU



Range from 20 mS to 75 mS.



Range of RELEASE time is 100 mS to 2.5 Seconds.



When the LINK switch is engaged on two 5051 modules and settings are approximately the same values, GAIN reduction on both channels will be the same to preserve stereo balance and position.



When the LINK switch is engaged on two connected 5051 modules, the signal passing through the first module may be used to control the amplitude of a second module. For example, the level of music through channel A can be controlled by speech on channel B, i.e. reducing the music level to make a "speech-over" announcement.



Two Peak LED METERS are provided that show OUTPUT LEVEL and GAIN REDUCTION.



Output level meter covers the range from -10 to +22 dBu and above which is regarded as overload.



REDUCTION is calibrated in dB covering the range +1 to 22 dBu, reading from right to left,
