From RME

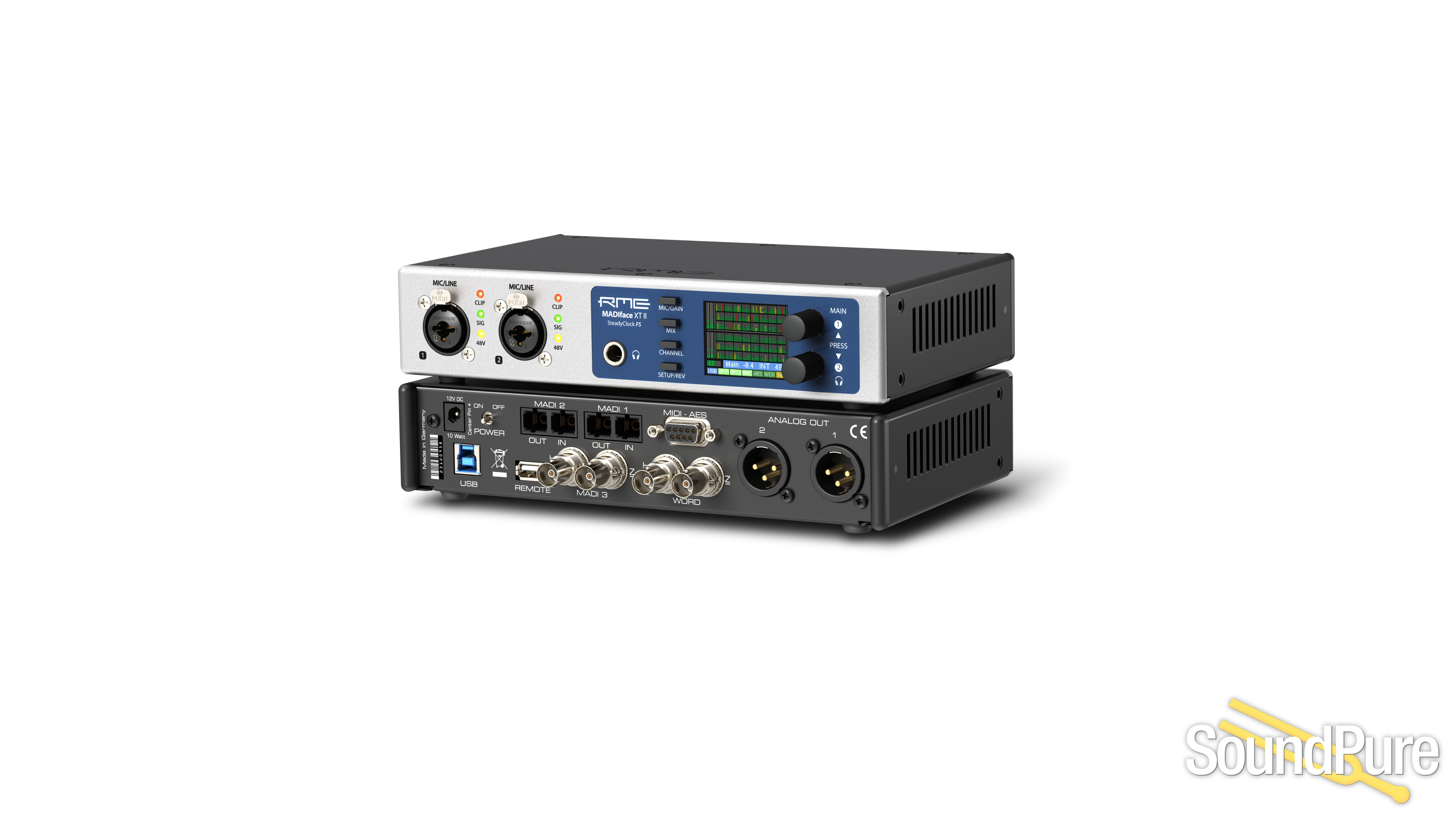

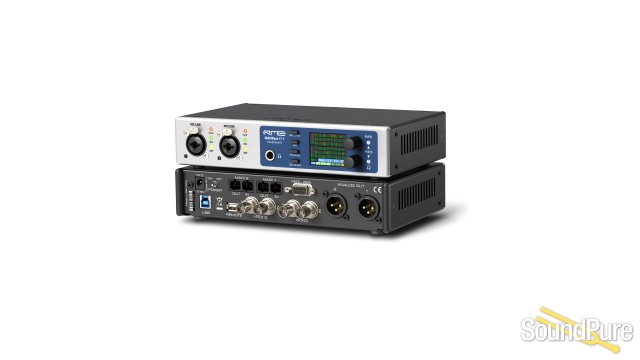

MADI to DAW
Furthermore, the maximum balanced line output level of the XLR line outputs has been increased from +15 dBu to +24 dBu. The stereo headphone output of the MADIface XT II also delivers a significantly higher output level of +19 dBu and, with an output impedance of 1 Ohm, significantly more power than its predecessor. All outputs also have several switchable level options.
New Digital Circuit Board
Femtoseconds for Clocking
USB 3 Class Compliant Audio
The MADIface XT II operates in two different modes: driver-based USB 3 and Class Compliant. The Class Compliant mode is a standard that is natively supported by operating systems like Windows, Mac OSX and Linux distributions. No proprietary drivers are required, the device will be directly recognized when the CC firmware is loaded.The new MADIface XT II focuses on USB 3.0, as PCIExpress can no longer be used externally. The new device's Class Compliant mode has been significantly upgraded, as all 394 channels can now be transmitted simultaneously without a driver. In addition, there are various formats and settings for the channel sequence in order to make optimum use of Class Compliant.
ARC USB Remote Control - Plug’n Play Plus
The optional available ARC USB connects to your computer via USB, and talks to TotalMix FX directly. It has 15 freely assignable and illuminated buttons, one encoder wheel, and a TS jack to connect a foot switch.The ARC USB is a USB 1.1 MIDI remote control for the MADIface XT II. Thanks to operating as a UAC 1 class device, it is natively compatible to Windows and Mac OS X. As soon as it is present in the operating system, TotaIMix FX will automatically detect the ARC USB, and communicate with it via simple MIDI remote commands to control the XT II.The MADIface XT II operates in two different modes: driver-based USB 3 and Class Compliant. The Class Compliant mode is a standard that is natively supported by operating systems like Windows, Mac OSX and Linux distributions. No proprietary drivers are required, the device will be directly recognized when the CC firmware is loaded.
The new MADIface XT II focuses on USB 3.0, as PCIExpress can no longer be used externally. The new device's Class Compliant mode has been significantly upgraded, as all 394 channels can now be transmitted simultaneously without a driver. In addition, there are various formats and settings for the channel sequence in order to make optimum use of Class Compliant.

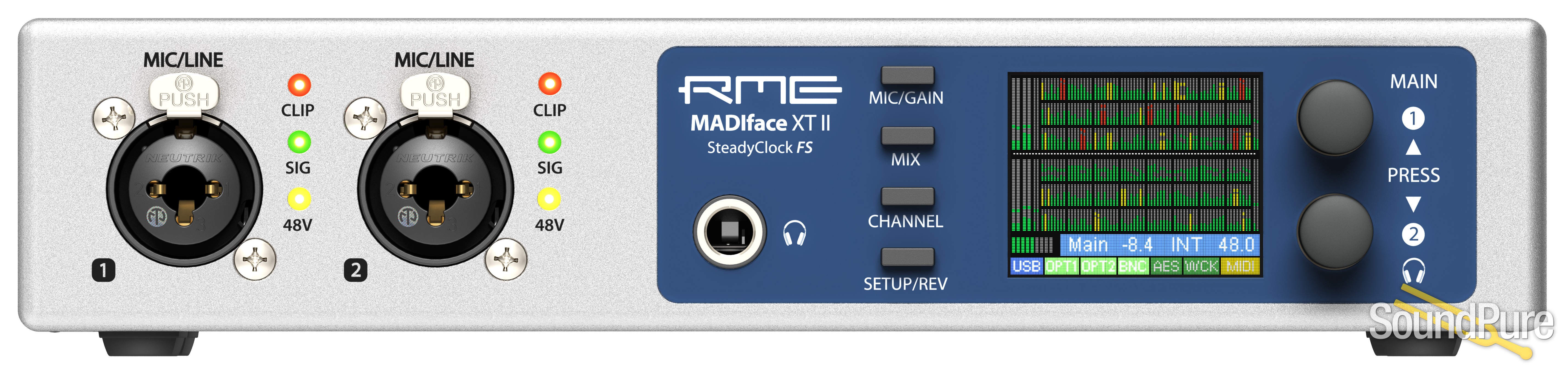

AD, Microphone/Line 1-2
- Input
- XLR, electronically balanced
- Input impedance @ 1 kHz
- 3.3 kOhm
- Signal to Noise ratio (SNR)
- 116 dB (AES17), 118.5 dBA
- Frequency response @ 44.1 kHz, -0.1 dB
- 5 Hz – 20.8 kHz
- Frequency response @ 96 kHz, -0.5 dB
- 3 Hz – 45.2 kHz
- Frequency response @ 192 kHz, -1 dB
- 2 Hz - 89 kHz
- Filter
- Short Delay Sharp, 5 / 5 / 6 samples delay
- THD
- < -110 dB, < 0.00032 %
- THD+N
- < -104 dB, < 0.00063 %
- Channel separation
- > 110 dB
- Gain range
- 75 dB
- Maximum input level, Gain 0 dB
- +18 dBu
- Maximum input level, Gain 75 dB
- -57 dBu
- CLIP LED
- 0 dBFS
- SIG LED
- -60 dBFS
AD, TRS
As Microphone/Line 1-2, but
- Input
- 6.3 mm TRS jack, balanced
- Input impedance
- 6.6 kOhm balanced, 3.3 kOhm unbalanced
- Maximum input level TRS, Gain 0 dB
- +24 dBu
- Maximum input level TRS, Gain 60 dB
- -51 dBu
DA, Line Out 1-2
- Dynamic range (DR)
- 113.5 dB (AES17), 116 dBA
- Frequency response @ 44.1 kHz, -0.1 dB
- 0 Hz – 20.2 kHz
- Frequency response @ 96 kHz, -0.5 dB
- 0 Hz – 44.7 kHz
- Frequency response @ 192 kHz, -1 dB
- 0 Hz – 78 kHz kHz
- Filter
- Short Delay Sharp, 6 samples delay
- THD+N @ -1 dBFS
- -105 dB, 0.0005 %
- Channel separation
- > 110 dB
- Output
- XLR balanced
Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu
- Output impedance
- 150 Ohm
DA, Phones 3/4
As DA Line Out, but
- Output
- 6.3 mm TRS jack, unbalanced
- Output impedance
- 1 Ohm
- Output level at 0 dBFS
- +7 dBu
Digital Inputs
MADI
Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Optical via FDDI duplex SC connector
62.5/125 and 50/125 compatible
Accepts 56 channel and 64 channel mode, plus 96k Frame
- Standard
- up to 64 channels 24 bit 48 kHz
- S/MUX
- up to 32 channels 24 bit 96 kHz
- S/MUX4
- up to 16 channels 24 bit 192 kHz
- Lock range
- 25 kHz – 54 kHz
- Jitter suppression
- > 50 dB (> 315 Hz)
AES/EBU
1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
High-sensitivity input stage (< 0.35 Vpp)
SPDIF compatible (IEC 60958)
Accepts Consumer and Professional format
- Lock range
- 27 kHz – 200 kHz
- Jitter suppression
- > 50 dB (> 315 Hz)
Word Clock
BNC, not terminated (4 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed
SteadyClock guarantees super low jitter synchronization even in varispeed operation
Not effected by DC-offsets within the network
- Signal Adaptation Circuit
- signal refresh through auto-center and hysteresis
Overvoltage protection
- Level range
- 1.2 Vss – 5.6 Vpp
- Lock range
- 28 kHz – 200 kHz
- Jitter suppression
- > 50 dB (> 315 Hz)

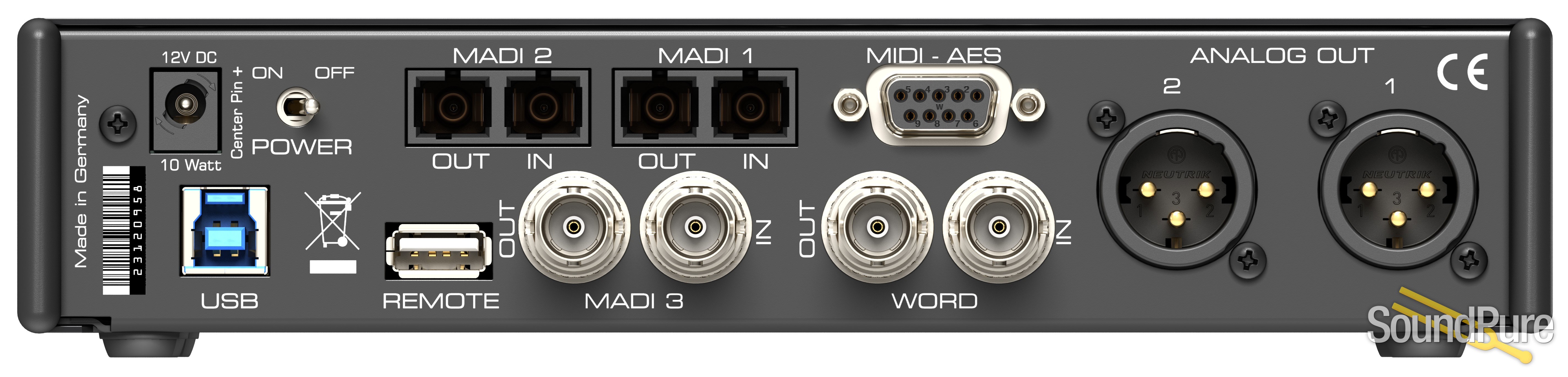

Digital Outputs
MADI
Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 450 mVpp
- Cable length
- up to 100 m
Optical via FDDI duplex SC connector
62.5/125 and 50/125 compatible
- Cable length
- up to 2000 m
Generates 56 channel and 64 channel mode, plus 96k Frame
- Standard
- up to 64 channels 24 bit 48 kHz
- S/MUX / 96k Frame
- up to 32 channels 24 bit 96 kHz
- S/MUX4
- up to 16 channels 24 bit 192 kHz
AES/EBU
XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Output level Professional 4.0 Vpp
Format Professional according to AES3-1992 Amendment 4
Output level Consumer 2.0 Vpp
Format Consumer (SPDIF) according to IEC 60958
Single Wire mode, sample rate 28 kHz up to 200 kHz
Word Clock
BNC
- Max. output voltage
- 5 Vpp
- Output voltage @ 75 Ohm termination
- 4.0 Vpp
- Output impedance
- 22 Ohm
- Frequency range
- 28 kHz – 200 kHz
Digital
- Clocks
- Internal, MADI In, Word Clock In, AES In
- Jitter suppression of external clocks
- > 50 dB (> 315 Hz)
- Effective clock jitter influence on AD and DA conversion
- near zero
Input PLL ensures zero dropout, even at more than 100 ns jitter
- Supported sample rates
- 28 kHz up to 200 kHz
MIDI
1 x MIDI I/O via breakout cable
3 x MIDI I/O via MADI
Separate 128 byte FIFO for input and output
MIDI state machine in hardware for reduced interrupt request load
Invisible transmission via User bit of channel 56 (up to 48 kHz)
Invisible transmission via User bit of channel 28 (up to 96 kHz)
General
- Power supply
- external power supply
- Typical power consumption
- 9 Watts
- Current at 12 Volt operating voltage, idle
- 750 mA (9 Watts)
- Dimensions incl. rack ears, full depth (WxHxD)
- 265 x 44 x 159 mm (10.5" x 1.73" x 6.26")
- Dimensions without rack ears, body depth (WxHxD)
- 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
- Weight
- 1.03 kg ( 2.2 lbs)
- Temperature range
- +5° up to +50° Celsius (41° F up to 122°F)
- Relative humidity
- < 75%, non condensing
- Included power supply
- Internal switching PSU, 100 - 240 V AC, 2 A, 24 Watts
