RME HDSPe Opto-X Expansion Board  From RME

RME offers several Expansion Boards, that add more or other I/O ports to the internal cards of the Hammerfall, HDSP, HDSPe and DIGI96 series. The OPTO-X replaces the standard coaxial MADI I/O of the HDSPe MADI FX by an optical MADI I/O. The AI4S-192 AIO and AO4S-192 AIO add additional analog inputs and outputs of true studio quality to the HDSP 9632 and the HDSPe AIO. The Word Clock Module WCM adds a word clock input and two outputs in professional quality to the HDSP 9632, HDSPe RayDAT and the HDSPe AIO.

HDSP 9632 / HDSPe AIO

One AI4S-192 AIO and one AO4S-192 AIO can be connected simultaneously, for a maximum of 6 analog inputs and outputs. One TEB can be connected to the internal ADAT ports. The WCM adds one word clock input and two outputs. All options can be used at the same time.

HDSP 9652

Up to two TEBs can be used simultaneously.

Hammerfall DSP Multiface / Digiface

Multiface and Digiface use the Hammerfall DSP PCI card. This card has no internal inputs or outputs. Therefore no Expansion Boards can be used.

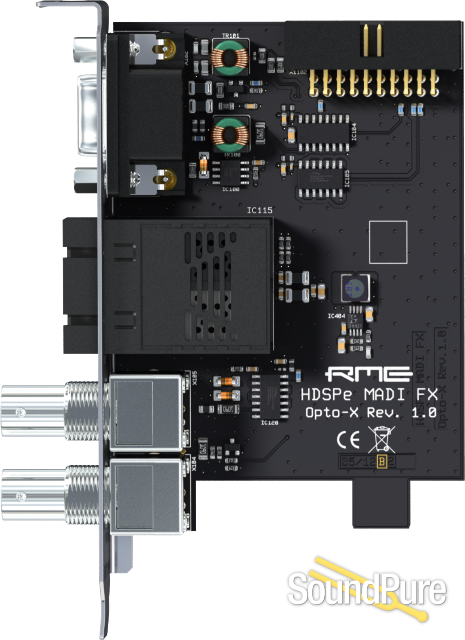

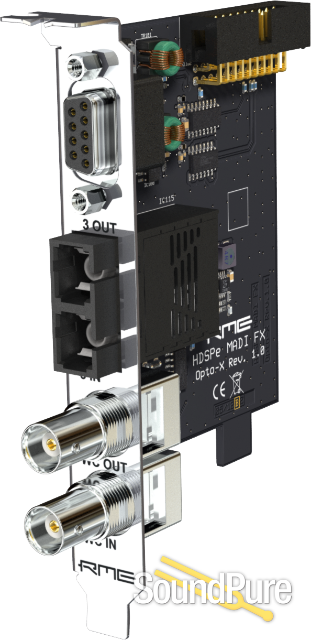

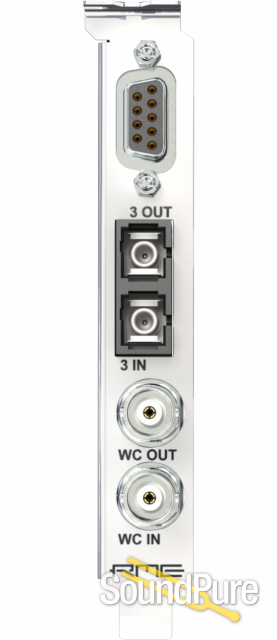

The OPTO-X is an alternative extension board for the HDSPe MADI FX triple MADI card with full functionality. Like the standard extension board it comes with Word Clock I/O and a D-sub connector for MIDI and AES I/O. The standard coaxial MADI I/O is replaced by an optical MADI I/O. Using the OPTO-X the HDSPe MADI FX then has three optical MADI I/Os
