Optional expansion board for HDSPe AoX cards, adds 2x MADI SFP and Word Clock
$259.00
Retail: $289.00
RME offers several Expansion Boards, that add more or other I/O ports to the internal cards of the Hammerfall, HDSP, HDSPe and DIGI96 series. The OPTO-X replaces the standard coaxial MADI I/O of the HDSPe MADI FX by an optical MADI I/O. The AI4S-192 AIO and AO4S-192 AIO add additional analog inputs and outputs of true studio quality to the HDSP 9632 and the HDSPe AIO. The Word Clock Module WCM adds a word clock input and two outputs in professional quality to the HDSP 9632, HDSPe RayDAT and the HDSPe AIO.
Compatibility
HDSP 9632 / HDSPe AIO
One AI4S-192 AIO and one AO4S-192 AIO can be connected simultaneously, for a maximum of 6 analog inputs and outputs. One TEB can be connected to the internal ADAT ports. The WCM adds one word clock input and two outputs. All options can be used at the same time.
HDSP 9652
Up to two TEBs can be used simultaneously.
Hammerfall DSP Multiface / Digiface
Multiface and Digiface use the Hammerfall DSP PCI card. This card has no internal inputs or outputs. Therefore no Expansion Boards can be used.

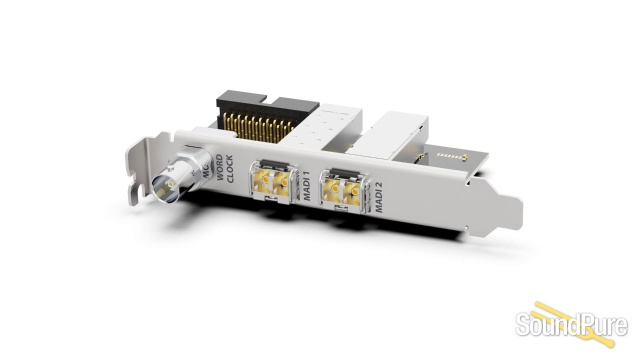

HDSPe AoX Expansion Board Optical Version: 2x MADI SFP module slots and Word Clock BNC connector (SFP Multi Mode modules included, SFP Single Mode module optional) with MADI I/O: 128/64/32 channels at 48/96/192 kHz sampling rate.
