From Radial Engineering

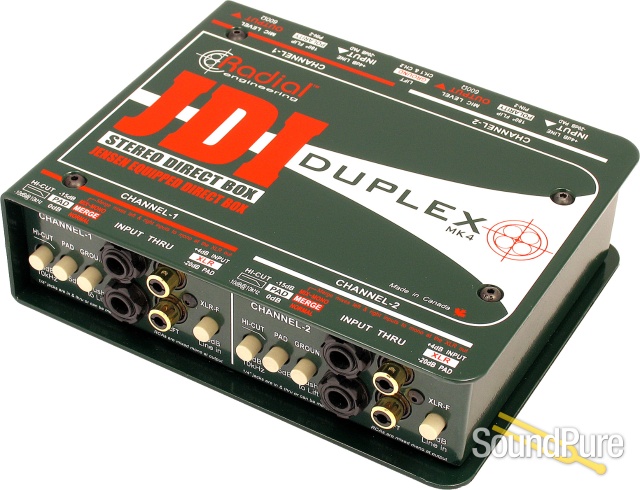

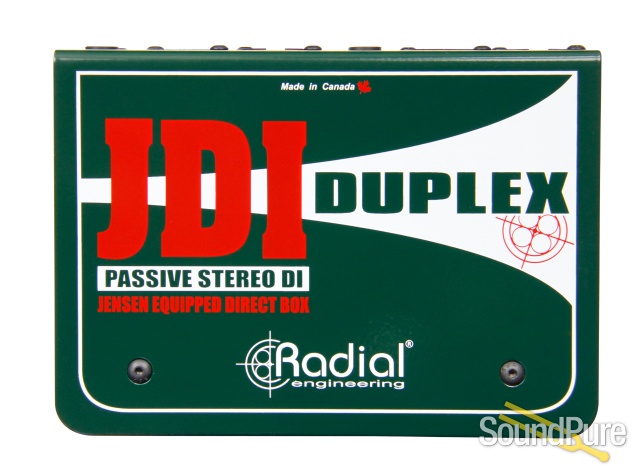

The JDI Duplex takes the exceptional transparency and wide bandwidth of the JDI Stereo passive direct box, and adds numerous connector types and line-level inputs to provide the audio technician with the ability to interface with any stereo sound source. Designed to handle extreme signal levels without distortion, it utilizes two world-class Jensen JT-DB-EPC audio transformers to deliver a smooth, warm sounding Bessel curve - reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI Duplex delivers the natural, pure sound of the instrument without artifact. The inputs can be accessed via 1/4", RCA, 3.5mm TRS, or XLR line-level connectors, making it easy to plug in any sound source, from stereo instruments to consumer playback equipment, or professional +4dB line-level audio equipment.
Features
- Linear response from 10Hz ~ 40kHz
- Enhanced connectivity with ¼”, RCA, and XLR inputs
- Extraordinary level handling without distortion
- Built to handle the rigors of live touring
Applications
- Digital piano, samplers and keyboards
- Stereo bass guitar & synth setups
- CD, DJ mixers and DVD players
- Inputs for line-level +4dB sources
Cool Stuff
- ‘Plug & play’ easy-to-use!
- Transformer isolation eliminates hum & buzz
- No battery or phantom power required
- Makes just about anything sound better!
- Jensen transformer equipped for ultimate performance
| Audio circuit type: | Passive, transformer based | |
| Transformer: | Jensen JT-DBE | |
| Number of channels: | 2 | |
| Frequency response: | 20Hz ~ 20kHz at +/- 0.2dB | |

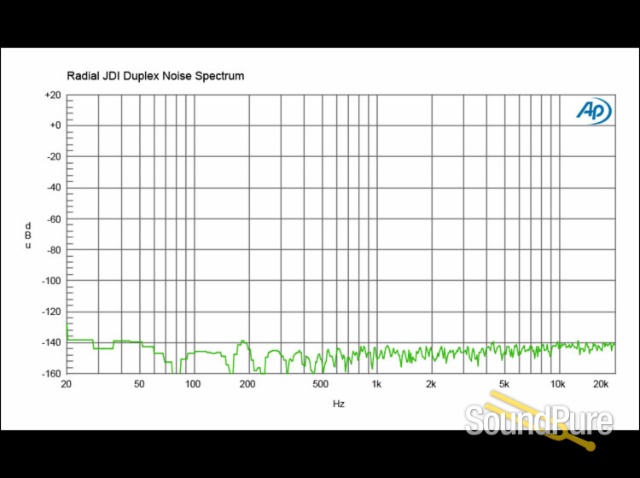

| Dynamic range: | 135dB | |

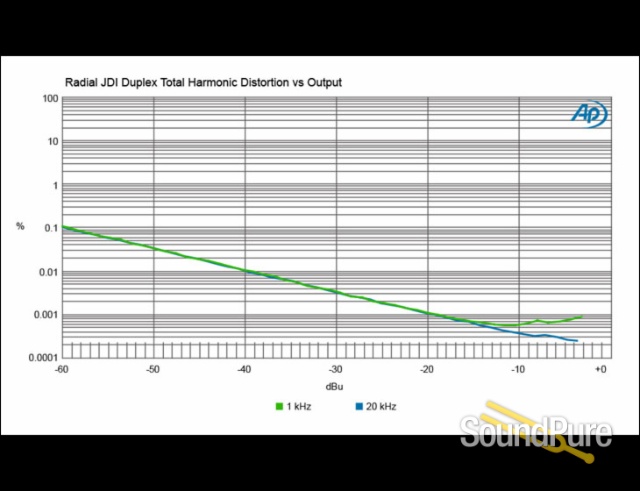

| Total harmonic distortion: | 0.001%; 1kHz/+4dBu; 600 Ohm load | |
| Phase Deviation: | -1° @ 20Hz; 0.5° @ 150Hz; 600 Ohm load | |
| Input Impedance: | 140k Ohm PAD off; 10k Ohm PAD on | |
| Output Impedance: | 600 Ohms | |
| Maximum Input: | +20dB @ 1kHz | |
| Features | ||

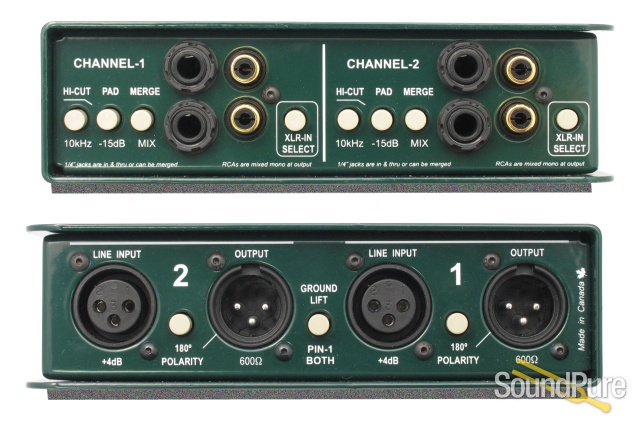

| Input pad, Mono Sum, 180° polarity reverse, Ground lift | ||
| Input Connectors: | 1/4", RCA, 3.5mm, XLR | |
| Output Connectors: | XLR, 1/4" thru | |
| Extras: | Line Level or hi-Z input | |
| General | ||
| Construction: | 14 gauge steel chassis & outer shell | |
| Size (L x W x D): | 160mm x 48 x 127mm (6.3" x 1.9" x 5") | |
| Weight: | 1kg (2.2lbs) | |
| Shipping size (L x W x D): | 210 x 159 x 83mm (8.25" x 6.25" x 3.25") | |
| Shipping weight: | 1.43 kg (3.15 lbs) | |
| Power: | Passive, no power required | |
| Conditions: | For use in dry locations only between 5°C and 40°C | |
| Warranty: | Radial 3-year, transferable | |
