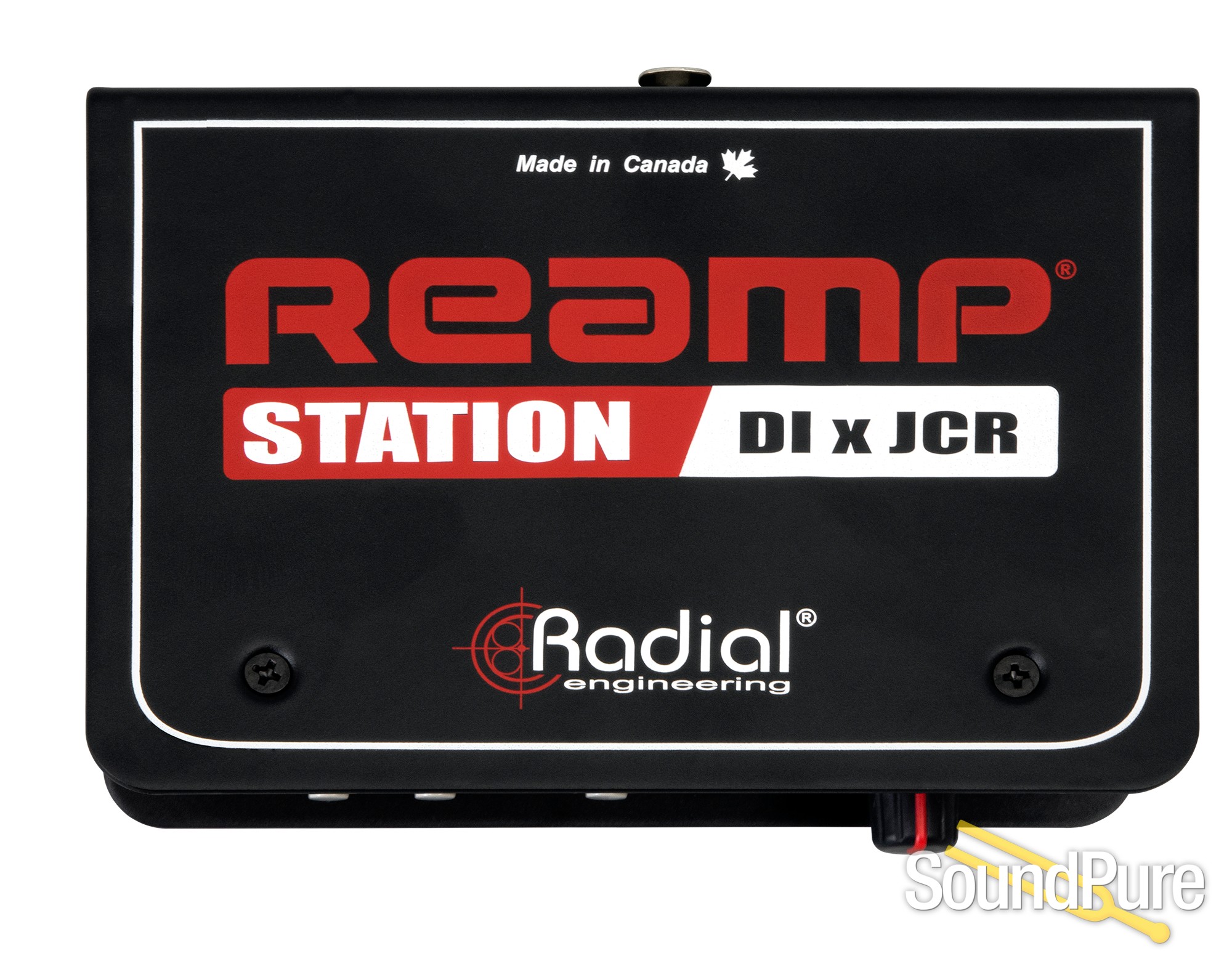

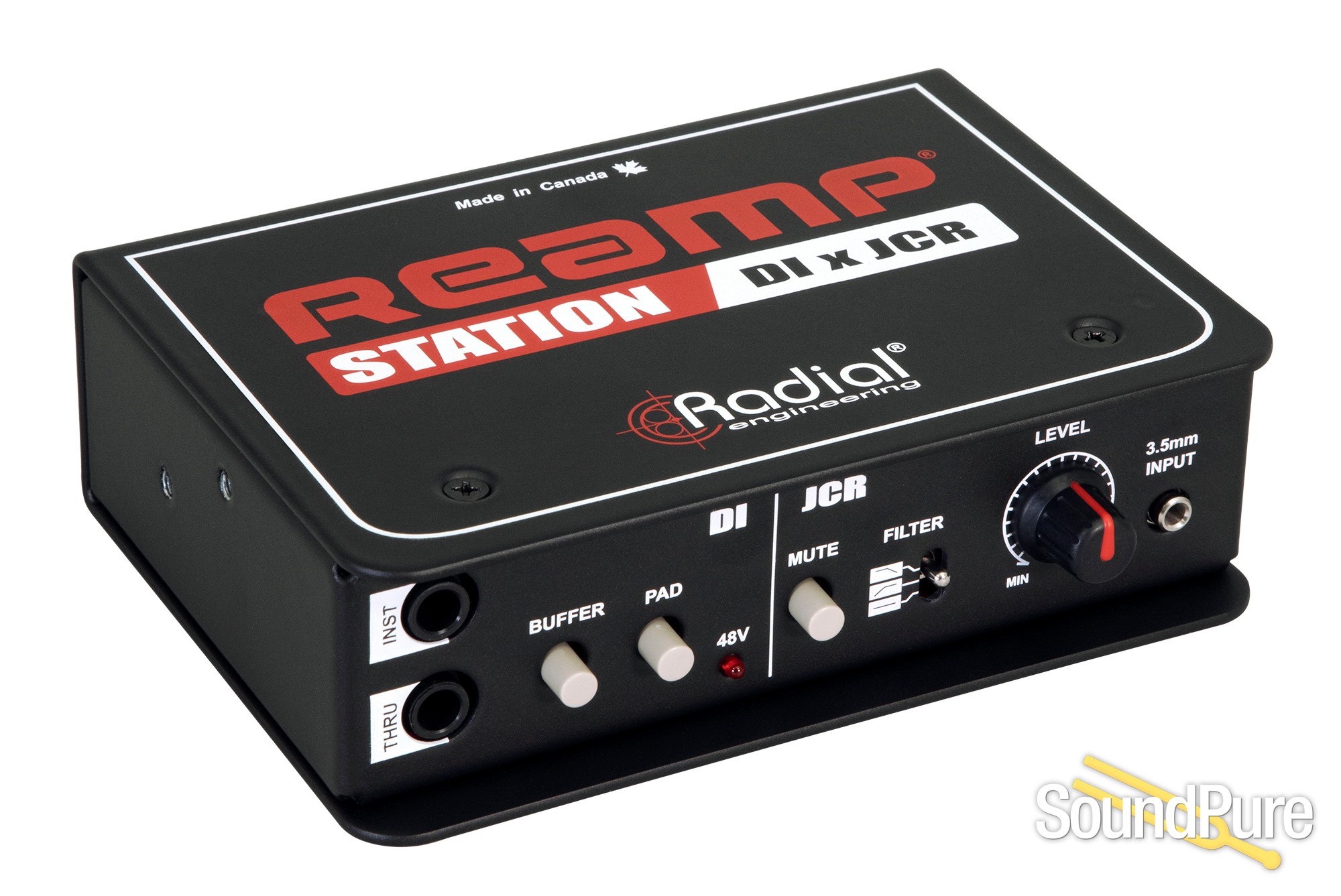

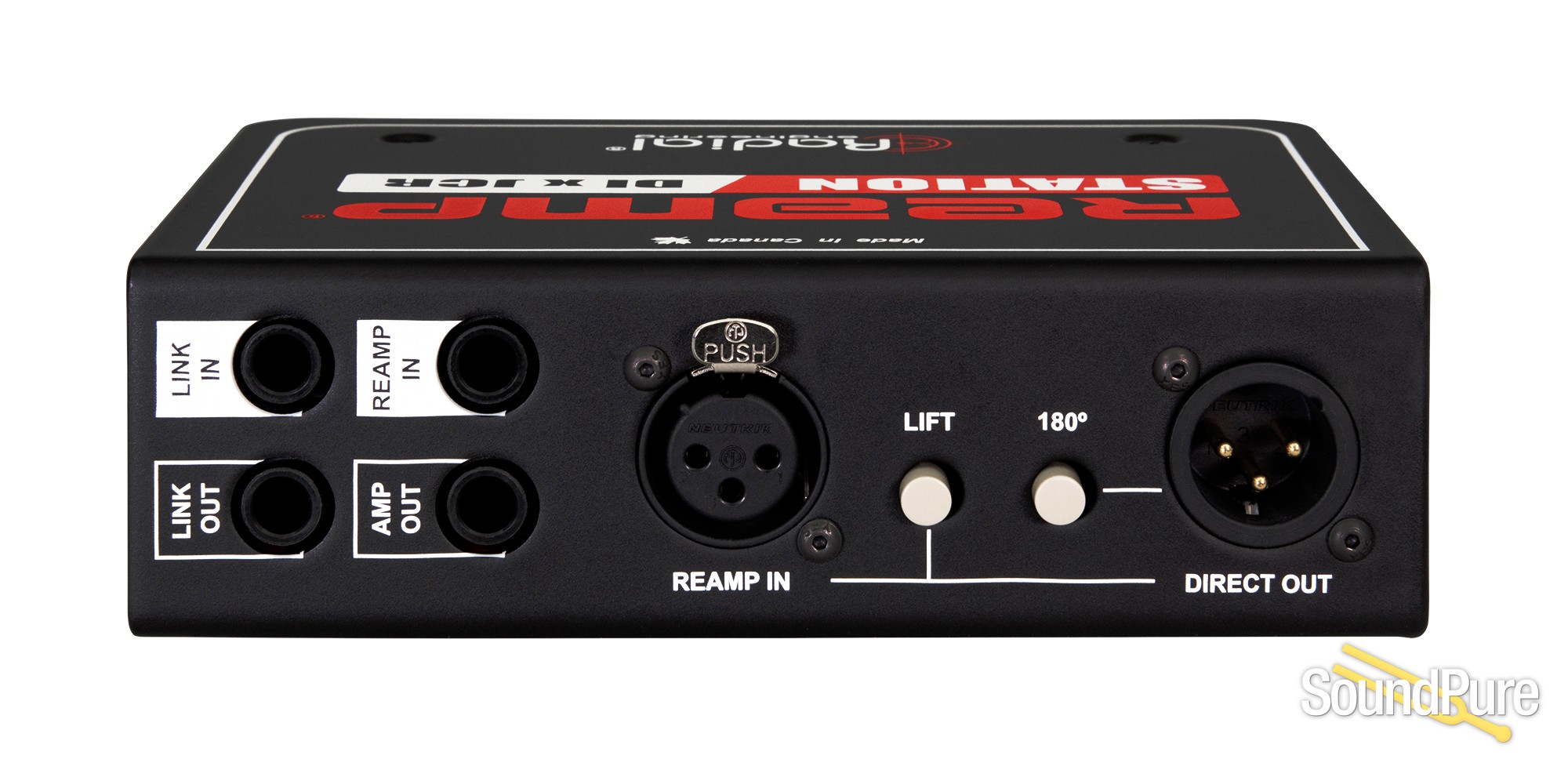

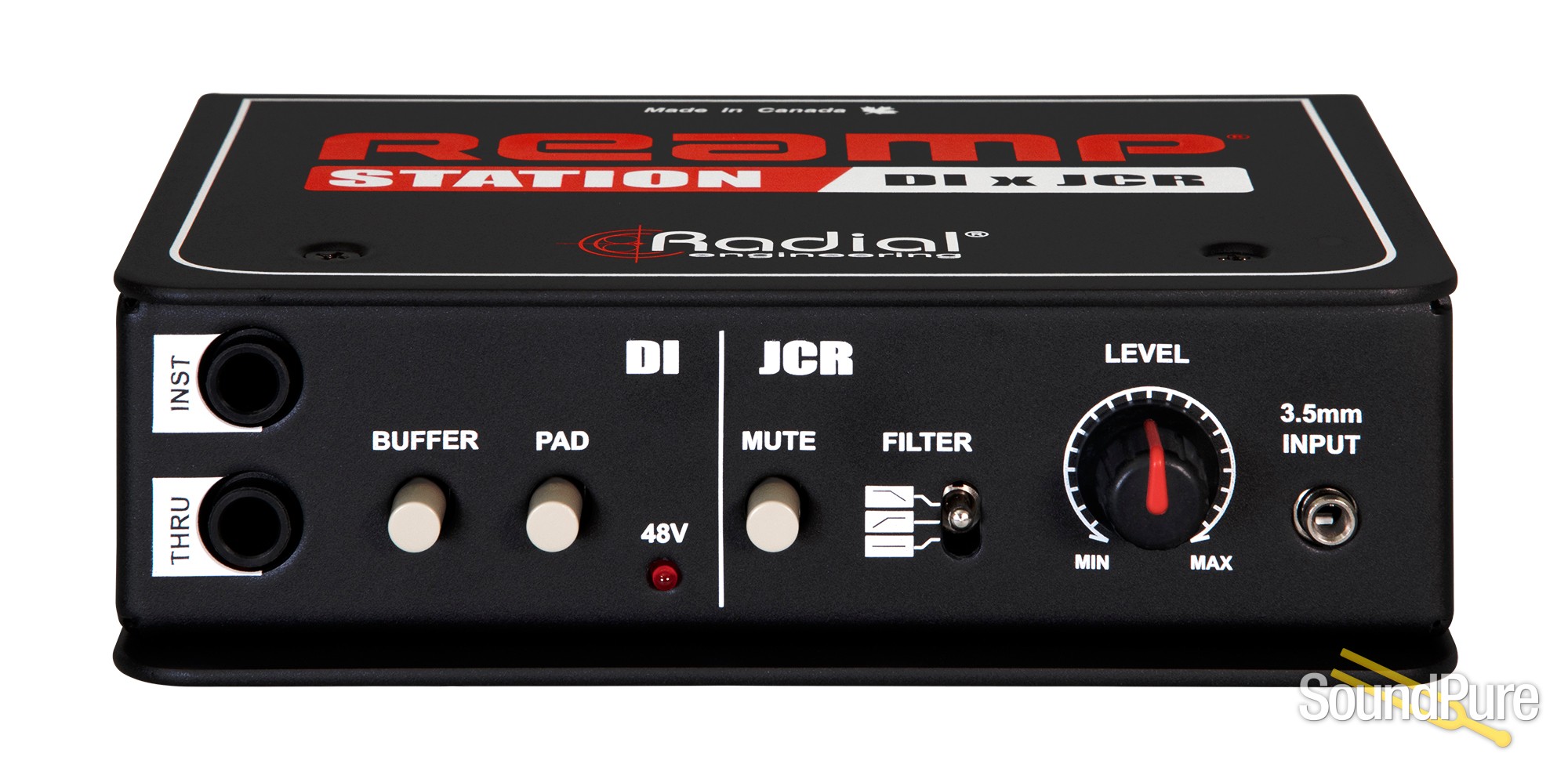

Radial Engineering Reamp Station  From Radial

Studio Reamper & Direct Box

Radial Engineering

$479.99

Retail:  $576.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Your credit card will not be charged until the item ships (do not use a debit card).
Payments as low as $42/mo.

Manufacturer's Description from Radial

The Reamp Station combines two studio essentials in one chassis: an active DI box for pristine recordings of any instrument, and the JCR high-performance Reamper to feed those recordings to your guitar amps and pedals during mixdown.
  • Record high-quality direct tracks using the active DI
  • Reamp any recorded tracks through pedals and amps
  • Connect easily with XLR, 1/4″ TRS, and 3.5mm Reamp inputs
  • Streamline your studio recording and mixing workflow
  • Unlock new creative possibilities for your mixes



Record with confidence

A great Reamping session starts with a clean, high-quality direct recording -which is why the DI you choose is so important. The active DI portion of the Reamp Station is based off of Radial's world-class J48, tweaked slightly to provide maximum benefit for recording tracks that can be Reamped later on. Among these changes is a buffer switch, which engages a unity-gain Class-A buffer circuit on the Thru output, preventing any loading down of passive pickups when connected to an amplifier and preserving the natural tone of your instrument. The DI circuit is powered via 48V phantom from your interface or mixer, so there's no need for a separate power supply, and a front panel LED indicator for visual confirmation that power is being received.



Reamp without limits

The Reamper side of the Reamp Station will be familiar to many professional recording engineers and home enthusiasts alike. It takes the circuit from the Reamp JCR, originally designed by acclaimed engineer John Cuniberti, and ports it into a multi-use studio tool. The JCR features a custom-wound 'Made in the USA' transformer to convert the line-level signals from an audio interface so they are optimized to feed guitar pedals and amplifiers, while also including a level control, 3-position filter, and a mute switch to protect your ears when adjusting mic placement on a live amp. In addition to the XLR and balanced 1/4" TRS inputs for the Reamper, a 3.5mm mini input is also included for easy connection to mobile devices such as smartphones and tablets to streamline playback and encourage additional creativity.





The complete package

With a world-class DI box and the JCR Reamper under the hood, the Reamp Station is the latest must-have piece of gear for studio recording. With this powerful unit next to your amplifier, you can seamlessly switch from recording a performance to Reamping and exploring new creative sounds, while knowing that you'll achieve the highest audio quality during each step. It's also rack mountable using the optional SA Series rack adaptor, and Link In/Out connections are provided to daisy-chain multiple Reamp Stations together for larger setups.

Radial Engineering

About Manufacturer

Radial Engineering is a manufacturer and distributor of professional audio equipment, building tools for the working audio and audio-video professional. Radial is located on the Fraser River, just outside Vancouver, British Columbia in the municipality of Port Coquitlam. The company began operations in the fall of 1991 as the Canadian distributor of Mogami cable and Jensen Audio Transformers. In 1992, it became a limited corporation under the JP Cabletek Electronics Ltd. banner. The Radial name was first used on house branded cables and snake systems. The Radial name and logo represents a cross section of quad cable; Radial being round. In 1996 the Radial JDI direct box was launched. This led the way to the Radial JDV and today, over 50 electronic products are now being produced under the Radial, Tonebone and Forest Audio brands. In 2001, the Primacoustic brand was launched to address the growing demand for acoustic products for the burgeoning home recording market and in 2006, the company officially changed its name to Radial Engineering Ltd.

Specifications



Direct Box
Audio Circuit Type: Proprietary Active Circuit
Frequency Response: 5Hz to 20kHz (+/-0.5dB)
Total Harmonic Distortion: 0.004% @ 1kHz, 0dBu
THD + Noise: 0.004% @ 1kHz, 0dBu
Intermodulation Distortion: 0.005% @ -10dBV
Signal to Noise Ratio: 94dB
Dynamic Range: 100dB
Input Impedance: 220k Ω
Output Impedance: 185 Ω



JCR Reamper


Audio Circuit Type: Passive, transformer based
Frequency Response: 0Hz to 20kHz (+/-0.5dB)
Total Harmonic Distortion: 0.002% @ 1kHz, +4dBu
THD + Noise: 0.005% @ 1kHz, +4dBu
Intermodulation Distortion: 0.001% @ 0dBV
Signal to Noise Ratio: 88dB
Dynamic Range: 100dB
Input Impedance: 1.4k Ω
Output Impedance: 5.1k Ω



Features


Input connections:



1/4”, XLR, 3.5mm
LED Indicators: 48V phantom (Direct box only)
Output Connectors: 1/4”, XLR
Mounting Options: SA series rack mount kit available



General


Power: 48V phantom power (Direct box features only)
Construction: 14-gauge Steel Chassis & Outer Shell
Finish: Durable Powder Coat
Conditions: For use in dry locations only
Warranty: Radial 3-year, transferable
