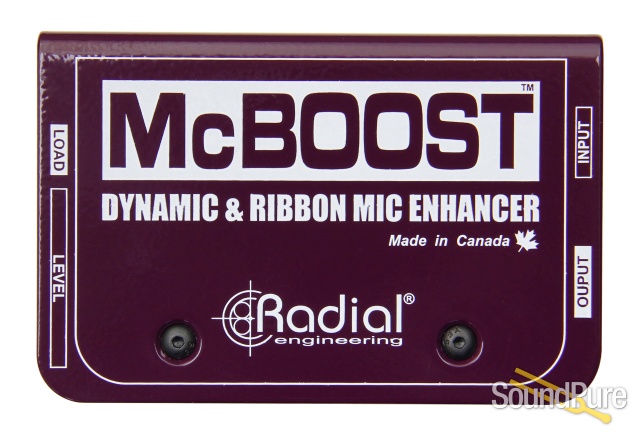

Radial Engineering McBoost Microphone Signal Intensifier  From Radial

An invaluable studio tool, the McBoost provides 25dB of clean gain for your dynamic & ribbon!

Radial Engineering

$229.99

Retail:  $276.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

Close
Sales Tax
Sales tax is only collected in the following states: FL, GA, NC, OH and VA. If your state is not listed, sales tax will not be collected on your order.
Usually ships 6-10 business days after order.
Payments as low as $20/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from Radial

  • 25dB signal booster for dynamic & ribbon mics
  • Extends dynamic range and microphone reach
  • Uses standard 48V phantom for power
  • 3-position load switch and high-pass filter
The Radial McBoost™ is a high performance microphone signal booster designed to elevate the output of a typical dynamic microphone for greater transient response and boost the signal of a low-output ribbon mic to bring it up to a usable level for mixing consoles or preamps that may not provide sufficient gain.

The 100% discrete class-A circuit design begins with a dual-transistor J-FET circuit to produce up to 25dB of gain without introducing noise, color or artifact. Each individual transistor is carefully measured and batch-sorted to comply with the design specification to certify performance. As with all Radial™ products, the circuit board is then loaded into a 14-gauge, I-beam, reinforced steel enclosure to prevent outside stress from torquing which otherwise could lead to premature part failure. A book-end cover creates protective zones at each end to safeguard the switches, potentiometer and connectors from the rigours of the road.

Merely connect the McBoost in-line using standard 3-pin XLRs and activate 48V phantom to provide power. Select between three impedance settings to optimize the response and then reduce low-frequency clutter with the 3-position high-pass filter. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage or in a broadcast center
Radial Engineering

About Manufacturer

Radial Engineering is a manufacturer and distributor of professional audio equipment, building tools for the working audio and audio-video professional. Radial is located on the Fraser River, just outside Vancouver, British Columbia in the municipality of Port Coquitlam. The company began operations in the fall of 1991 as the Canadian distributor of Mogami cable and Jensen Audio Transformers. In 1992, it became a limited corporation under the JP Cabletek Electronics Ltd. banner. The Radial name was first used on house branded cables and snake systems. The Radial name and logo represents a cross section of quad cable; Radial being round. In 1996 the Radial JDI direct box was launched. This led the way to the Radial JDV and today, over 50 electronic products are now being produced under the Radial, Tonebone and Forest Audio brands. In 2001, the Primacoustic brand was launched to address the growing demand for acoustic products for the burgeoning home recording market and in 2006, the company officially changed its name to Radial Engineering Ltd.

Specifications

Specifications
Audio circuit type:  Class-A Differential FET/Bipolar Hybrid
Frequency response: 7Hz to 30kHz
Total harmonic distortion:  0.005% @-30dB
Dynamic range:  105dB
Maximum input:  -6dBu
Maximum gain:  +25dB
Equivalent input noise:  -120dBu
Input impedance:  600 Ω
2.7k Ω
30k Ω
Clip level - input:  -17dBu / -14Bu / -9dBu
Clip level - output:  +10dBu
Noise floor:  -95dBu / -98dBu / -113dBu
Output impedance:  2.2k Ω
Intermodulation distortion:  0.01%
Phase Deviation:  0° @ 20Hz, <10° @ 20kHz

Features
Gain control: Variable from +4dB to +25dB
High-pass filter:  100Hz and 55Hz @-3dB
Filter slope:  6dB / Octave
XLR configuration: Pin 2 + / Pin 3 - / Pin 1 Ground

General
Construction:  14 gauge steel chassis & outer shell
Finish: Durable powder coat
Size: (L x W x H) 4.2" x 2.76" x 1.68" (106.7 x 70.1 x 42.7mm)
Weight:  .5 lbs (0.23kg)
Shipping size: (L x W x H) 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
Shipping weight: 1.4lbs (0.64kg)
Power:  48V phantom
Conditions: For use in dry locations only between 5°C and 40°C
Warranty:  Radial 3-year, transferable
Specifications are subject to change without notice.

Downloads

Action

Name

Description

McBoost Manual
