Radial Engineering JD6 6 channel rack mount direct box  From Radial

Radial JD•6 Six-channel Rackmount DI

Radial Engineering

$1,099.99

Retail:  $1,320.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Payments as low as $25/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from Radial

  • Six channel rack DI for live stage and studio
  • Jensen transformers add warmth to digital sources
  • Handles high signal levels without distortion
  • Front and rear panel connectivity for added routing options

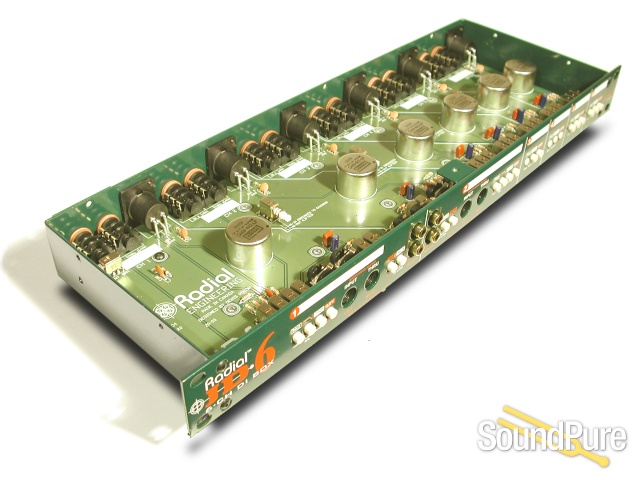

The Radial JD6 is a high performance 6-channel rackmount direct box designed for the most demanding studio and live touring applications. Stemming from the industry standard Radial JDI, the JD6 incorporates six top-of-the-line Jensen audio transformers with extra RF filtering to ensure optimal signal transfer without noise, distortion or artifact of any kind.

Jensen transformers are legendary in their ability to withstand extreme signal levels without choking. This makes the JD6 particularly effective when managing high output active devices such as digital pianos that will often overload most direct boxes or preamps. The passive design further benefits due to its ability to provide galvanic isolation from the input to the output, thus eliminating the hum and buzz that is often encountered due to ground loops and DC current offsets. This makes the JD6 particularly effective for use with keyboards, drum machines, electronic drums and audio sources such as CD players or computers.

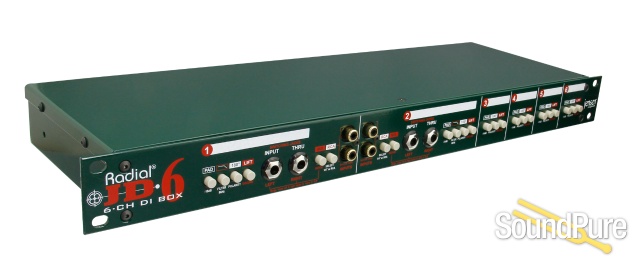

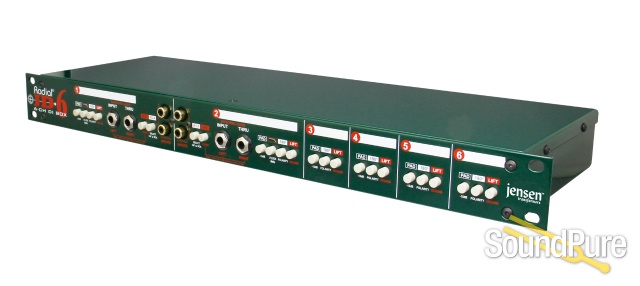

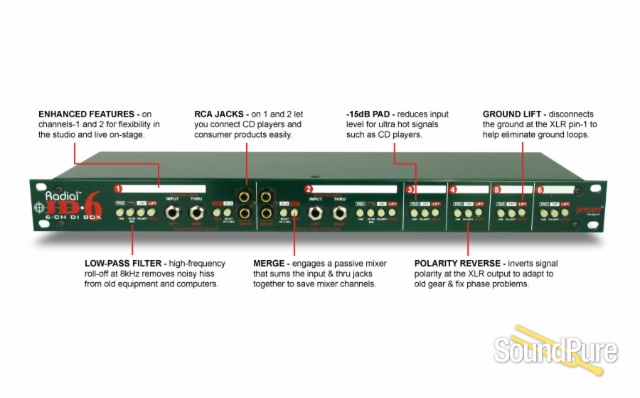

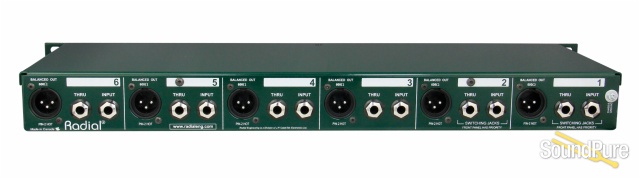

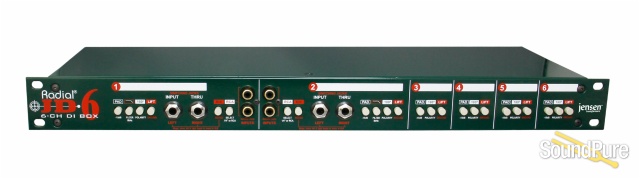

Each JD6 channel is equipped with a rear-mounted ¼" instrument input and thru-put for the artist's amp plus a lo-Z balanced mic level XLR output to feed the mixing desk. The front panel presents an ergonomically efficient array of switches and connectors including ground lift, 180º polarity reverse, stereo to mono merge plus a low-pass filter to reduce unwanted high frequency noise that is common with older vintage keyboards. Channels 1 and 2 are supplemented with front panel 'priority' connectors for improved efficiency.

These features combine to present a true 'Swiss army knife' of options making the Radial JD6 the finest rack DI made today.

Radial Engineering

About Manufacturer

Radial Engineering is a manufacturer and distributor of professional audio equipment, building tools for the working audio and audio-video professional. Radial is located on the Fraser River, just outside Vancouver, British Columbia in the municipality of Port Coquitlam. The company began operations in the fall of 1991 as the Canadian distributor of Mogami cable and Jensen Audio Transformers. In 1992, it became a limited corporation under the JP Cabletek Electronics Ltd. banner. The Radial name was first used on house branded cables and snake systems. The Radial name and logo represents a cross section of quad cable; Radial being round. In 1996 the Radial JDI direct box was launched. This led the way to the Radial JDV and today, over 50 electronic products are now being produced under the Radial, Tonebone and Forest Audio brands. In 2001, the Primacoustic brand was launched to address the growing demand for acoustic products for the burgeoning home recording market and in 2006, the company officially changed its name to Radial Engineering Ltd.

Specifications

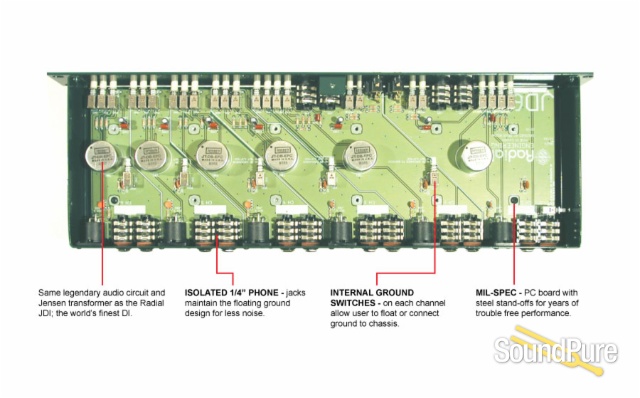

The Radial JD6 is a multi-channel passive direct box that has been specifically designed to address the needs of concert touring, while being equally at home in the studio. The JD6 houses six completely independent Jensen® transformer isolated channels for minimal cross-talk and maximum protection against noise, 60 cycle hum, and buzz. Jensen® transformers are legendary in their ability to reject noise caused by RF, magnetic induction, and 'ground loops' while producing an exceptionally wide bandwidth and warm Bessel response. The JD6 employs the same audio circuit as the renowned Radial JDI for explosive signal handling, virtually zero phase distortion, and a truly linear response.



Specifications

RADIAL JD6

Audio circuit type:

Passive, transformer based

Number of channels:

Six channels

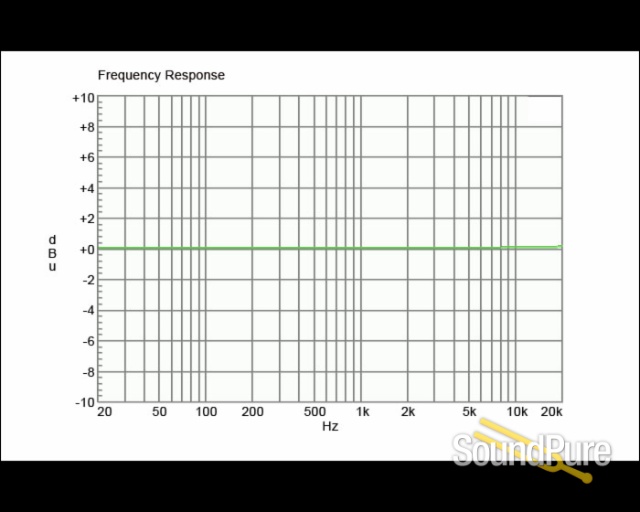

Frequency response:

20Hz ~ 20KHz (± 0.2dB)

Dynamic range:

135dB

Maximum input:

+21dB @ 20Hz

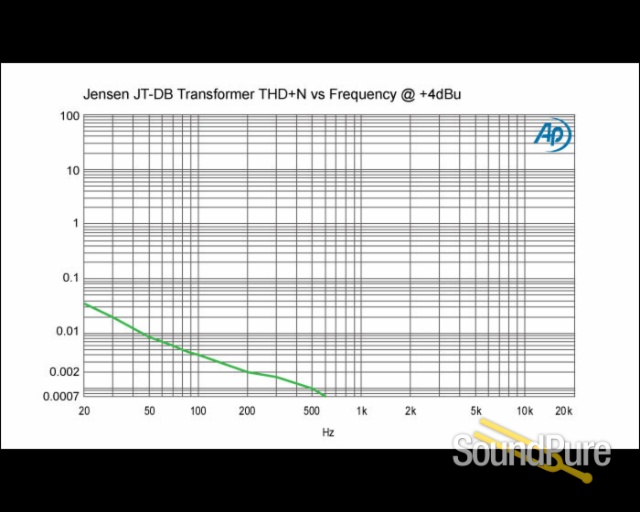

Total harmonic distortion:

0.05% from 20Hz ~ 20kHz @-10dB

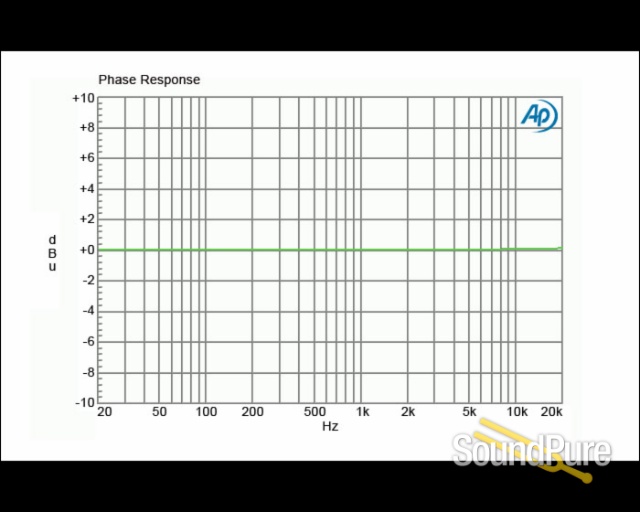

Phase deviation:

0.3° @ 100Hz; 3° @ 20Hz

Input impedance:

140k Ohms, unbalanced

Output impedance:

150 Ohms, balanced



Features



Transformer:

Jensen JT-DBE, 12:1 ratio

Shield:

Dual Faraday, mu-metal can

Input pad:

-15dB

Merge:

Sums left & right sources to mono (ch. 1 & 2 only)

180° polarity reverse:

Inverts absolute phase

Ground lift:

Disconnects pin-1 at XLR output

XLR configuration:

AES standard (pin-2 hot)

Connectors (ch. 1 & 2):

RCA L/R in, 1/4" in & thru, XLR-M out

Connectors (ch. 3 ~ 6):

1/4" in & thru, XLR-M out



General



Construction:

14 gauge steel chassis & outer shell

Finish:

Baked enamel

Size:  (W x H x D)

483 x 44.5 x 159mm ("19" x 1.75" x 6.25")

Weight:

Looking for this spec

Shipping Size: W x H x D:

260 x 114 x 568mm (10.25" x 4.50" x 22.37")

Shipping Weight:

3.7 kg (8.15 lbs)

Power:

Passive, no power required

Warranty:

Radial 3-year, transferable

Specifications are subject to change without notice.
