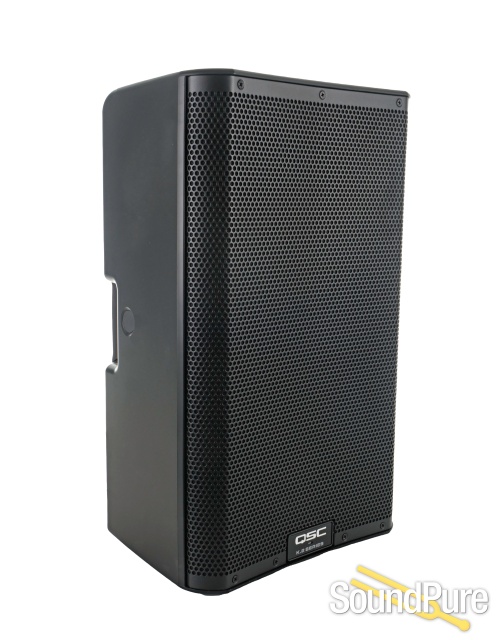

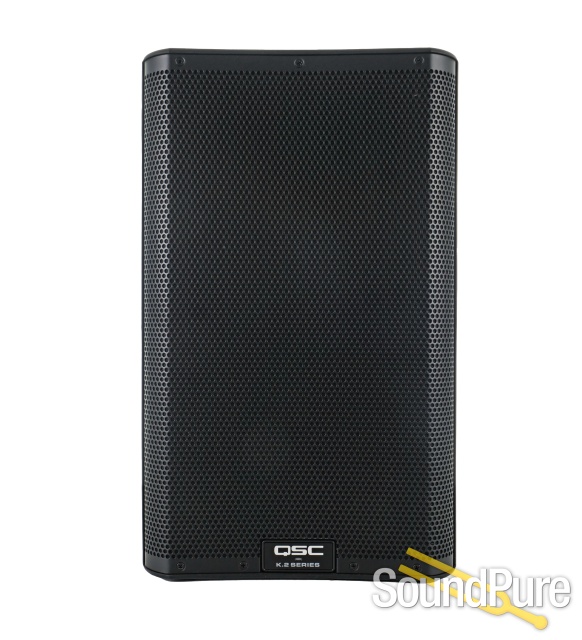

Model

K10.2

Configuration

Multi-purpose, 2-way active loudspeaker

LF Transducer

254 mm (10-inch), cone

HF Transducer

35.6 mm (1.4-inch) titanium diaphragm compression driver

Frequency Response

(-6 dB)56 Hz - 20 kHz

Frequency Range

(-10 dB)50 Hz - 20 kHz

Nominal Coverage Angle

90° Axisymmetric

Maximum Rated SPL1

130 dB @1 M, peak 124 dB @ 1 M, continuous

Amplifier

Class D; Peak: 1800 W (LF), 225 W (HF)

Cooling

Low-noise, variable speed fan

Controls

Power, 3 × Level, Rotary encoder (push), 2 × selection buttons

IndicatorsMonochrome LCD Display 45 mm × 25.4 mm (1.75-inch x 1-inch), 2 × Power LED (front and rear), 3 × Input Signal LED, Input A Mic selected LED, Input B Hi-Z selected LED, Limiter active LED

Connectors

2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input, 1 × 3.5 mm TRS (Stereo Input), 2 × XLR/M (Loop-thru Output), 1 × XLR/M (Mix Output), 1 × locking IEC power connector

AC Power Input

Universal power supply 100 – 240 VAC, 50 – 60 Hz

AC Power Consumption

1/8th Power2100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A

AC Power Consumption - Standby

0.2 A at any voltage

Enclosure Details

Enclosure

Impact Resistant ABS

Attachment Points

2 × M10 threaded inserts plus Pull-Back

Color

Black (RAL 9011)

Grille

18 Gauge powered coated steel, internal cloth lining

Speaker Dimensions (H×W×D)

519 × 320 × 300 mm; 20.4 × 12.6 × 11.8 in

Carton Dimensions (H×W×D)

570 × 440 × 406 mm; 22.5 × 17.3 × 16 in

Net Weight

14.5 kg / 32 lb

Shipping Weight

17.6 kg / 38.8 lb
