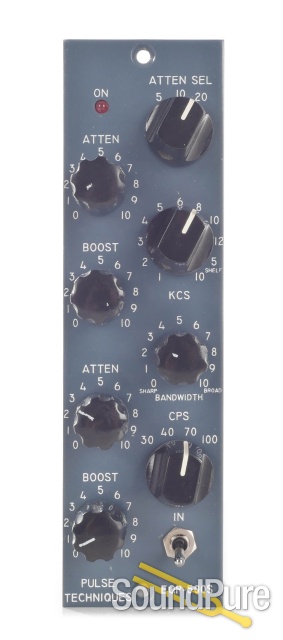

In the early 1970's, after condescending the classic 3U model EQP-1A into the 2U form factor model EQP-1A3 (same components, same specs), Pulse Techniques introduced a solid-state line amp version of the EQP-1A3. Those versions of the EQP-1A3, based on the venerable API 2520 op-amp, is preferred by some engineers for certain applications (kick, bass, etc.) Pulse has taken this proven design to the next stage by packing them into the 500 series form factor. These EQ's deliver all of the punch and mojo of their full-sized counterparts.
- Number of Channels
- 1
- Number of Bands
- 2-band EQ
- Inputs
- 500 Series compatible
- Boost/Cut Range
- ±17.5dB
- Frequency Response
- 20Hz-20kHz
- Freq Range High
- 10kHz, 12kHz peak boost, 20kHz shelf boost/attenuate
- Freq Range Hi-Mid
- 1kHz-6kHz, 8kHz peak boost
- Freq Range Low
- 30Hz, 40Hz, 70Hz, 100Hz shelf boost/attenuate
