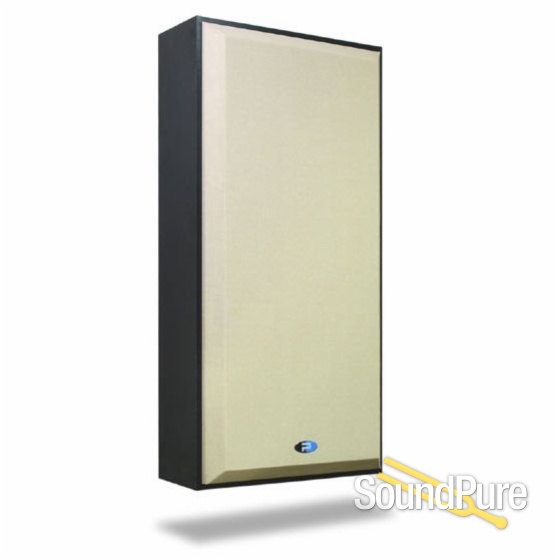

Primacoustic FullTrap - Broadband Bass Trap  From Primacoustic

The FullTrap is the perfect solution for bass trapping in rooms where corner mounting is not an option due to windows, doors, or other obstacles.

Primacoustic

$574.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $50/mo.

Manufacturer's Description from Primacoustic

  • High Performance wall mount bass trap
  • Suspended diaphragm absorbs bass below 50Hz
  • High density front absorber controls highs & mids
  • Ideal for small rooms where modes cause problems

The Primacoustic FullTrap is a highly effective bass trap that combines a diaphragmatic resonator, a full-size acoustic panel, and a sealed enclosure to provide 3-way absorption throughout the full frequency spectrum.

This unique design begins with a front-mounted 24" x 48" – 3" thick Broadway panel made from 6lb per cubic foot high-density glass wool fiber. This effectively absorbs frequencies down to 125Hz and extends below 100Hz. Behind the panel, a closed air space takes full advantage of quarter-wavelength principles to further reinforce low frequency absorption in this critical bass region.

But where the FullTrap truly shines is in its capacity to absorb deep low bass. The FullTrap's remarkable low frequency extension is achieved by way of a suspended diaphragm that stretches nearly the full height of the device and essentially acts like a huge microphone, capturing bass by vibrating where the low frequencies are most prominent. As room modes combine, they either reinforce certain frequencies or cancel them out. The FullTrap's limp-mass structure naturally migrates to the most powerful frequencies where it quietly resonates to remove excess bass and subsequent modal frequencies.

The FullTrap ships flat and assembles in minutes using standard household tools. The FullTrap is the perfect solution for bass trapping in rooms where corner mounting is not an option due to windows, doors, or other obstacles. The FullTrap can also be used to reinforce other traps when a room demands additional bass control. When combined with Primacoustic Broadway panels and diffusers, one can turn virtually any room into a well-balanced acoustic space.

The FullTrap comes in 3 fabric colors: Black, Beige and Grey


Primacoustic

About Manufacturer

If you are listening to the sound system in a church, PA system at an airport, or a concert in a hockey arena and are not impressed, it is probably not the fault of the PA system, but more likely the lack of proper acoustical treatment in the room.

Architects have just begun to understand that a great looking room that may be ‘functional for people’, may in fact introduce horrendous results when it comes to acoustics. This can be partially attributed to the lack of inter-disciplinary cross-training at universities and from a historical perspective, the science of acoustics has been kept a ‘dark secret’ that could only be conjured by mythical creatures called acousticians.

But this is changing. Through trial and error, advanced computer modeling and greater understanding of acoustical behavior, we can now predict with relative certainty how sound will behave in a given room. And as more and more folks have come in contact with acoustics, there is an appreciation for the benefits which, only a decade ago, were simply invisible. In fact awareness regarding the importance of acoustic sound control has gained such prominence that many top notch sound contractors will refuse to switch out the PA system in a church unless problems with the acoustics have been resolved for fear that the new PA will not yield any improvement and will only serve to tarnish their reputation.

Radial Engineering Ltd. pioneered the benefits of acoustics nearly 20 years ago by importing a brand of acoustic panels from Europe and supplying them to our customers. We quickly became frustrated as the product was expensive and it seemed that the company’s focus was heading towards industrial noise control—not music. We wanted a solution for studios, churches, broadcast and other music related venues. Primacoustic was created in Year-2000 as a means to provide simple solutions. Little did we know that within 10 years the market would completely shift, that most professional recording would move from the studio to the home and that schools and churches would begin to realize that the majority of their room problems were in fact caused by poor acoustics, not the audio system.

Today, Primacoustic has become a market leader in high performance acoustic products. Our ground-breaking Broadway acoustic panels not only grace the studio walls of international artists such as Tommy Lee, Nathan East, Scott Henderson, and David Bottrill, they have also been selected at gaming giants Electronic Arts and Transformers and were used to control the acoustics at the Vancouver 2010 Winter Olympics by US giant NBC and Canada’s CTV in the International Broadcast Center.

Primacoustic begins with the premise of a no-compromise approach on acoustical performance. In fact, Broadway panels are as good, if not better, than the most expensive panels made today. The ‘win’ is achieved by following the ‘Model T Ford approach’ of mass producing a limited selection as a means of lowering costs.

Primacoustic offers a wide array of acoustic solutions that spans all market segments. This includes special T-bar ceiling tiles that help retain sound inside a boardroom, acoustic clouds for call centers and studios and bass traps & diffusers for high end control rooms. Each product is engineered to deliver maximum performance while presenting the very best value.

Specifications



Frame Material: Black melamine laminated MDF
Dimensions: 24” (610mm) x 48” (1219mm) x 8” (203mm)
Panel Material: Formed, semirigid inorganic glass fibers; Density 6.0 lbs. pcf. (96 kg/m3)
Fabric Facing Acoustically transparent polyester
Diaphragmatic Membrane: Loaded vinyl, 1.0 lbs. per square foot (4.88 Kg/m2)
Fabric Color Codes: Black=00, Beige=03, Grey=08
Order Number: Z840-1100-xx (xx denotes color code 00=Black; 03= Beige; 08=Grey)
Mounting Hardware: Wall mounting cleat, wood screws and drywall anchors included.
