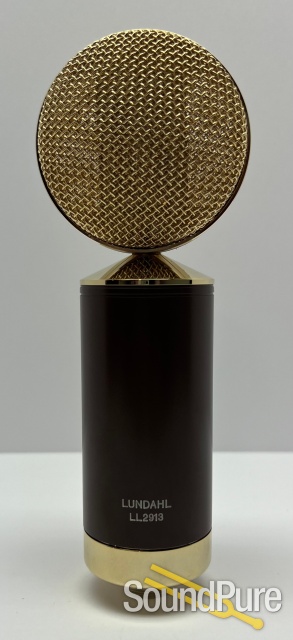

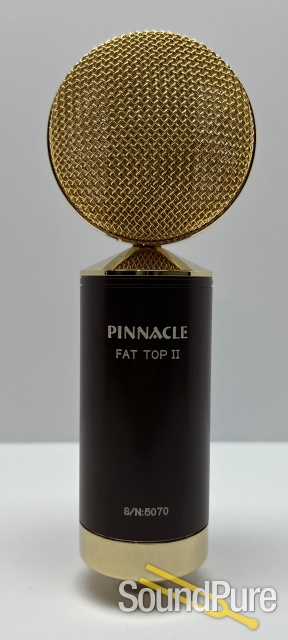

Pinnacle Fat Top II Brown w/ Lundahl Deluxe Ribbon Mic  From Pinnacle

Pinnacle Microphones

$599.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $52/mo.

Manufacturer's Description from Pinnacle

The Fat Top II is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room. Fat Top II comes standardly fitted with the upgraded Lundahl LL2913 transformer. Introducing the upgraded Lundahl to the already quality hardware makes for an extended frequency range. This gives the mic improved definition, lower floor and higher ceiling.

Pinnacle Microphones

About Manufacturer

We offer only high quality short and long ribbon professional microphones. Pinnacle Microphones are assembled and customized in Washington State. Check out our popular Fat Top short ribbon microphone.

Specifications

  • Type: Ribbon (velocity) Microphone
  • Ribbon Type & Dimensions: 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)
  • Polar Pattern: Symmetrical Figure 8
  • Sensitivity: -54.4 dB (1.5 (mV/Pa)
  • Frequency Response: 30 to 15 KHz (+/- 3dB)
  • Impedance: <=200 Ohms
  • Recommended Load Impedance: 1000 Ohms
  • Max.SPL (1% THD @1000 Hz): 135 dB
  • Equivalent Noise Level: to IEC 268-4 (A weighted) 17dB
  • S/N ratio: re 1Pa: 70 dB
  • Connector: 3-Pin Male XLR
  • Size: Diameter: 3” (O.D. grill), overall length 8 1/2”, 1 7/8” (O.D. body)
  • Transformer: Standardly fitted with LL2913 Lundahl Transformer



Includes: Fat Top II Brown Ribbon Microphone w/Lundahl, Deluxe Shockmount, Carrying Pouch, Alum. Case
