From Pinnacle Microphones

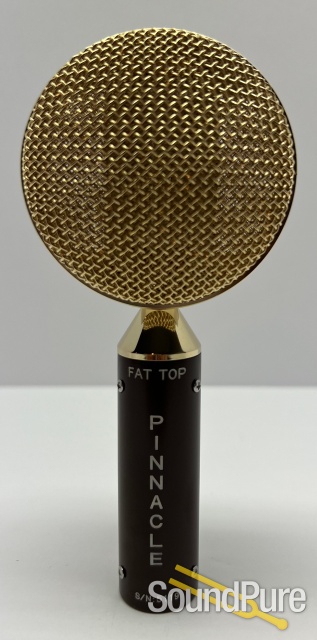

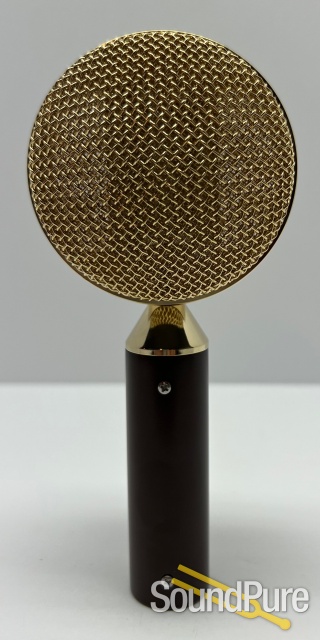

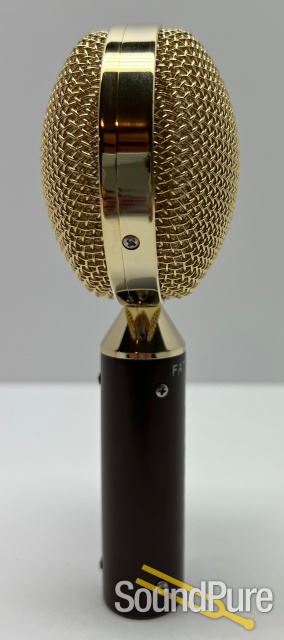

The Fat Top is a short ribbon passive microphone that delivers a warm, rich, fat, rounded tone. The bi-directional polar pattern picks up sound essentially equally from both faces with a large null between faces ideal for isolating sound sources. Best suited for guitar cabinets, piano, brass and percussion instruments. Can be used in pairs in a Blumlein set up to pick up the entire room.
- Type
- Ribbon (velocity) Microphone
- Ribbon Type & Dimensions
- 99.99% Pure Aluminum, 2.5 microns, 1 3/4” (L) X 3/16” (W)
- Polar Pattern
- Symmetrical Figure 8
- Sensitivity
- -49.2 dB (3.5 (mV/Pa)
- Frequency Response
- 30 to 15 KHz (+/- 3dB)
- Impedance
- <=200 Ohms
- Recommended Load Impedance
- 1000 Ohms
- Max.SPL (1% THD @1000 Hz)
- 135 dB
- Equivalent Noise Level
- to IEC 268-4 (A weighted) 17dB
- S/N ratio
- re 1Pa: 70 dB
- Connector
- 3-Pin Male XLR
- Size
- Diameter: 3” (O.D. grill), overall length 6 1/2”, 7/8” (O.D. body)
- Includes

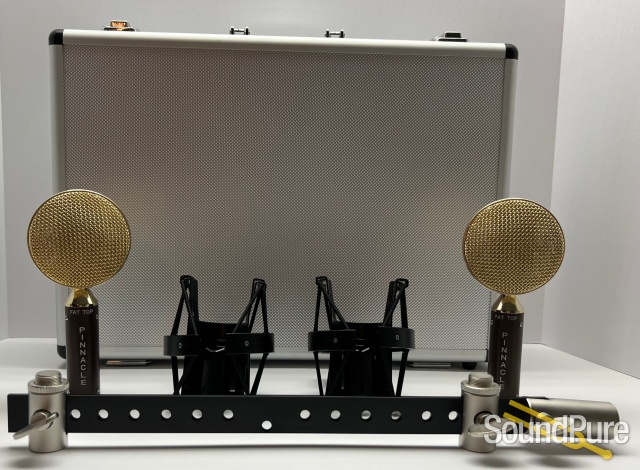

- (2) Fat Top Black Ribbon Microphone, (2) Shock Mounts, (1) Blumlein Bar, (1) Alum. Case
Free 3-Year Warranty
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free Sound Pure 3-Year Warranty, which includes parts and labor. It's our way of adding real value to the personal touch our small, dedicated team brings to every purchase.
Coverage exclusions live in Terms & Conditions, Section 27. Read the warranty →
