Sound Pure's Take

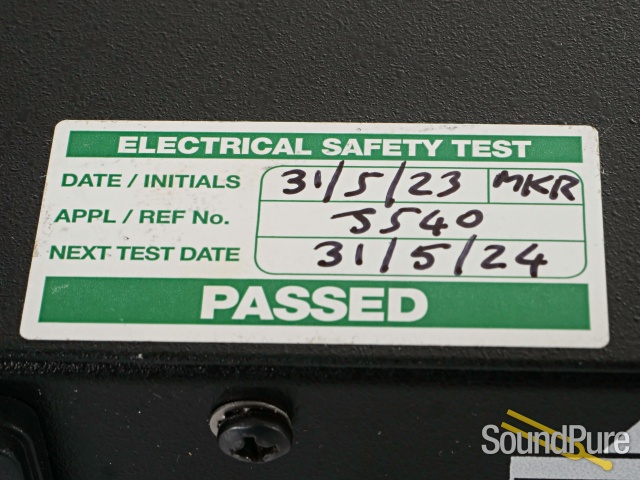

This unit has some cosmetic scratches on the face plate from being racked. It has been tested and is fully fuctional.
From Pendulum Audio

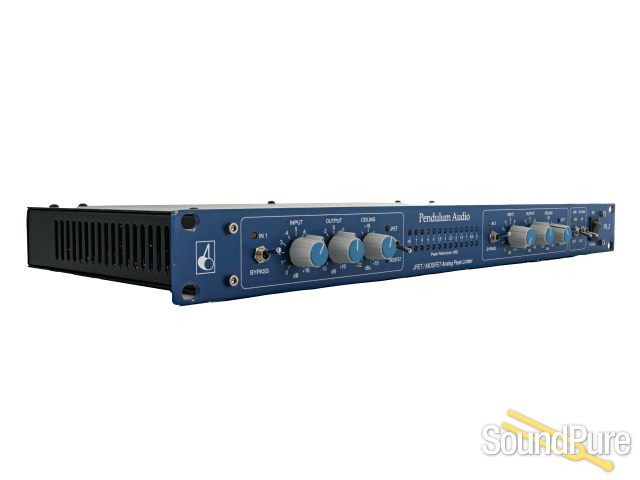

The PL-2 is a stand-alone two channel version of the very popular peak limiter in our Quartet II Tube Recording Channel. It uses a novel approach to brickwall limiting in the analog domain, one that is fast enough to prevent digital overs without using time delay or phase-shift delay techniques. This allows us to keep the analog signal path short, and keep the limiting circuit 'switched out' of the signal path below the peak limiting threshold. Distortion for all levels below the the limiting threshold is low, and does not rise as the threshold for limiting is approached. Unlike analog peak clippers, which chop off the top and bottom of the waveform, our limiter retains dynamic information at the top of the peak.
The PL-2 has two modes of peak limiting, using either junction field-effect transistors (JFET) or metal-oxide semiconductor field effect transistors (MOSFET) as the control elements. While both are equally capable of brickwall limiting, each type has its own characteristic sound. The JFET tends to be a stiffer, harder mode of limiting, while the MOSFET has a softer, more compliant response. The resulting waveforms look different, and each device has its own characteristic sound.
In addition, Input and Output gain controls allow the user to scale the gain structure for a wide range of applications, from driving the front end of an A/D converter at +22 dBu, to inserting it as an effect into a +4 dBu patch bay. Several units can be linked for multi-channel applications.
Each channel also has an expanded 13 segment LED display which accurately indicates peak reduction.
Fast Features
- JFET (hard) or MOSFET (soft) peak limiting modes
- Two independent channels with stereo link
- Precise readout of peak reduction
- Stepped input and output controls
- Ideal for mastering or session recall
- Limiter circuit out of the signal path when below threshold
- Transformerless Class A solid-state design
- Handcrafted in the USA
- Input Sensitivity
- +4dBu
- Input Impedance
- 20Kohm
- Input Gain
- 0 to +10dB in 1dB steps
- Freq. Response
- -1.0dB 5Hz and 80kHz
- Noise
- >90dB below +4dBu
- Distortion
- less than 0.03% THD+N, 20Hz to 20kHz, at all signal levels below limiter threshold
- Output Impedance
- 300ohm
- Output Gain
- -10 to +10dB in 2dB steps
- Max. Output Level
- +27dBu
- Polarity

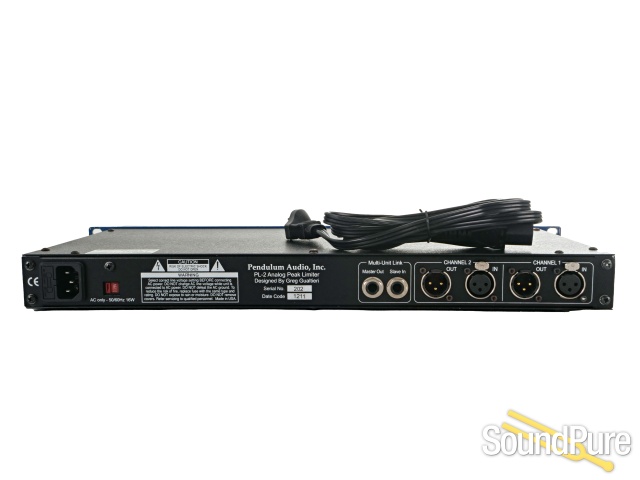

- input and output XLR connectors are pin 2 hot
- Display
- 13 segment LED ladder from 0 to -8dB
- Power
- 120V or 240Vac, 16W
- Power Supplies
- ± 18Vdc, +15Vdc, +12Vdc, fully regulated
Dimensions
- 1U Enclosure
- 19" x 1.75" x 8.0" (48.2 x 4.4 x 20.32 cm)
- Weight
- 6.7 lb. (3.1kg)
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Not eligible for Try Before You Buy or the 48-hour approval period. Standard return policy applies — see Terms & Conditions, Section 18 for details.
