From NPNG

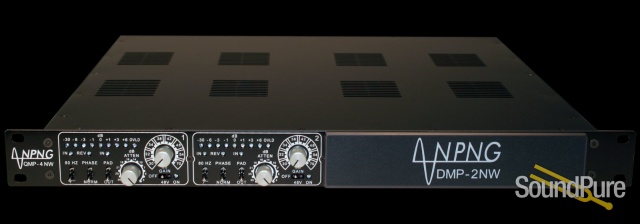

From NPNG - "NPNG's mission is to create new and exciting devices for use in the recording studio. Our criteria for design is based only on usability, sound and reliability. We believe your ears are the most sensitive “test” gear on the planet. The actual "bench specifications" for the unit are comparable to any of the best pre-amps built by any manufacturer at any time in history, the difference being that we spent more time listening to music than chasing the best specifications on the planet.
NPNG started building Mic Pre-Amps in 1995. Virtually all of the original units are still in use today. The occasional service requests we get are all related to mechanical damage. The circuits are robust and reliable. Built with the finest components available, the QMP4 [and soon to be arriving DMP2 two channel pre-amp] will yield many years of trouble free use. Let's face it, if a pre-amp isn't able to work 24/7/365 then it is of little use to anyone so ours are made to be bulletproof."

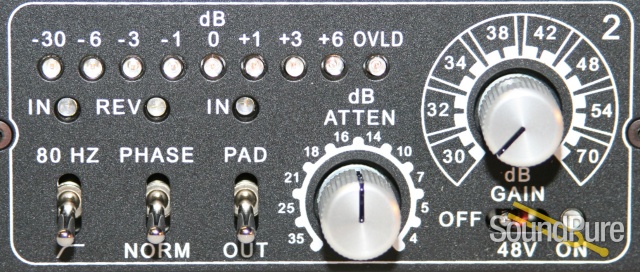

Architecture:
- 2 Discrete 13 Transistor Class A Op Amp Stages Per Chan.
- Discrete* 7 Transistor Front End
- Min. Gain 30dB, Max Gain 74dB
- Input Attenuation Variable -4 to -40dB Range(to produce “0” VU)
- Transformerless Balanced Inputs
- Transformer Balanced Outputs
- PPM Meter Ballistics
- Phase Reverse on Front End
Typical Performance:
- EIN Better Than -127dB 20Hz-20kHz @ 40db Gain Unwieghted
- Odd Order Harmonic Distortion @ +40dB Gain / 400Hz: +4dBu to + 23.8 dBu Below .001%
- Residual Noise below -89dB 20Hz to 20kHz @ 30dB Gain
- Onset of clipping +24.4dBu
- Input Impedance 5K Balanced
- Output Impedance 600 Ohm Balanced
- Interchannel Crosstalk below 90 dB 20-20kHz.
Free 3-Year Warranty
Sound Pure stands behind our products. Free three-year warranty on this item. Coverage exclusions live in Terms & Conditions, Section 27.
Level of support and expertise that simply isn't available at big-box megastores. Read the warranty →
Returns
This item is not eligible for the Try-Before-You-Buy 48-hour audition. Standard return policy applies — see Terms & Conditions, Section 18 for details.
