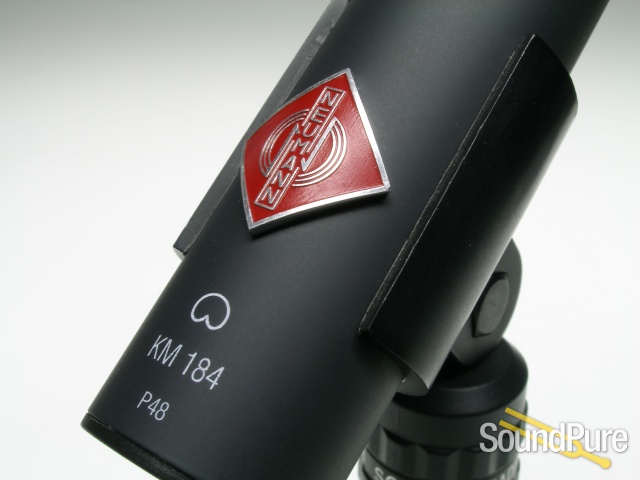

Neumann SKM 184 Stereo Mic Set (Black Matte)  From Neumann

Stereo pair of cardioid small diaphragm microphone with a warm sound and a Big Name, the 184 is one of the most sought after SDC’s on the market today.

Neumann USA

$1,599.00

Retail:  $2,198.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $36/mo.

Neumann KM 184 Small Diaphragm Condenser Mic Demo

The Neumann KM 184 microphone is one of the most well known and commonly used small diaphragm condenser microphones out there. Due to it's incredibly rich and full-bodied tone, the 184 is an excellent choice for any typical small diaphragm condenser application. David Barrett, a member of Sound Pure's Pro Audio team, goes into further detail and showcases how a pair of KM 184s sound on our favorite 184 application - acoustic guitar! The KM 184 is also eligible for Sound Pure's free try-before-you-buy demo program, which allows you to hear the mics first hand in your studio with your gear. If you'd like to set up a demo period or have any other questions about the Neumann KM 184 or any other microphone give us a call at anytime! 919-682.5552. or 888.528.9703.

Manufacturer's Description from Neumann

The "Series 180" consists of three compact miniature microphones with patterns that satisfy the demands of all common studio applications.

Because of its optimized mechanical construction and conscious omission of modularity, which is unnecessary in many cases, the "Series 180" is predestined for economy-minded production and home recording studios.

The KM 183 omnidirectional and KM 185 hypercardioid microphones are based on the tremendously successful KM 184 cardioid microphone, which has become a standard within the global studio community in just a very short time. All "Series 180" microphones are available with either matte black or nickel finish.

Applications

Their slender shapes and the transmission characteristics described below make the "Series 180" especially suitable for a very wide range of tasks in the radio and television sector.

Acoustic features

The KM 183 and KM 184 microphones are the successors of the well proven KM 83 and KM 84, which have been used since the seventies worldwide with great success. The KM 185 rounds out the series with a hypercardioid microphone.

The KM 183 is a pressure transducer with a boost of approximately 7 dB at 10 kHz in the free field. In the diffuse sound field it has a flat frequency response. The pressure gradient transducers KM 184 and KM 185 feature very smooth frequency responses not only for the 0° axis, but also for lateral (off-axis) sound incidence. In typical usage, there is no coloration of sound over a wide pickup angle.

Although the KM 184 has the same capsule as the KM 84, the microphone differs slightly on the 0° frequency response: The KM 184 has a gentle rise at about 9 kHz, a characteristic that was introduced very successfully with the KM 140. The result is a tonal balance that is fresher and livelier when compared to the KM 84 with its flat frequency response in that band.

This difference was achieved with just a slight change of the capsule’s rear opening, and is not due to resonances.

The KM 185 with its hypercardioid characteristic features attenuation of sound incidence from the side or rear of about 10 dB, with minimum sensitivity at an angle of 120°.

Electrical features

The "Series 180" microphones have the same transformerless circuitry as is used in the KM 100 system, resulting in excellent technical specifications:

Compared to the KM 84 the dynamic range of the KM 184 increased by 24 dB mainly through the reduction of self-noise level to only 22 dB (CCIR) and an increased sound pressure handlingcapability of up to 138 dB.

The microphones operate without any problems, even if the input of following equipment happens to be unbalanced, for example as in some DAT recorders.

The output of the "Series 180", as in all Neumann microphones, is balanced and phantom (48V) powered.

Economy

The "Series 180" is a good choice for all users who look for a high-quality miniature microphone, but do not need the complex, modular KM 100 system, which continues to be part of the Neumann product range.

The mechanical construction was simplified, for example, capsule and output stage cannot be separated from each other. For this reason the "Series 180" is an economical alternative without giving up the electroacoustic features the users expect from Neumann microphones.



Three different miniature microphones for all typical studio applications

Successor of the worldwide successful KM 83/84

Transformerless circuitry

Neumann USA

About Manufacturer

Specializing in some of the finest microphones in the world, Neumann has develpoed a top name in the industry for consistency, reliability, and sonic excellence. With microphones suited for the entire range of studio recording (and more recently live application), Neumann microphones are often a first choice for uncompromised acoustic reproduction.

Specifications



KM 183 / 184 / 185

Acoustical operating principle

Pressure/Pressure gradient transducer

Directional pattern

omnidirectional/cardioid/hypercardioid

Frequency range

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm

12/15/10 mV/Pa

Rated impedance

50 ohms

Rated load impedance

1 kohms

Equivalent noise level, CCIR1)

24/22/24 dB

Equivalent noise level, A-weighted1)

13/13/15 dB-A

Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL)

70/72/70 dB

Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL)

81/81/79 dB

Maximum SPL for THD 0.5%2)

140/138/142 dB

Maximum output voltage

10 dBu

Supply voltage (P48, IEC 61938)

48 V ± 4 V

Current consumption (P48, IEC 61938)

3.2 mA

Matching connectors

XLR 3F

Weight

approx. 80 g

Diameter

22 mm

Length

107 mm


______________________________________________
1) according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
2) measured as equivalent el. input signal
